Product series

MODUS SPMP

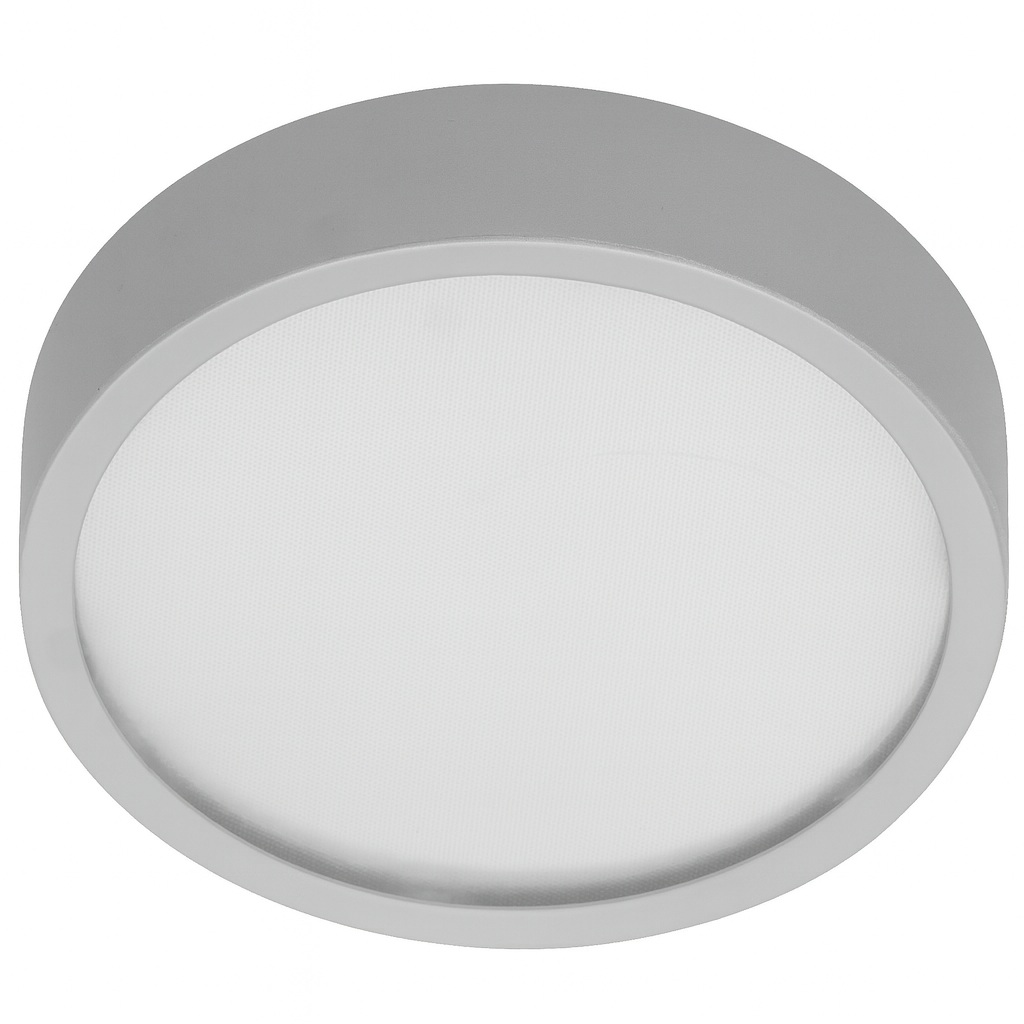

Surfaced round LED fitting

MODUS SPMP 370
MODUS SPMP 190MODUS SPMP 190
MODUS SPMP 370MODUS SPMP 370
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

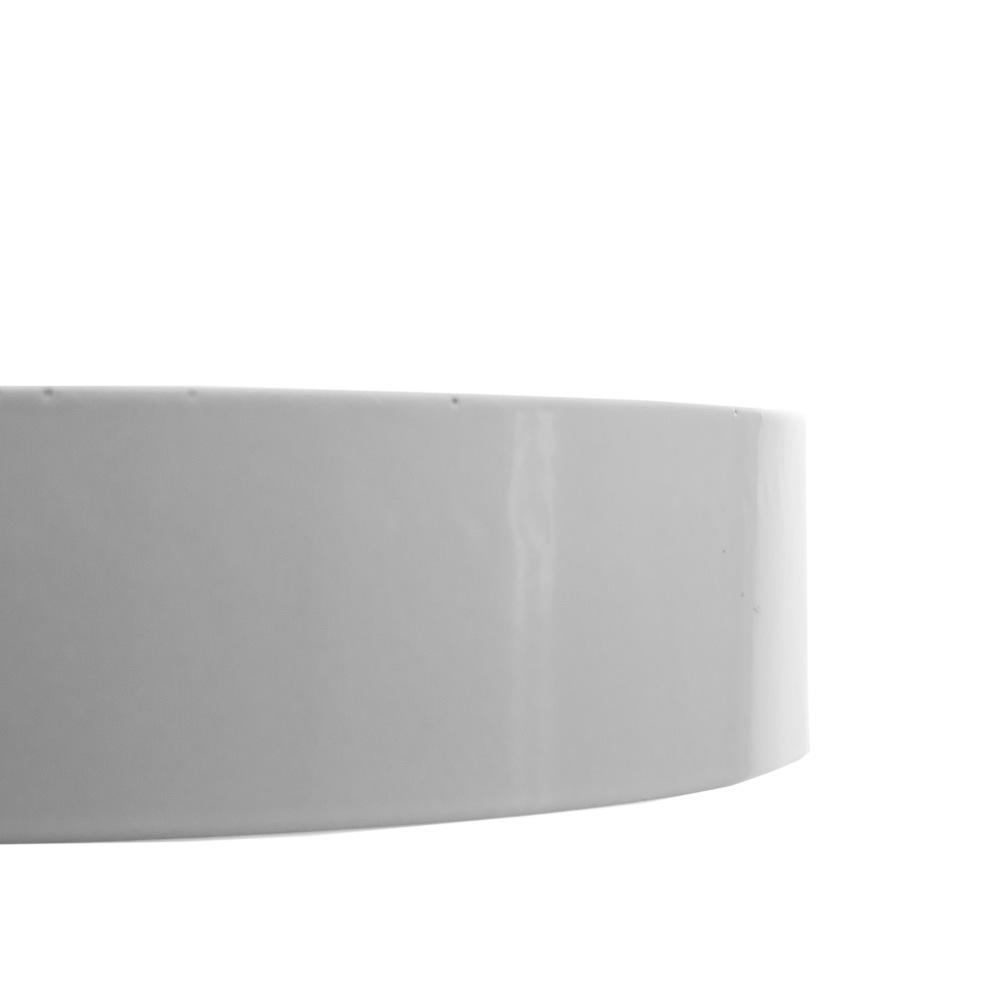

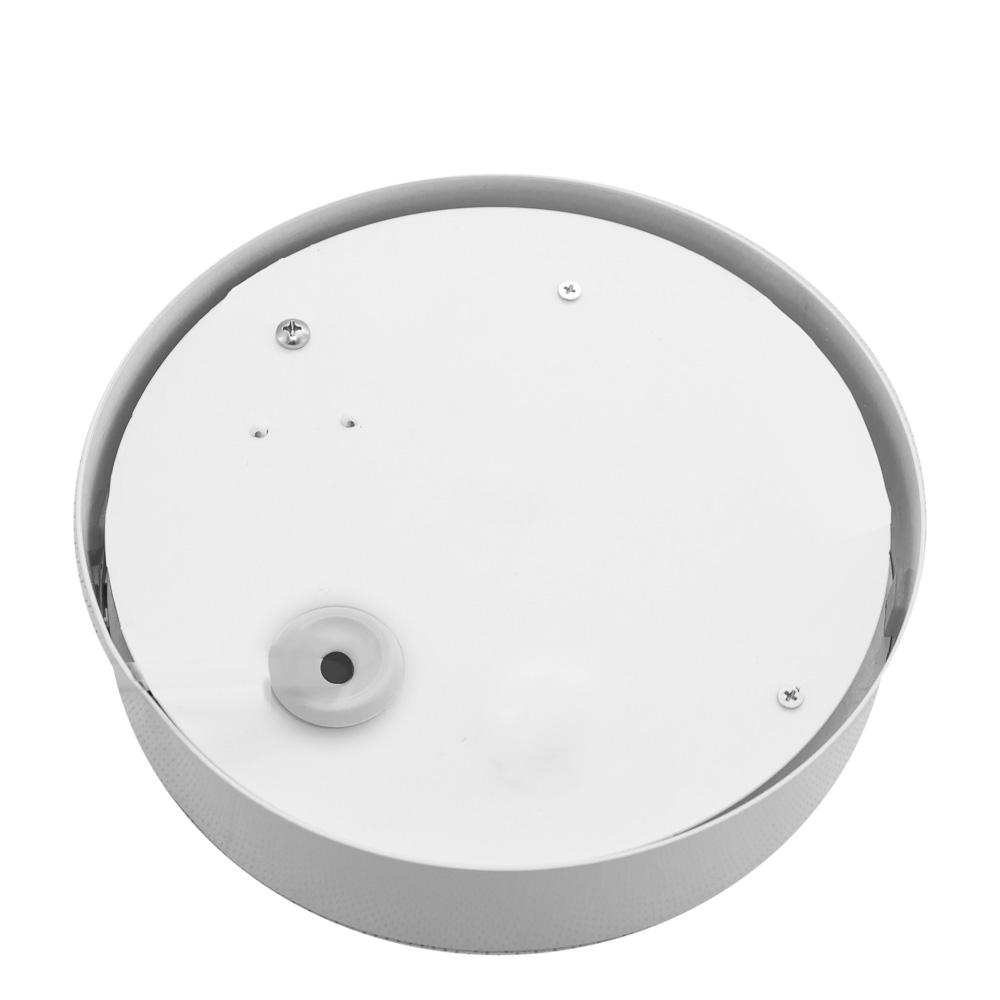

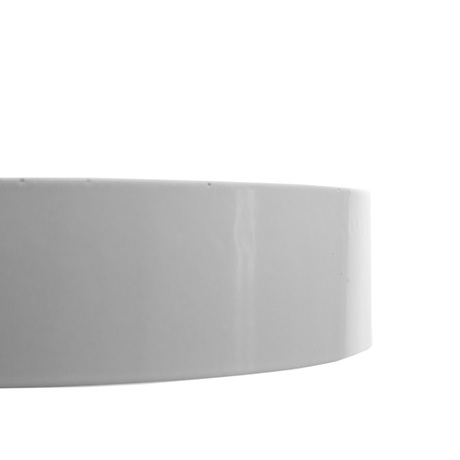

Body:

White painted (RAL 9003) metal sheet

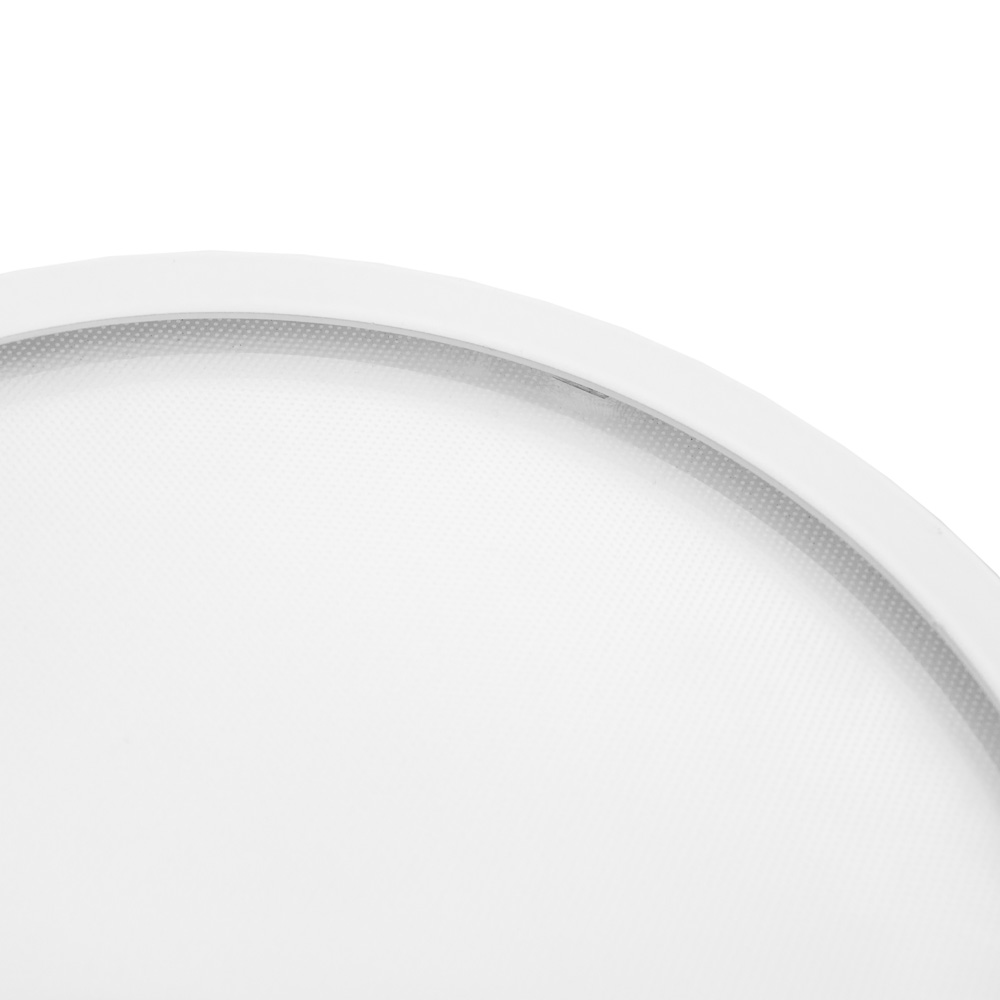

Optical system:

KN - nanoprisma cover

KO - opal cover





LED:

Mid Power LED

CRI 80 (CRI 90 on request)

2... light temp. 2700K

3...light temp.3000K

4...light temp. 4000K

5... light temp. 5700K

6... light temp. 6700K





Wiring:

LED driver (constant current)

ND – not dimmable (standard)

DALI – digital dimmable DALI

DIM - analogue dimmable 1-10V

Body material:White painted steelMounting method:Surface mounting
Protection class:IIType of control gear:LED operating device current-controlled
Color rendering index CRI:80-89, 90-100Light source type:LED
Nominal voltage (V):220...240Degree of protection (IP):IP40
Color temperature (K):4000, 3000, 2700, 5700Rated lifetime L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes
Optical system:KN
nanoprizmatic cover
Made in Czech republic:Yes
Without Chinese components:AnoReplaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1000
4500
Product name
SPMP1000KN2/190/ND/90
Effective luminous flux (lm): 950
Color temperature (K): 2700
Outer diameter (mm): 190
SPMP1000KN3/190/DALI
Effective luminous flux (lm): 1050
Color temperature (K): 3000
Outer diameter (mm): 190
SPMP1000KN3/190/DALI/7016
Effective luminous flux (lm): 1050
Color temperature (K): 3000
Outer diameter (mm): 190
SPMP1000KN3/190/DALI/9005
Effective luminous flux (lm): 1050
Color temperature (K): 3000
Outer diameter (mm): 190
SPMP1000KN3/190/ND
Effective luminous flux (lm): 1050
Color temperature (K): 3000
Outer diameter (mm): 190
SPMP1000KN3/190/ND/9005
Effective luminous flux (lm): 1050
Color temperature (K): 3000
Outer diameter (mm): 190
SPMP1000KN4/190/ND
Effective luminous flux (lm): 1050
Color temperature (K): 4000
Outer diameter (mm): 190
SPMP1000KN4/190/ND/90
Effective luminous flux (lm): 1000
Color temperature (K): 4000
Outer diameter (mm): 190
SPMP1500KN2/190/ND
Effective luminous flux (lm): 1450
Color temperature (K): 2700
Outer diameter (mm): 190
SPMP1500KN2/190/ND/90/9005
Effective luminous flux (lm): 1300
Color temperature (K): 2700
Outer diameter (mm): 190
SPMP1500KN3/190/DALI/9005
Effective luminous flux (lm): 1450
Color temperature (K): 3000
Outer diameter (mm): 190
SPMP1500KN3/190/ND
Effective luminous flux (lm): 1450
Color temperature (K): 3000
Outer diameter (mm): 190
SPMP1500KN3/190/ND/90
Effective luminous flux (lm): 1300
Color temperature (K): 3000
Outer diameter (mm): 190
SPMP1500KN3/190/ND/9005
Effective luminous flux (lm): 1450
Color temperature (K): 3000
Outer diameter (mm): 190
SPMP1500KN4/190/DALI
Effective luminous flux (lm): 1450
Color temperature (K): 4000
Outer diameter (mm): 190
SPMP1500KN4/190/ND
Effective luminous flux (lm): 1450
Color temperature (K): 4000
Outer diameter (mm): 190
SPMP1500KN4/190/ND/9005
Effective luminous flux (lm): 1450
Color temperature (K): 4000
Outer diameter (mm): 190
SPMP1500KO3/190/ND
Effective luminous flux (lm): 1450
Color temperature (K): 3000
Outer diameter (mm): 190
SPMP1500KO4/190/ND
Effective luminous flux (lm): 1450
Color temperature (K): 4000
Outer diameter (mm): 190
SPMP2000KN3/190/DALI
Effective luminous flux (lm): 1950
Color temperature (K): 3000
Outer diameter (mm): 190
SPMP2000KN3/190/ND
Effective luminous flux (lm): 1950
Color temperature (K): 3000
Outer diameter (mm): 190
SPMP2000KN3/370/DALI
Effective luminous flux (lm): 1900
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP2000KN3/370/DALI/9005
Effective luminous flux (lm): 1900
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP2000KN3/370/ND
Effective luminous flux (lm): 1900
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP2000KN4/190/DALI
Effective luminous flux (lm): 1950
Color temperature (K): 4000
Outer diameter (mm): 190
SPMP2000KN4/190/DALI/9006
Effective luminous flux (lm): 1950
Color temperature (K): 4000
Outer diameter (mm): 190
SPMP2000KN4/190/ND
Effective luminous flux (lm): 1950
Color temperature (K): 4000
Outer diameter (mm): 190
SPMP2000KN4/190/ND/90
Effective luminous flux (lm): 1550
Color temperature (K): 4000
Outer diameter (mm): 190
SPMP2000KN4/190/ND/9005
Effective luminous flux (lm): 1950
Color temperature (K): 4000
Outer diameter (mm): 190
SPMP2000KO3/190/DALI
Effective luminous flux (lm): 1950
Color temperature (K): 3000
Outer diameter (mm): 190
SPMP2000KO3/190/ND
Effective luminous flux (lm): 1950
Color temperature (K): 3000
Outer diameter (mm): 190
SPMP2000KO3/190/ND/9006
Effective luminous flux (lm): 1950
Color temperature (K): 3000
Outer diameter (mm): 190
SPMP2000KO3/190/ND/PIR/9006
Effective luminous flux (lm): 1950
Color temperature (K): 3000
Outer diameter (mm): 190
SPMP2000KO3/370/ND
Effective luminous flux (lm): 2000
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP2000KO4/190/DALI
Effective luminous flux (lm): 1950
Color temperature (K): 4000
Outer diameter (mm): 190
SPMP2000KO4/190/DALI/9006
Effective luminous flux (lm): 1950
Color temperature (K): 4000
Outer diameter (mm): 190
SPMP2000KO4/190/ND
Effective luminous flux (lm): 1950
Color temperature (K): 4000
Outer diameter (mm): 190
SPMP3000KN2/370/ND
Effective luminous flux (lm): 3000
Color temperature (K): 2700
Outer diameter (mm): 370
SPMP3000KN3/370/DALI
Effective luminous flux (lm): 3000
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP3000KN3/370/DALI/9005
Effective luminous flux (lm): 2600
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP3000KN3/370/DALI/S54
Effective luminous flux (lm): 3000
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP3000KN3/370/DALINZ
Effective luminous flux (lm): 3000
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP3000KN3/370/DALIT
Effective luminous flux (lm): 3000
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP3000KN3/370/ND
Effective luminous flux (lm): 3000
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP3000KN3/370/ND/90
Effective luminous flux (lm): 2250
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP3000KN3/370/ND/9005
Effective luminous flux (lm): 3000
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP3000KN3/370/ND/PIR
Effective luminous flux (lm): 3000
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP3000KN3/370/NDMULTI
Effective luminous flux (lm): 3200
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP3000KN3/370/NDNZ
Effective luminous flux (lm): 3000
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP3000KN3/370/NDNZ/PIR
Effective luminous flux (lm): 3000
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP3000KN4/370/DALI
Effective luminous flux (lm): 3000
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP3000KN4/370/DALI/9005
Effective luminous flux (lm): 2600
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP3000KN4/370/DALIT
Effective luminous flux (lm): 3000
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP3000KN4/370/ND
Effective luminous flux (lm): 3000
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP3000KN4/370/ND/90
Effective luminous flux (lm): 2600
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP3000KN4/370/ND/9005
Effective luminous flux (lm): 3000
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP3000KN4/370/ND/9006
Effective luminous flux (lm): 3000
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP3000KN4/370/ND/PIR
Effective luminous flux (lm): 3000
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP3000KN4/370/ND/S65
Effective luminous flux (lm): 3000
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP3000KN4/370/NDNZ
Effective luminous flux (lm): 3000
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP3000KN5/370/ND
Effective luminous flux (lm): 3000
Color temperature (K): 5700
Outer diameter (mm): 370
SPMP3000KO3/370/ND/9005
Effective luminous flux (lm): 3000
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP3000KO3/370/NDMULTI
Effective luminous flux (lm): 3100
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP3000KO4/370/DALI
Effective luminous flux (lm): 3000
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP3000KO4/370/ND
Effective luminous flux (lm): 3000
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP3000KO4/370/ND/9005
Effective luminous flux (lm): 3000
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP3000KO4/370/ND/9006
Effective luminous flux (lm): 3000
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP3000KO4/370/ND/PIR
Effective luminous flux (lm): 3000
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP3000KO4/370/NDNZ
Effective luminous flux (lm): 3000
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP3KN190V1/500ND
SPMP3KO190V1/350ND
SPMP4000KN3/370/DALI
Effective luminous flux (lm): 3800
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP4000KN3/370/DALINZ
Effective luminous flux (lm): 3800
SPMP4000KN3/370/ND
Effective luminous flux (lm): 3800
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP4000KN3/370/ND/90/EU
Effective luminous flux (lm): 2750
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP4000KN3/550/DALI
Effective luminous flux (lm): 3800
Color temperature (K): 3000
Outer diameter (mm): 550
SPMP4000KN3/550/ND
Effective luminous flux (lm): 3800
Color temperature (K): 3000
Outer diameter (mm): 550
SPMP4000KN3/550/ND/9005
Effective luminous flux (lm): 3800
Color temperature (K): 3000
Outer diameter (mm): 550
SPMP4000KN4/370/DALI
Effective luminous flux (lm): 3800
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP4000KN4/370/DALI/90
Effective luminous flux (lm): 3200
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP4000KN4/370/DALINZ
Effective luminous flux (lm): 3800
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP4000KN4/370/ND
Effective luminous flux (lm): 3800
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP4000KN4/370/NDNZ
Effective luminous flux (lm): 3800
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP4000KN4/550/DALI
Effective luminous flux (lm): 3800
Color temperature (K): 4000
Outer diameter (mm): 550
SPMP4000KN4/550/ND
Effective luminous flux (lm): 3800
Color temperature (K): 4000
Outer diameter (mm): 550
SPMP4000KN4/550/ND/90
Effective luminous flux (lm): 3250
Color temperature (K): 4000
Outer diameter (mm): 550
SPMP4000KN5/370/ND
Effective luminous flux (lm): 3800
Color temperature (K): 5700
Outer diameter (mm): 370
SPMP4000KN5/370/ND/S65
Effective luminous flux (lm): 3800
Color temperature (K): 5700
Outer diameter (mm): 370
SPMP4000KO3/370/DALI
Effective luminous flux (lm): 3800
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP4000KO3/370/ND
Effective luminous flux (lm): 3800
Color temperature (K): 3000
Outer diameter (mm): 370
SPMP4000KO3/550/DALI
Effective luminous flux (lm): 3800
Color temperature (K): 3000
Outer diameter (mm): 550
SPMP4000KO3/550/ND
Effective luminous flux (lm): 3800
Color temperature (K): 3000
Outer diameter (mm): 550
SPMP4000KO4/370/ND
Effective luminous flux (lm): 3800
Color temperature (K): 4000
Outer diameter (mm): 370
SPMP4KN190V1/350ND
SPMP4KN370V2/700ND
SPMP5000KN2/550/DALI
Effective luminous flux (lm): 4500
Color temperature (K): 2700
Outer diameter (mm): 550
SPMP5000KN3/550/DALI
Effective luminous flux (lm): 4500
Color temperature (K): 3000
Outer diameter (mm): 550
SPMP5000KN3/550/ND
Effective luminous flux (lm): 4500
Color temperature (K): 3000
Outer diameter (mm): 550
SPMP5000KN4/550/DALI/90
Effective luminous flux (lm): 3800
Color temperature (K): 4000
Outer diameter (mm): 550
SPMP5000KN4/550/ND
Effective luminous flux (lm): 4500
Color temperature (K): 4000
Outer diameter (mm): 550
SPMP5000KN4/550/ND/90
Effective luminous flux (lm): 3800
Color temperature (K): 4000
Outer diameter (mm): 550
SPMP5000KO4/550/ND
Effective luminous flux (lm): 4300
Color temperature (K): 4000
Outer diameter (mm): 550
Show all versions

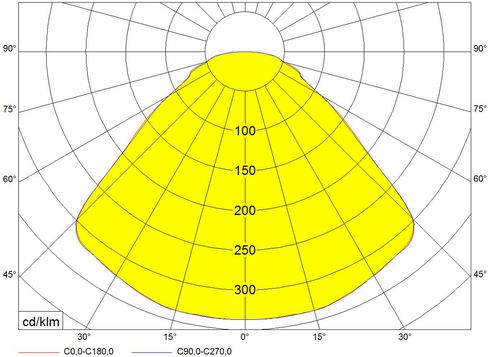

81_1 SPMP.JPG81_1 SPMP.JPG
20190626_Bibliotek 2-18.jpg

Holmestrand Library, Norway

MODUS BALOP, MODUS BALOV, MODUS SPMP

Detail reference
Zobrazit další reference
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
