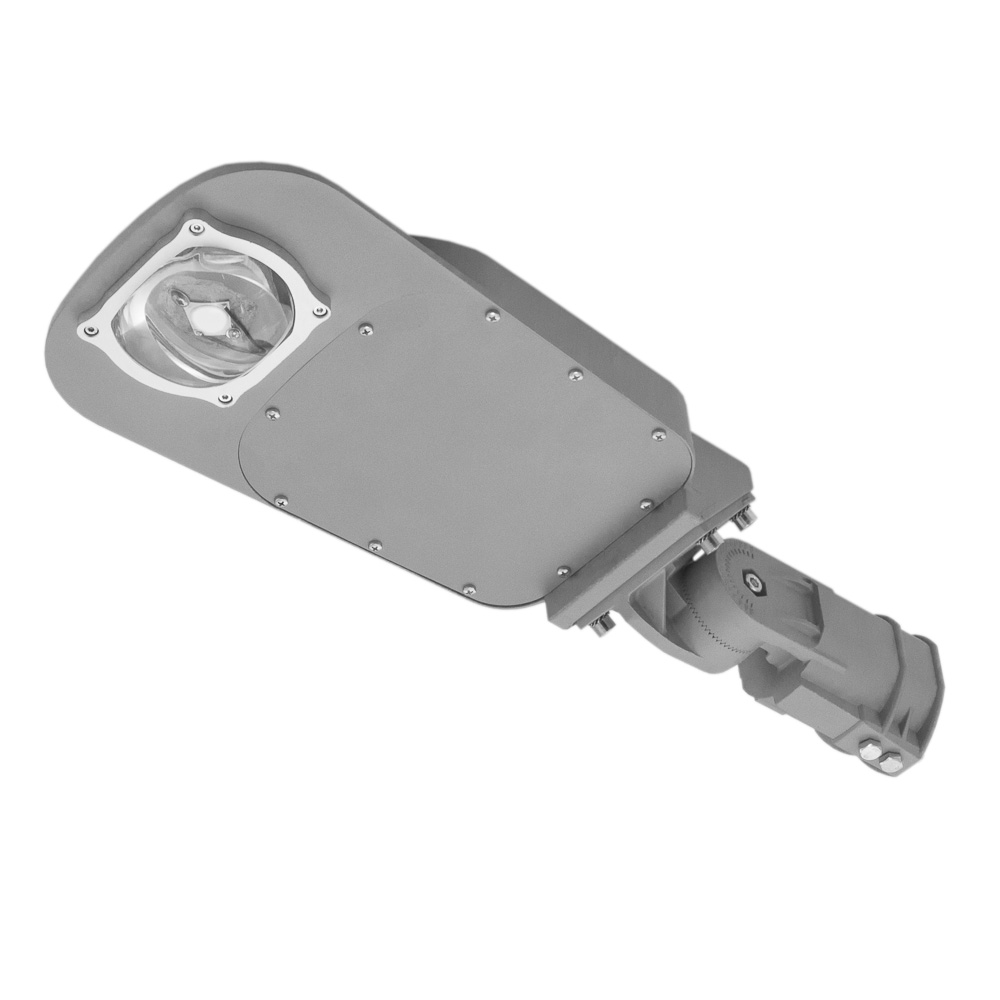

Product series
MODUS STL
Street lighting with COB technology
Standard price from:
On request
Body:
Polyester powder painted non-corressive high-pressure die-cast aluminium
LED:
COB CITIZEN
CRI 70
daylight 5000K
warm white 3000K
warm white 2700K
Wiring:
LED current driver
ND – not dimmable
4DIM – dimmable driver OSRAM 4DIM (possible to set automatical dimming by "fake midnight")
More information without about dimmable possibility you can see on special PDF in download section.
Application:
Mounting module is fixed to any post top 42 to 60 mm or side entry spigot from 42 to 60 mm.

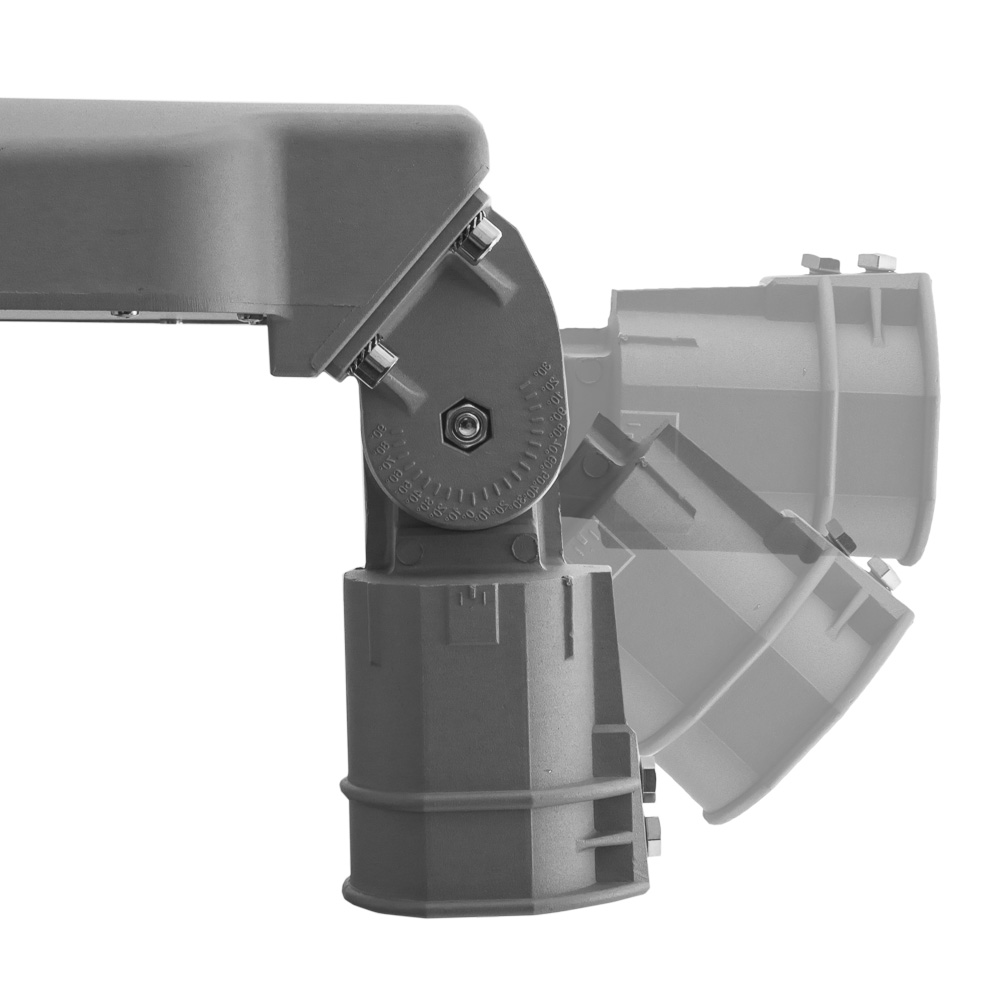

Adjusting angle from -30° to +90°.
Recommended height of installation 4 - 8 m.
| Body material: | Aluminium die-cast | Mounting method: | Side-entry, Post-top | Protection class: | II | Type of control gear: | LED operating device current-controlled | Color rendering index CRI: | 70-79 | Light source type: | LED | Nominal voltage (V): | 220...240 | Degree of protection (IP): | IP65 | Color temperature (K): | 4000, 3000, 5000 |

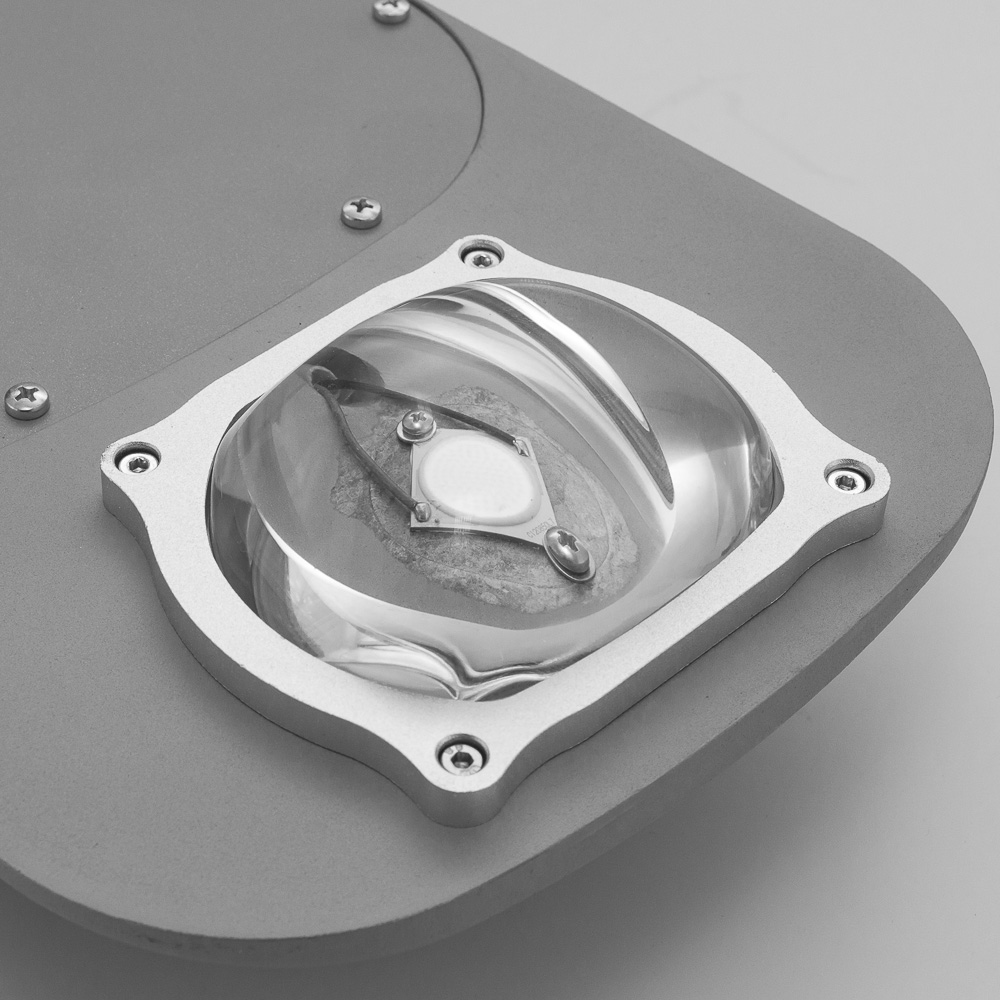

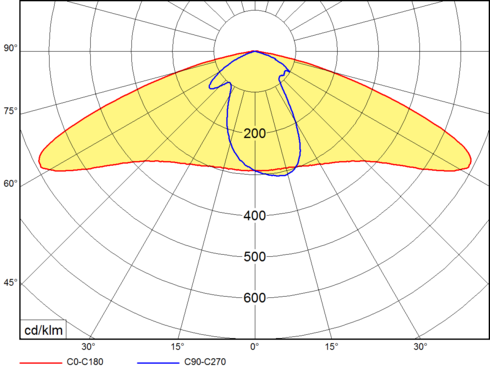

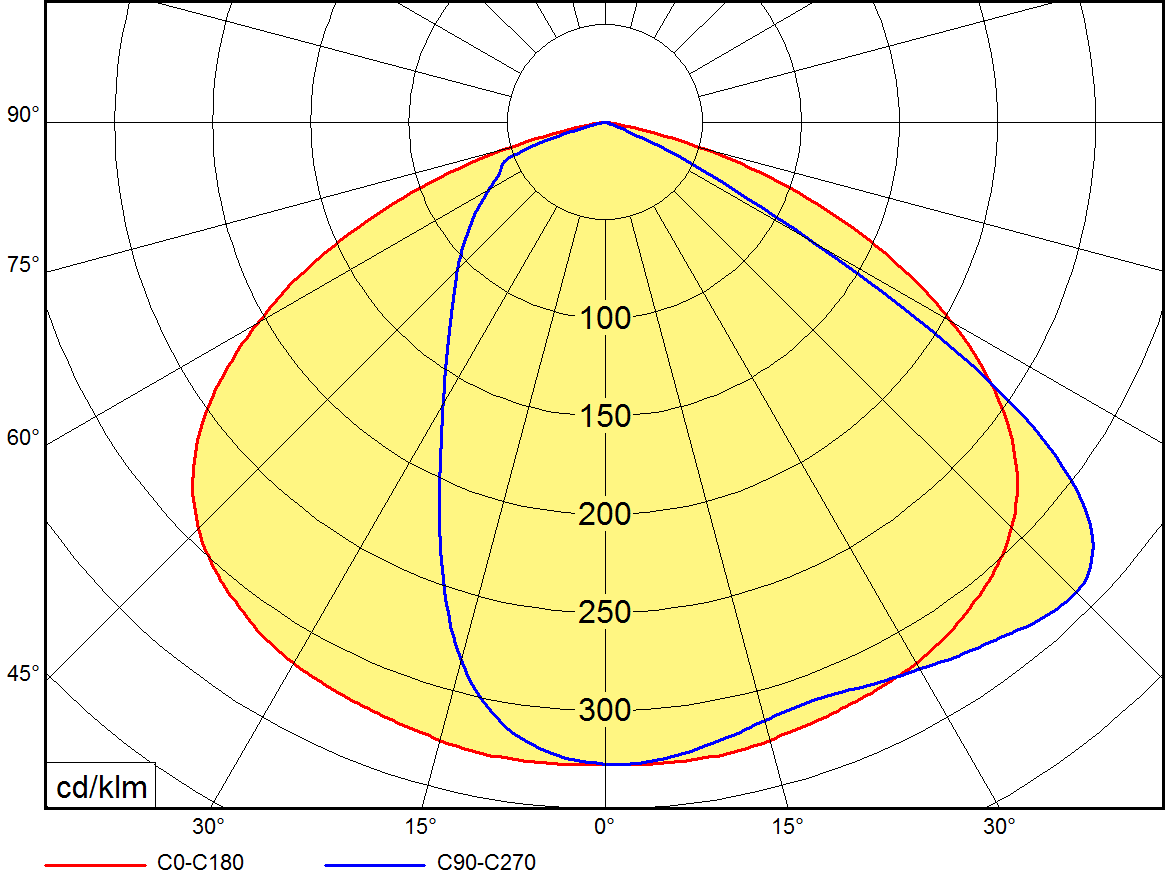

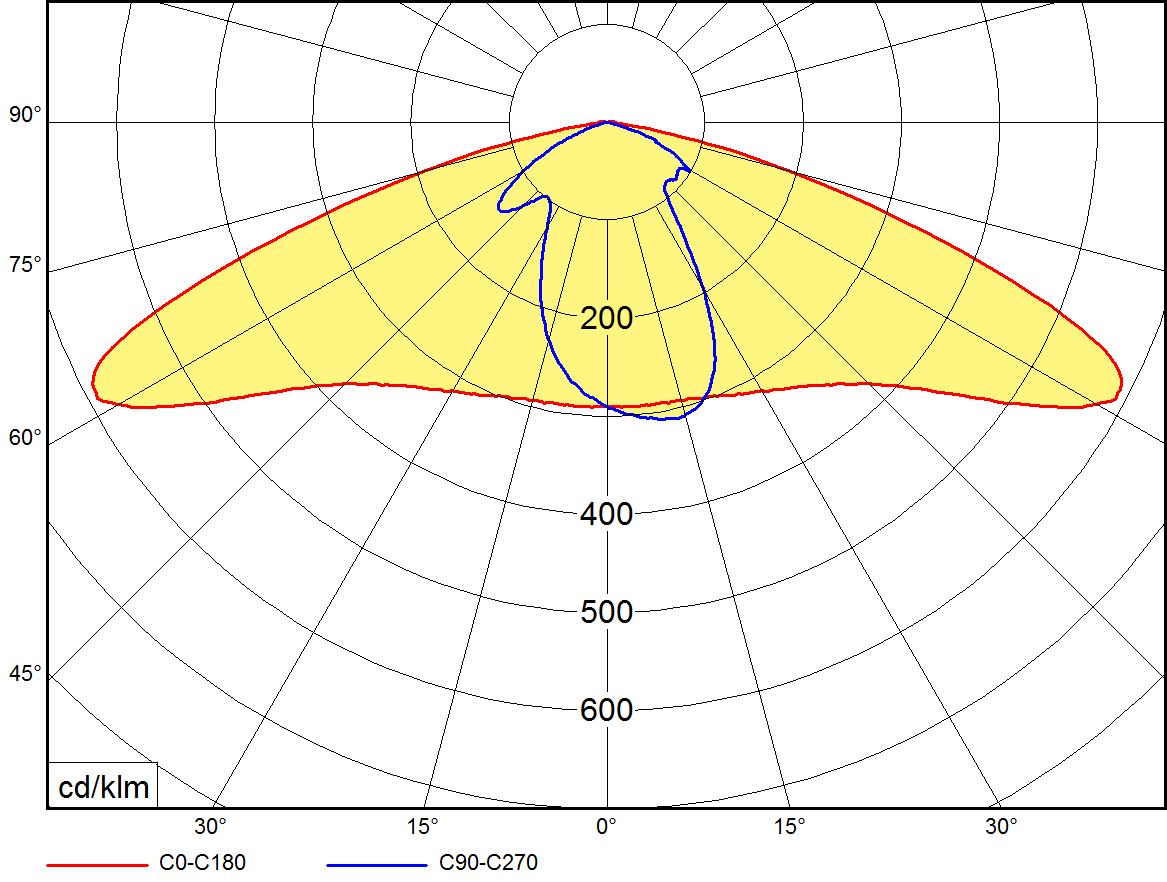

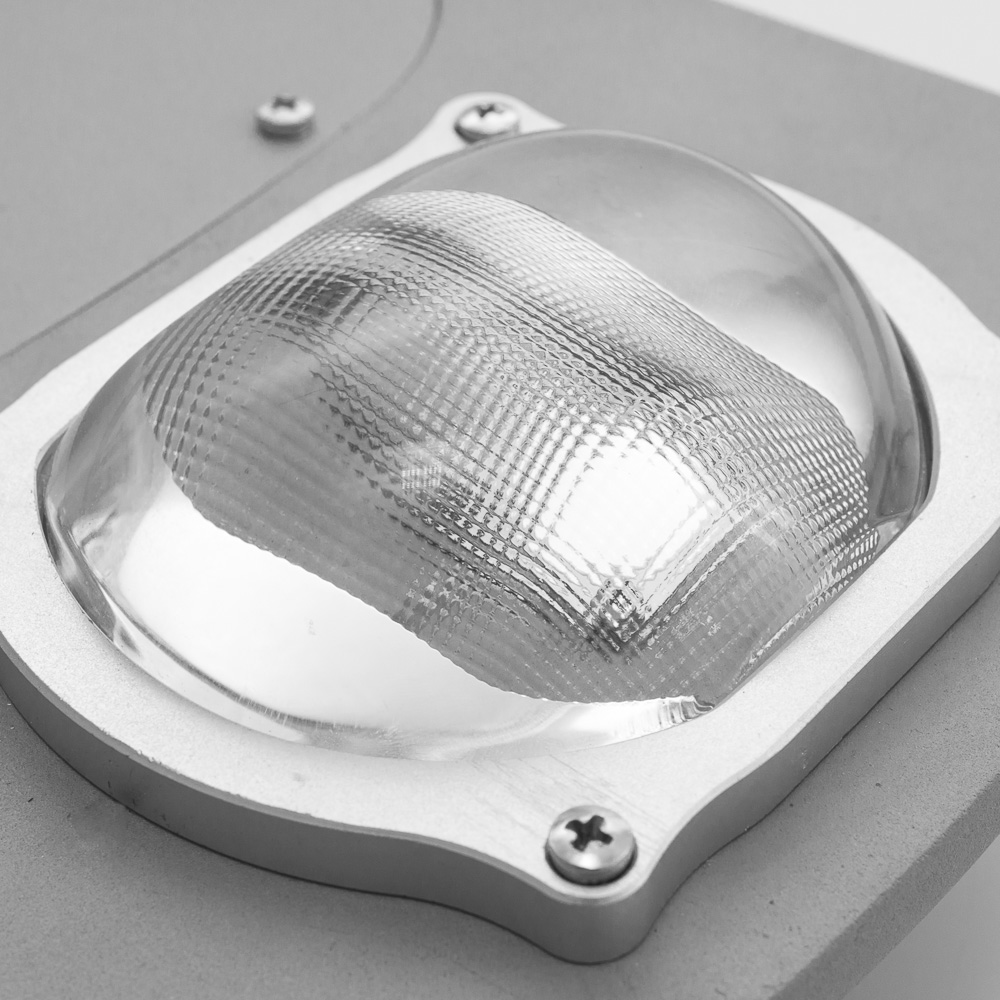

| Rated lifetime L70/B50 (h): | 100000 | Dimming DALI: | Yes | Product category: | Luminaire for streets and places | Optical system: | STL C skleněná asymetrická optika pro osvětlování komunikací STL P skleněná asymetrická optika pro osvětlování ploch | Made in Czech republic: | Yes | Without Chinese components: | Ano | Replaceability: | Replaceable light source by professional, replaceable ballast Replaceable light source by professional, replaceable ballast | Photobiological safety EN 62 471: | RG 0 |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
STL4000C/4DIM
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 5000
Optical system: STL C
STL4000C/4DIM/ASTRO
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 5000
Optical system: STL C
STL4000C/ND
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 5000
Optical system: STL C
STL4000C3/4DIM
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 3000
Optical system: STL C
STL4000C3/4DIM/ASTRO
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 3000
Optical system: STL P
STL4000C3/ND
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 3000
Optical system: STL C
STL4000P/4DIM
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 5000
Optical system: STL P
STL4000P/ND
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 5000
Optical system: STL P
STL4000P/ND/S129
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 5000
Optical system: STL P
STL4000P3/4DIM
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 3000
Optical system: STL P
STL4000P3/4DIM/7016
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 3000
Optical system: STL P
STL4000P3/ND
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 3000
Optical system: STL P
STL4000P3/ND/9005
Effective luminous flux (lm): 4000
System power (W): 27
Color temperature (K): 3000
Optical system: STL P
STL6000C/ND
Effective luminous flux (lm): 5600
System power (W): 39
Color temperature (K): 5000
Optical system: STL P
STL6000C3/4DIM
Effective luminous flux (lm): 5600
System power (W): 39
Color temperature (K): 3000
Optical system: STL P
STL6000C3/ND
Effective luminous flux (lm): 5600
System power (W): 39
Color temperature (K): 3000
Optical system: STL C
STL6000P/ND
Effective luminous flux (lm): 5600
System power (W): 39
Color temperature (K): 5000
Optical system: STL P
STL6000P3/4DIM
Effective luminous flux (lm): 5600
System power (W): 39
Color temperature (K): 3000
Optical system: STL P
STL6000P3/ND
Effective luminous flux (lm): 5600
System power (W): 39
Color temperature (K): 3000
Optical system: STL P
STL8000C/4DIM
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 5000
Optical system: STL C
STL8000C/ND
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 5000
Optical system: STL C
STL8000C/ND/5019
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 5000
Optical system: STL C
STL8000C3/4DIM
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 3000
Optical system: STL C
STL8000C3/ND
Effective luminous flux (lm): 8700
System power (W): 60
Color temperature (K): 3000
Optical system: STL C
STL8000P/ND
Effective luminous flux (lm): 8800
System power (W): 60
Color temperature (K): 5000
Optical system: STL P
STL8000P3/4DIM
Effective luminous flux (lm): 8800
System power (W): 60
Color temperature (K): 3000
Optical system: STL P
STL8000P3/ND
Effective luminous flux (lm): 8800
System power (W): 60
Color temperature (K): 3000
Optical system: STL P
