MODUS TELX

Industrial IP20 batten luminaire

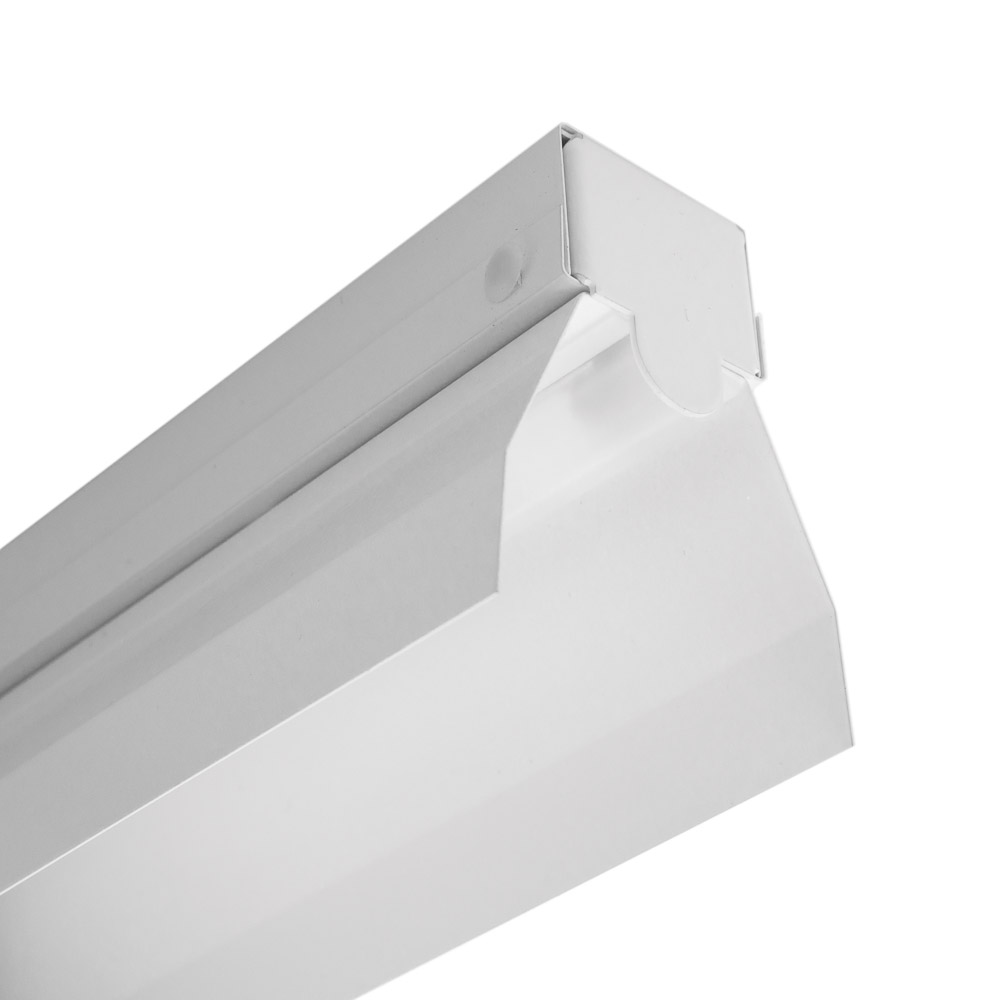

MODUS TELW - widebeam
MODUS TELMODUS TEL

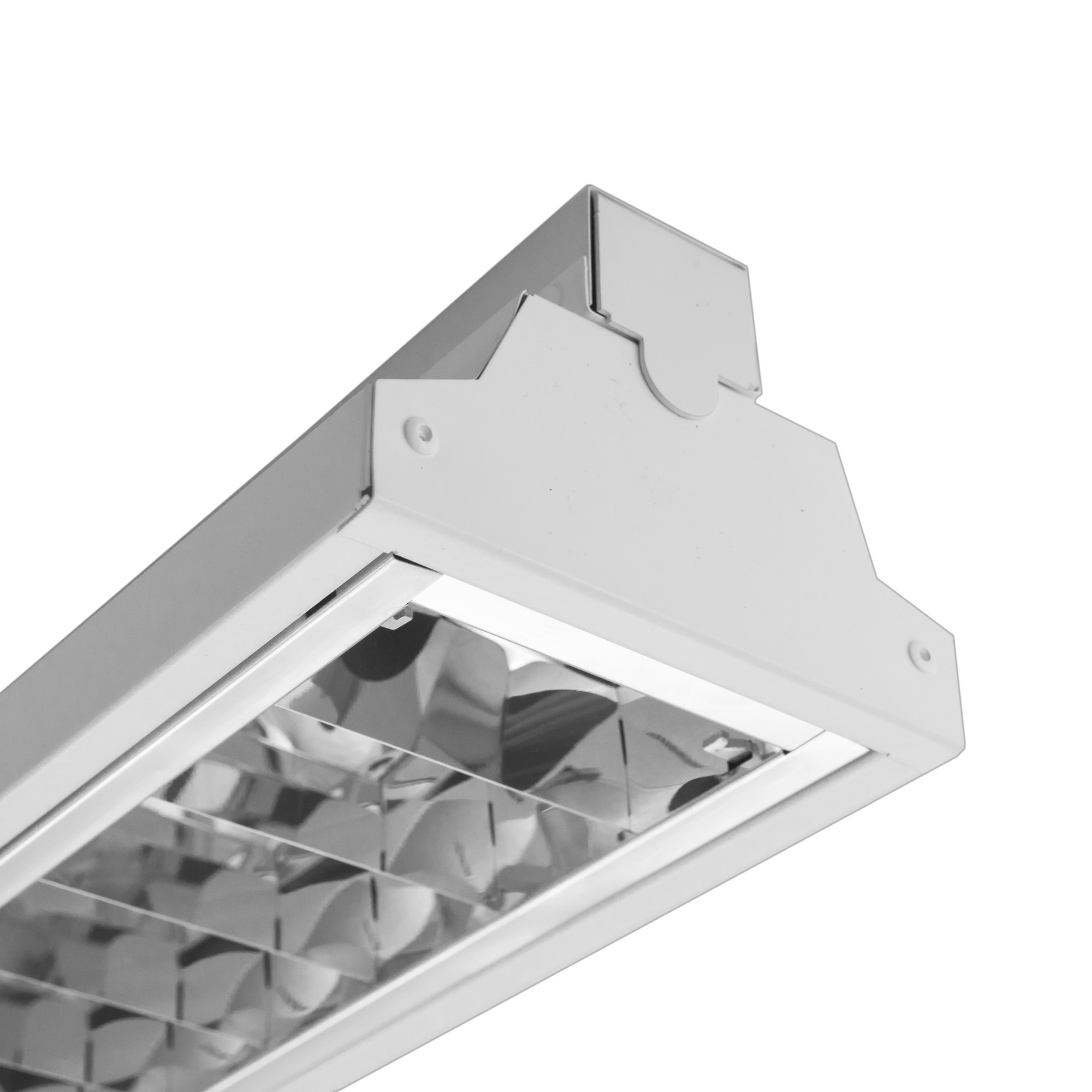

MODUS TEL DPMMODUS TEL DPM

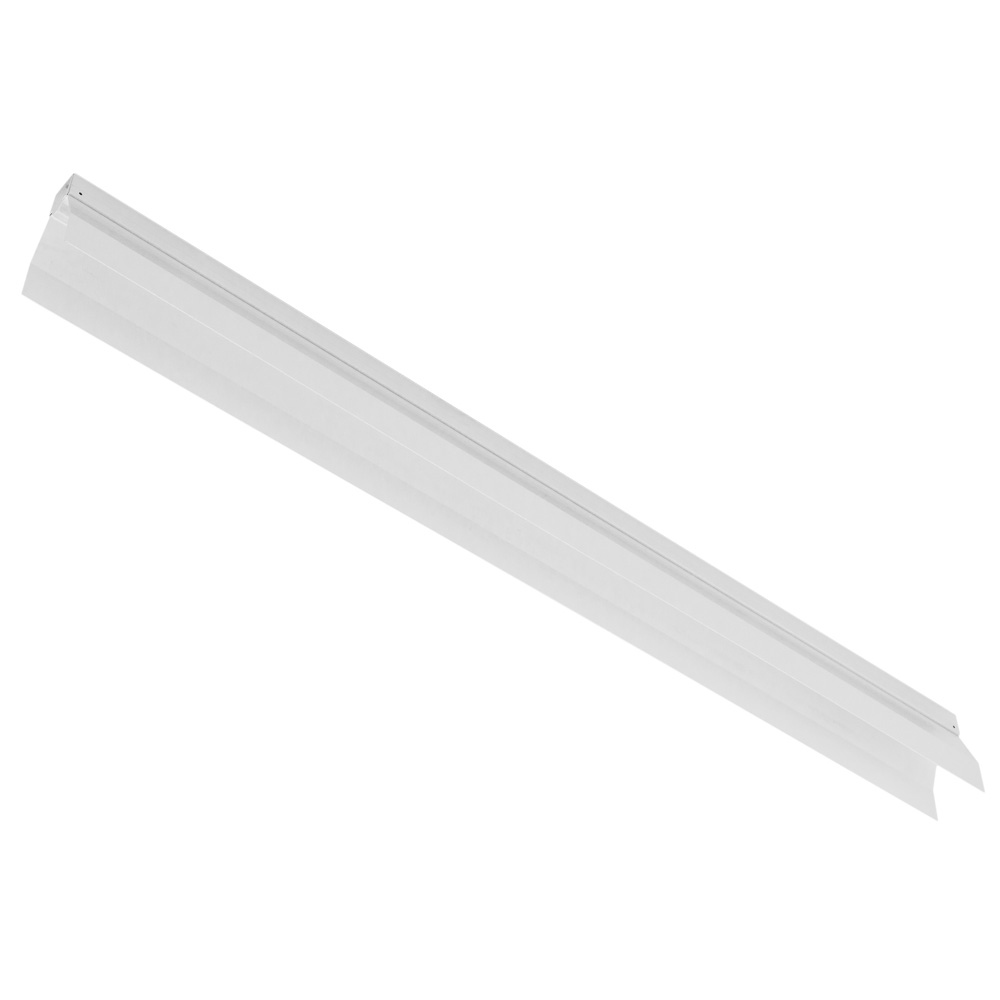

MODUS TELN - narrow beamMODUS TELN - narrow beam
MODUS TELW - widebeamMODUS TELW - widebeam

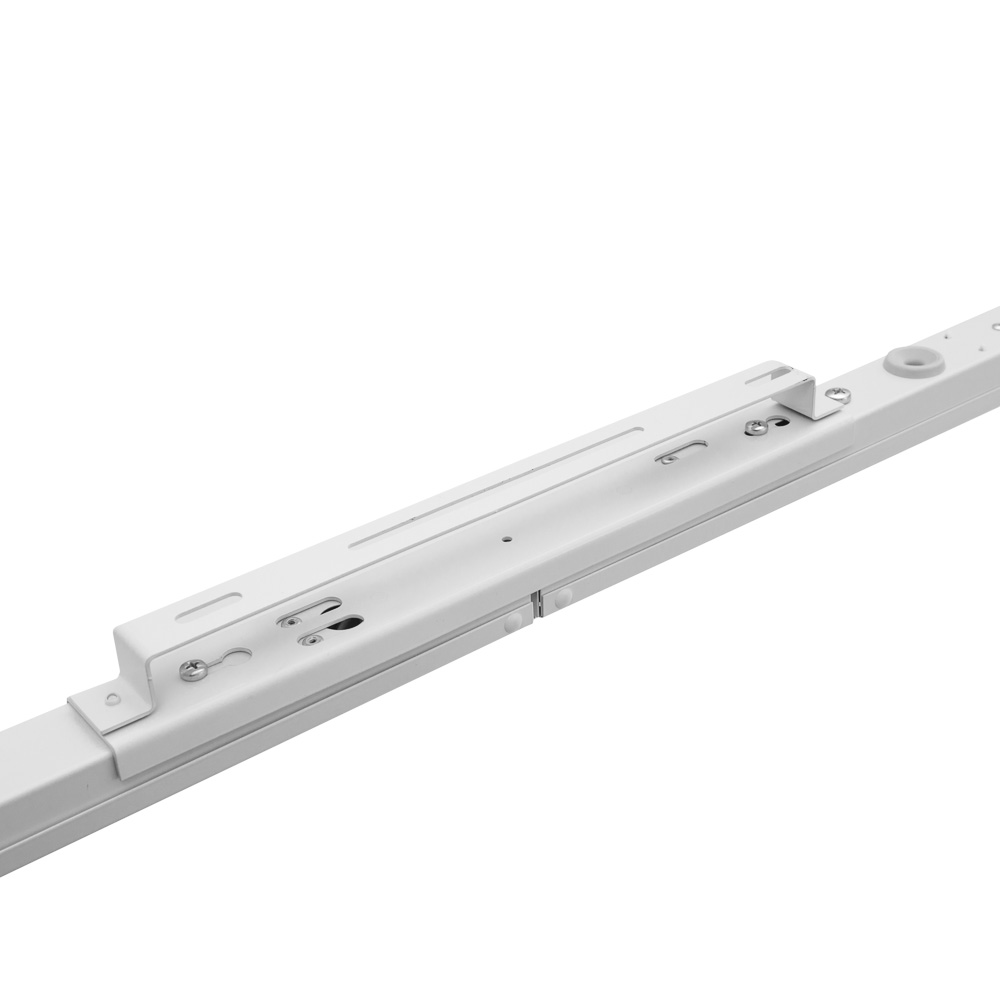

TELSPOJ - connection partTELSPOJ - connection part
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts

- surface and pendant installation

- luminaire has opal cover, also can be produced with white painted reflector (TELXN - narrow reflector, TELXW - wide reflector)

- Also possible to produce luminaire with throughtwirring possibility (TELX/R) - luminaire has connector at both endcaps. If luminaires are installed in one line it is needed to use luminaires with the same lm/meter - only luminaires from the same group can be used (standart, high power or extra high power - see the datasheet)

Size version:L
1500 mm
M
1200 mm
S
600 mm
XM
800 mm
Body material:White painted steel
Mounting method:Surface mounting, SuspendedProtection class:I
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89, 90-100
Light source type:LEDColor temperature controllable (K):Yes
Light outlet:DirectNominal voltage (V):220...240
Degree of protection (IP):IP20Color temperature (K):4000, 6500, 3000, 2700, 5700
Rated lifetime L80/B50 (h):80000
Rated ambient temperature (°C):0...+25
Dimming 1-10 V:YesDimming DALI:Yes
Dimming Touch and Dim:YesProduct category:Batten luminaire

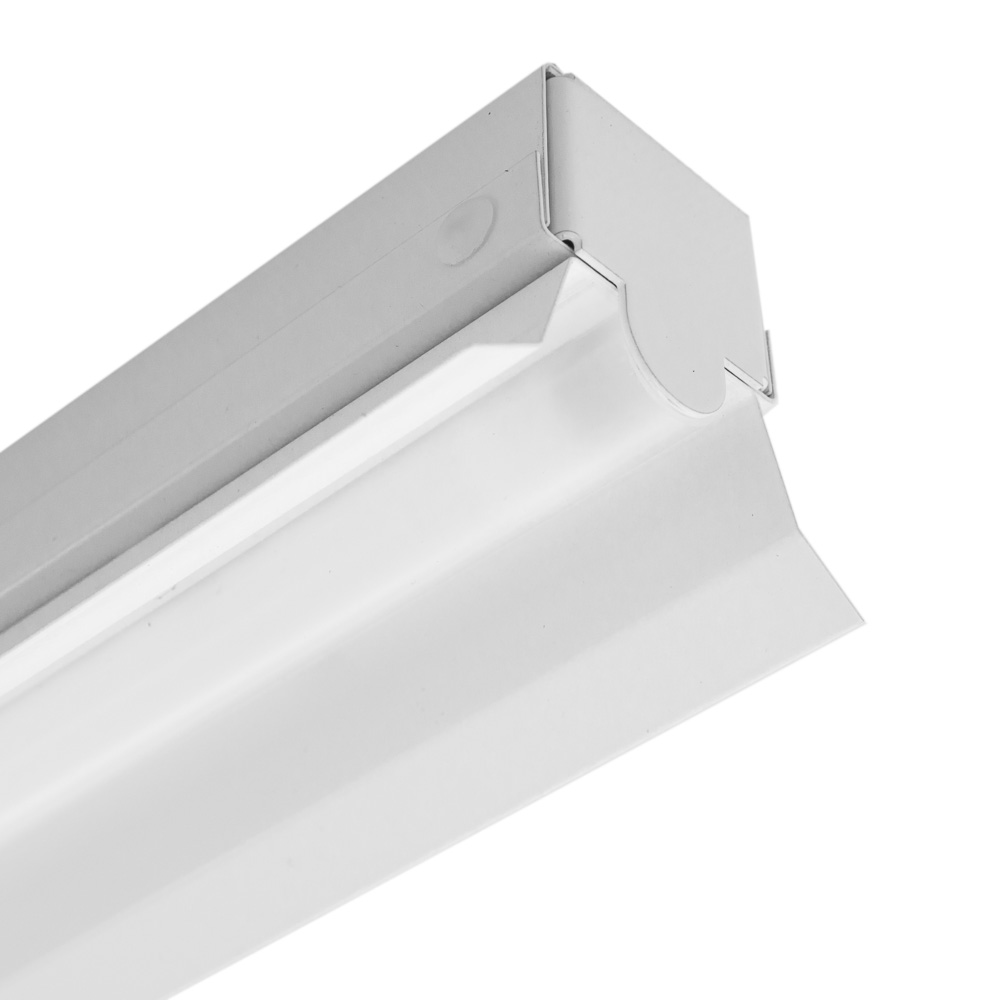

Optical system:TELXN
white painted reflector - narrow beam

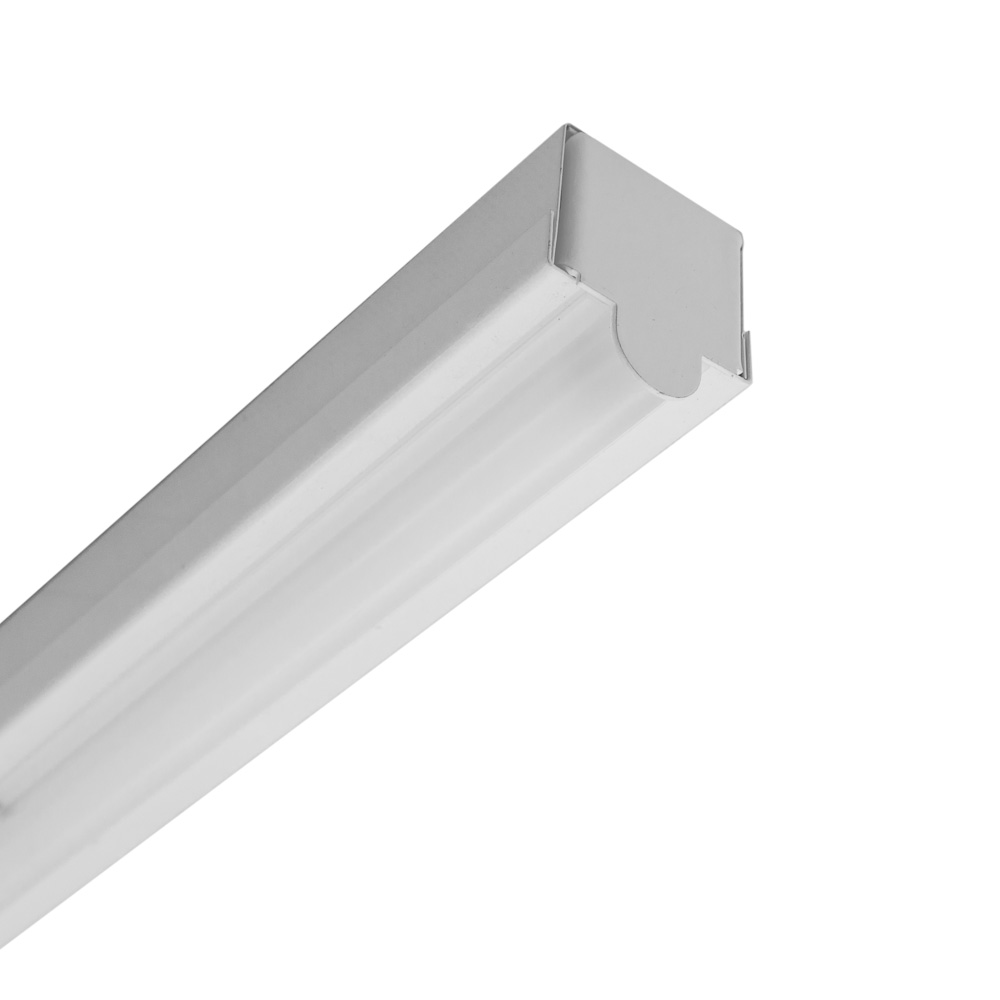

TELXW
white painted reflector - wide beam

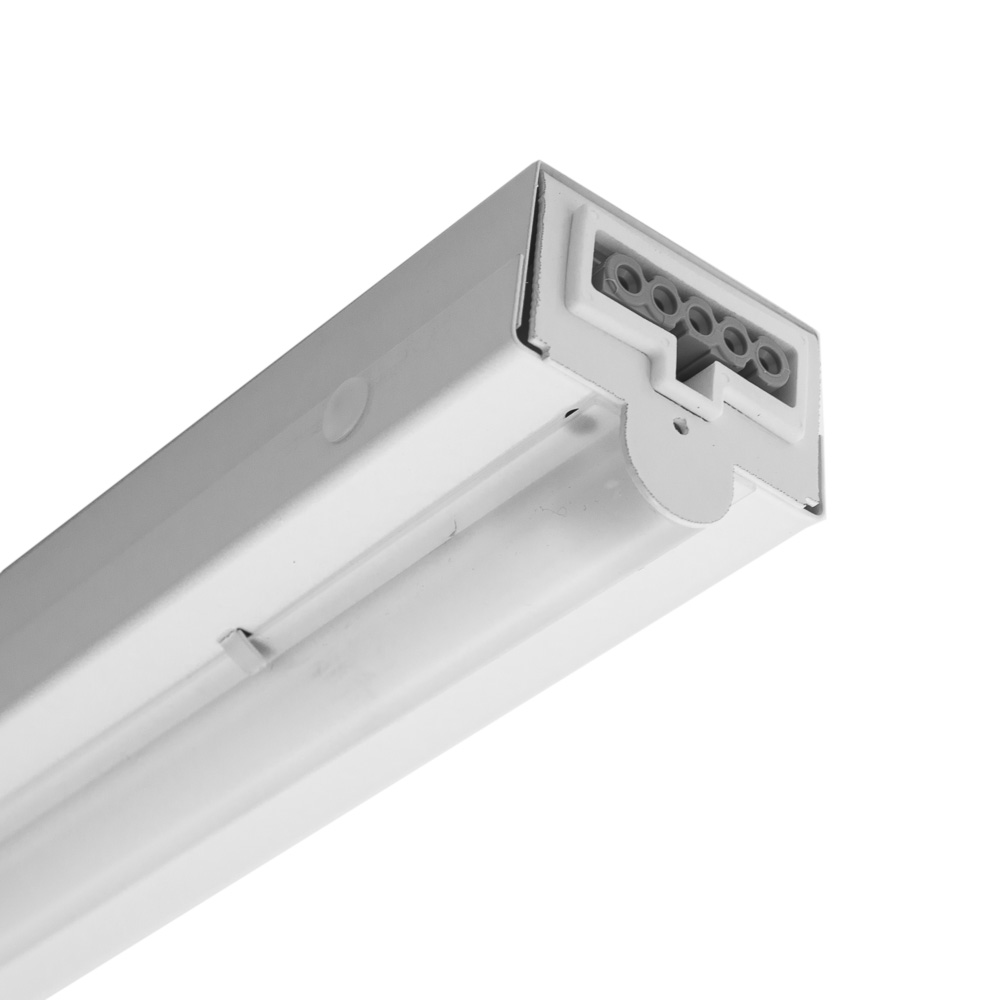

TELX
Without reflector

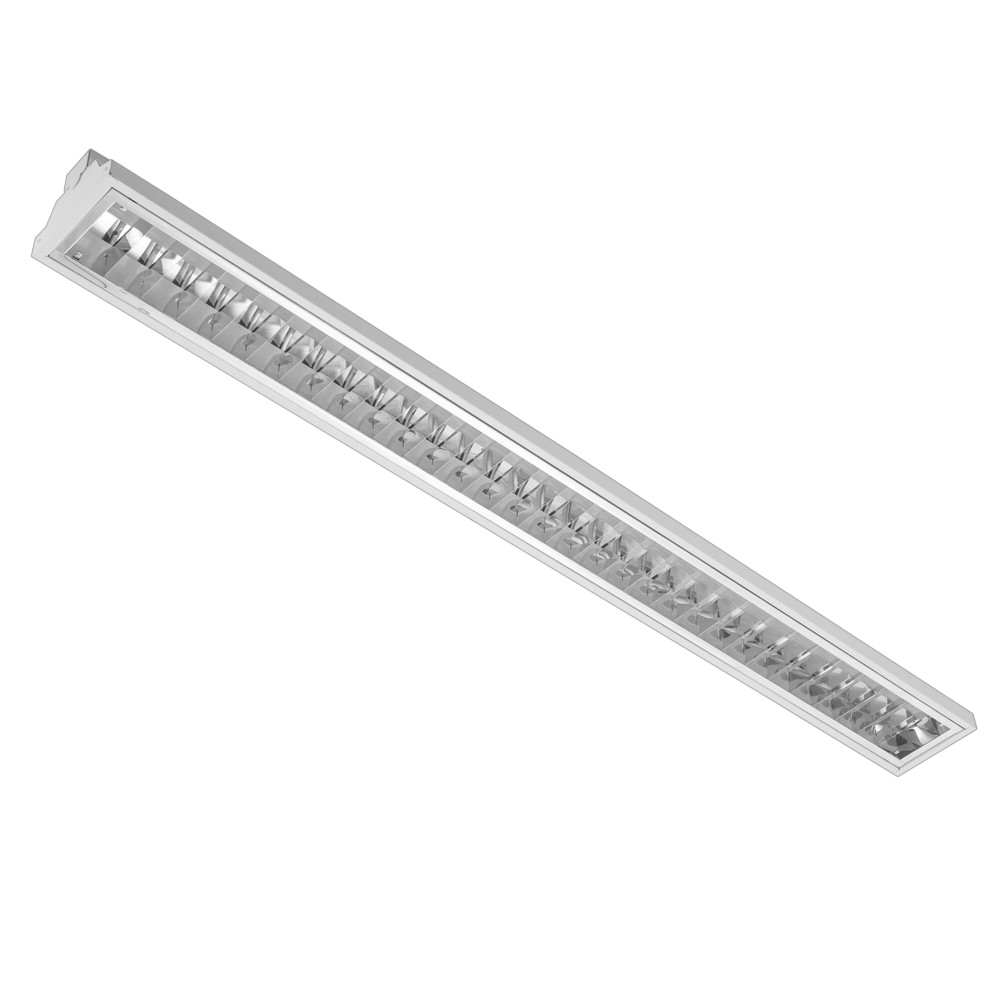

TELXDPM
leštěná parabolická mřížka
Made in Czech republic:Yes
Without Chinese components:AnoReplaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1500
10300

System power (W)

12
75
Product name
TELX10000L3/ND
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX10000L4/DALI
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX10000L4/ND
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX10000L4/ND/EU
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX10000L4/ND/R
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX10000L5/ND
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX10000L5/ND/R
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX10000L6/ND
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX10000L6/ND/90
Effective luminous flux (lm): 8400
System power (W): 69
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX10000L6/ND/R
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX1500M3/DALI
Effective luminous flux (lm): 1650
System power (W): 12
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX1500M3/ND
Effective luminous flux (lm): 1650
System power (W): 12
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX1500S3/ND
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Optical system: TELX
Length (mm): 605
TELX1500S3/ND/P1
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Optical system: TELX
Length (mm): 605
TELX1500S4/DALI/REND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Optical system: TELX
Length (mm): 605
TELX1500S4/ND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Optical system: TELX
Length (mm): 605
TELX1500S4/ND/REND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Optical system: TELX
Length (mm): 605
TELX2000S2/ND/90
Effective luminous flux (lm): 1700
System power (W): 14
Color temperature (K): 2700
Optical system: TELX
Length (mm): 605
TELX2000S3/ND
Effective luminous flux (lm): 2100
System power (W): 14
Color temperature (K): 3000
Optical system: TELX
Length (mm): 605
TELX2000S3/ND/P1
Effective luminous flux (lm): 2100
System power (W): 14
Color temperature (K): 3000
Optical system: TELX
Length (mm): 605
TELX2000S4/DALI
Effective luminous flux (lm): 2100
System power (W): 14
Color temperature (K): 4000
Optical system: TELX
Length (mm): 605
TELX2000S4/ND
Effective luminous flux (lm): 2100
System power (W): 14
Color temperature (K): 4000
Optical system: TELX
Length (mm): 605
TELX2000S4/ND/REND
Effective luminous flux (lm): 2100
System power (W): 14
Color temperature (K): 4000
Optical system: TELX
Length (mm): 605
TELX2000S6/ND
Effective luminous flux (lm): 2100
System power (W): 14
Color temperature (K): 6500
Optical system: TELX
Length (mm): 605
TELX2000S6/ND/P1
Effective luminous flux (lm): 2100
System power (W): 14
Color temperature (K): 6500
Optical system: TELX
Length (mm): 605
TELX2500XM2/DALI/R
Effective luminous flux (lm): 2550
System power (W): 18
Color temperature (K): 2700
Optical system: TELX
Length (mm): 750
TELX2500XM3/DALI
Effective luminous flux (lm): 2550
System power (W): 18
Color temperature (K): 3000
Optical system: TELX
Length (mm): 750
TELX2500XM3/ND
Effective luminous flux (lm): 2550
System power (W): 18
Color temperature (K): 3000
Optical system: TELX
Length (mm): 750
TELX2500XM4/DALI
Effective luminous flux (lm): 2550
System power (W): 18
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX2500XM4/DALI/R
Effective luminous flux (lm): 2550
System power (W): 18
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX2500XM4/ND
Effective luminous flux (lm): 2550
System power (W): 18
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX2500XM4/ND/R
Effective luminous flux (lm): 2550
System power (W): 18
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX3000L3/ND
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX3000L4/ND/R
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX3000M3/DALI
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX3000M3/DALI/P1
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX3000M3/DALI/R
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX3000M3/ND
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX3000M3/ND/P1
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX3000M3/ND/R
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX3000M3/ND/S56
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX3000M4/DALI/R
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX3000M4/ND
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX3000M4/ND/P1
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX3000M4/ND/R
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX3000M4/ND/S56
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX3000M6/ND
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1186
TELX3000S3/ND
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 604
TELX3000S4/DALI
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 4000
Optical system: TELX
Length (mm): 605
TELX3000S4/ND/S56
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 4000
Optical system: TELX
Length (mm): 605
TELX3500XM3/DALI
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: TELX
Length (mm): 750
TELX3500XM3/DALI/R
Effective luminous flux (lm): 3600
System power (W): 27
Color temperature (K): 3000
Optical system: TELX
Length (mm): 750
TELX3500XM3/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: TELX
Length (mm): 750
TELX3500XM4/DALI
Effective luminous flux (lm): 3600
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX3500XM4/DALI/R
Effective luminous flux (lm): 3600
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX3500XM4/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX3500XM4/ND/R
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX4000M2/DALI/R
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 2700
Optical system: TELX
Length (mm): 1186
TELX4000M2/ND/90/P
Effective luminous flux (lm): 3400
System power (W): 27
Color temperature (K): 2700
Optical system: TELX
Length (mm): 1186
TELX4000M3/DALI
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX4000M3/DALI/R
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX4000M3/ND
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX4000M3/ND/P1
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX4000M3/ND/R
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX4000M4/DALI
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/DALI/P1
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/DALI/R
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/DALIT
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/ND
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/ND/90
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/ND/EU
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/ND/P1
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/ND/R
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/ND/S56
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M5/DALI
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1186
TELX4000M5/ND
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1186
TELX4000M5/ND/P1
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1186
TELX4000M6/ND
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1186
TELX4000M6/ND/P1
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1186
TELX5000L2/DALI/P1
Effective luminous flux (lm): 4400
System power (W): 34
Color temperature (K): 2700
Optical system: TELX
Length (mm): 1484
TELX5000L2/DALI/R
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 2700
Optical system: TELX
Length (mm): 1484
TELX5000L2/ND/90/P
Effective luminous flux (lm): 4400
System power (W): 34
Color temperature (K): 2700
Optical system: TELX
Length (mm): 1484
TELX5000L2/ND/R
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 2700
Optical system: TELX
Length (mm): 1484
TELX5000L3/DALI
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L3/DALI/90
Effective luminous flux (lm): 4400
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L3/DALI/R
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L3/ND
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L3/ND/P1
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L3/ND/R
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L3/ND/R/90
Effective luminous flux (lm): 4400
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L3/ND/S56
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L3/NDNZ
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L4/DALI
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX5000L4/DALI/R
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX5000L4/ND
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX5000L4/ND/90
Effective luminous flux (lm): 4450
System power (W): 34
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX5000L4/ND/P1
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX5000L4/ND/R
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX5000L4/NDNZ
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX5000L5/ND
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX5000L5/ND/P1
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX5000L5/ND/R
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX5000L6/ND
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX5000L6/ND/90
Effective luminous flux (lm): 4200
System power (W): 34
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX5000L6/ND/P1
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX5000L6/ND/R
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX5000L6/ND/R/90
Effective luminous flux (lm): 4200
System power (W): 34
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX5000LMIXW/R
Effective luminous flux (lm): 4800
System power (W): 37
Color temperature (K): 2700...6500
Optical system: TELX
Length (mm): 1484
TELX5000XM4/DALI
Effective luminous flux (lm): 5100
System power (W): 35
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX5000XM4/ND
Effective luminous flux (lm): 5100
System power (W): 35
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX5000XM5/ND
Effective luminous flux (lm): 5100
System power (W): 35
Color temperature (K): 5700
Optical system: TELX
Length (mm): 750
TELX5500M3/DALI
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX5500M3/DALI/R
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX5500M3/ND
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX5500M3/ND/R
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX5500M4/DALI
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX5500M4/DALI/R
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX5500M4/ND
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX5500M4/ND/R
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX5500M5/ND
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1186
TELX5500M5/ND/90
Effective luminous flux (lm): 4900
System power (W): 42
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1186
TELX5500M5/ND/R
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1186
TELX5500M6/ND
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1186
TELX7000L3/DALI/R
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX7000L3/ND
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX7000L3/ND/R
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX7000L4/DALI
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX7000L4/DALI/R
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX7000L4/ND
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX7000L4/ND/R
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX7000L5/DALI
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX7000L5/ND
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX7000L5/ND/90
Effective luminous flux (lm): 6200
System power (W): 50
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX7000L5/ND/R
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX7000L6/ND
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX7000M4/ND
Effective luminous flux (lm): 7500
System power (W): 62
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELXAS3000M4/ND
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1186
TELXDPM10000L3/ND
Effective luminous flux (lm): 7300
System power (W): 69
Color temperature (K): 3000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM10000L4/ND
Effective luminous flux (lm): 7300
System power (W): 69
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM10000L4/ND/R
Effective luminous flux (lm): 7300
System power (W): 69
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM10000L5/ND
Effective luminous flux (lm): 7300
System power (W): 69
Color temperature (K): 5700
Optical system: TELXDPM
Length (mm): 1484
TELXDPM10000L5/ND/R
Effective luminous flux (lm): 7300
System power (W): 69
Color temperature (K): 5700
Optical system: TELXDPM
Length (mm): 1484
TELXDPM2500XM4/ND
Effective luminous flux (lm): 1850
System power (W): 18
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 750
TELXDPM2500XM4/ND/R
Effective luminous flux (lm): 1850
System power (W): 18
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 750
TELXDPM4000M3/ND
Effective luminous flux (lm): 3000
System power (W): 27
Color temperature (K): 3000
Optical system: TELXDPM
Length (mm): 1186
TELXDPM4000M4/ND/R
Effective luminous flux (lm): 3000
System power (W): 27
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1186
TELXDPM5000L3/ND
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 3000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM5000L3/ND/R
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 3000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM5000L4/ND
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM5000L4/ND/P1
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM5000L4/ND/R
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM5000XM4/ND
Effective luminous flux (lm): 3800
System power (W): 35
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 750
TELXDPM5500M3/ND
Effective luminous flux (lm): 4200
System power (W): 42
Color temperature (K): 3000
Optical system: TELXDPM
Length (mm): 1186
TELXDPM5500M4/ND
Effective luminous flux (lm): 4200
System power (W): 42
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1186
TELXDPM5500M4/ND/R
Effective luminous flux (lm): 4200
System power (W): 42
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1186
TELXDPM5500M5/ND
Effective luminous flux (lm): 4200
System power (W): 42
Color temperature (K): 5700
Optical system: TELXDPM
Length (mm): 1186
TELXDPM7000L4/DALI/R
Effective luminous flux (lm): 5250
System power (W): 50
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM7000L4/ND
Effective luminous flux (lm): 5250
System power (W): 50
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM7000L4/ND/R
Effective luminous flux (lm): 5250
System power (W): 50
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM7000L5/ND
Effective luminous flux (lm): 5250
System power (W): 50
Color temperature (K): 5700
Optical system: TELXDPM
Length (mm): 1484
TELXDPM7000L5/ND/R
Effective luminous flux (lm): 5250
System power (W): 50
Color temperature (K): 5700
Optical system: TELXDPM
Length (mm): 1484
TELXN10000L3/ND
Effective luminous flux (lm): 9150
System power (W): 69
Color temperature (K): 3000
Optical system: TELXN
Length (mm): 1484
TELXN10000L4/DALI/P1
Effective luminous flux (lm): 9150
System power (W): 69
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN10000L4/DALIT
Effective luminous flux (lm): 9150
System power (W): 69
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN10000L4/ND
Effective luminous flux (lm): 9150
System power (W): 69
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN10000L4/ND/P
Effective luminous flux (lm): 9150
System power (W): 69
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN10000L4/ND/P1
Effective luminous flux (lm): 9150
System power (W): 69
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN10000L4/ND/R
Effective luminous flux (lm): 9150
System power (W): 69
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN2000S4/ND/REND
Effective luminous flux (lm): 2100
System power (W): 14
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 605
TELXN3000M3/DALI
Effective luminous flux (lm): 2900
System power (W): 21
Color temperature (K): 3000
Optical system: TELXN
Length (mm): 1186
TELXN3000M3/ND
Effective luminous flux (lm): 2900
System power (W): 21
Color temperature (K): 3000
Optical system: TELXN
Length (mm): 1186
TELXN3000M4/ND
Effective luminous flux (lm): 2900
System power (W): 21
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1186
TELXN3500XM4/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 750
TELXN4000M3/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: TELXN
Length (mm): 1186
TELXN4000M4/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1186
TELXN5000L3/ND
Effective luminous flux (lm): 4800
System power (W): 34
Color temperature (K): 3000
Optical system: TELXN
Length (mm): 1484
TELXN5000L3/ND/R
Effective luminous flux (lm): 4800
System power (W): 34
Color temperature (K): 3000
Optical system: TELXN
Length (mm): 1484
TELXN5000L4/ND
Effective luminous flux (lm): 4800
System power (W): 34
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN5000L4/ND/R
Effective luminous flux (lm): 4800
System power (W): 34
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN5000L5/ND
Effective luminous flux (lm): 4800
System power (W): 34
Color temperature (K): 5700
Optical system: TELXN
Length (mm): 1484
TELXN5000XM4/ND
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 750
TELXN5500M4/DALI
Effective luminous flux (lm): 5350
System power (W): 42
Color temperature (K): 4000
Optical system: TELN
Length (mm): 1186
TELXN7000L3/ND
Effective luminous flux (lm): 6700
System power (W): 50
Color temperature (K): 3000
Optical system: TELXN
Length (mm): 1484
TELXN7000L4/DALI/P1
Effective luminous flux (lm): 6700
System power (W): 50
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN7000L4/ND
Effective luminous flux (lm): 6700
System power (W): 50
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN7000L4/ND/R
Effective luminous flux (lm): 6700
System power (W): 50
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN7000L5/ND
Effective luminous flux (lm): 6700
System power (W): 50
Color temperature (K): 5700
Optical system: TELXN
Length (mm): 1484
TELXW10000L4/DALI
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW10000L4/DALI/R
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW10000L4/ND
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW10000L4/ND/EU
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW10000L4/ND/P1
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW10000L4/ND/R
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW10000L5/DALI
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1484
TELXW10000L5/ND
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1484
TELXW10000L5/ND/P1
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1484
TELXW10000L6/ND/R
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 6500
Optical system: TELXW
Length (mm): 1484
TELXW11000L4/ND
Effective luminous flux (lm): 10300
System power (W): 75
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW2000S3/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 605
TELXW2500XM4/ND
Effective luminous flux (lm): 2400
System power (W): 18
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 750
TELXW3000M3/ND
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1186
TELXW3000M4/ND
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW3000M4/ND/R
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW3500XM4/ND
Effective luminous flux (lm): 3600
System power (W): 27
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 750
TELXW4000M3/DALI
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1186
TELXW4000M3/ND
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1186
TELXW4000M3/ND/9005
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1186
TELXW4000M3/ND/R
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1186
TELXW4000M4/DALI
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW4000M4/ND
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW4000M4/ND/EU
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW4000M4/ND/P1
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW4000M4/ND/R
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW4000M5/ND
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1186
TELXW5000L3/DALI
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1484
TELXW5000L3/ND
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1484
TELXW5000L4/DALI
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW5000L4/DALI/R
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW5000L4/ND
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW5000L4/ND/P1
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW5000L4/ND/R
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW5000L5/DALI
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELXW5000L5/DALI/R
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELXW5000L5/ND
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1484
TELXW5000L5/ND/P1
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1484
TELXW5500M3/ND
Effective luminous flux (lm): 5450
System power (W): 42
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1186
TELXW5500M4/ND
Effective luminous flux (lm): 5450
System power (W): 42
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW5500M4/ND/90
Effective luminous flux (lm): 4600
System power (W): 42
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW5500M4/ND/R
Effective luminous flux (lm): 5450
System power (W): 42
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW5500M5/ND
Effective luminous flux (lm): 5450
System power (W): 42
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1186
TELXW7000L3/DALI
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1484
TELXW7000L3/ND
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1484
TELXW7000L3/ND/90/P
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1484
TELXW7000L4/DALI
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW7000L4/DALI/P1
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW7000L4/ND
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW7000L4/ND/EU
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW7000L4/ND/P1
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW7000L4/ND/R
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW7000L5/ND
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1484
TELXW7000L5/ND/P
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1484
TELXW7000L5/ND/P1
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1484
TELXW7000M4/ND
Effective luminous flux (lm): 7200
System power (W): 62
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
Show all versions

Autosalon Rolls-Royce (Australia)

MODUS TEL

Detail reference

Mountfield Třebíč

MODUS TEL/R

Detail reference
Zobrazit další reference
 Back to product list

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
