MODUS TOP

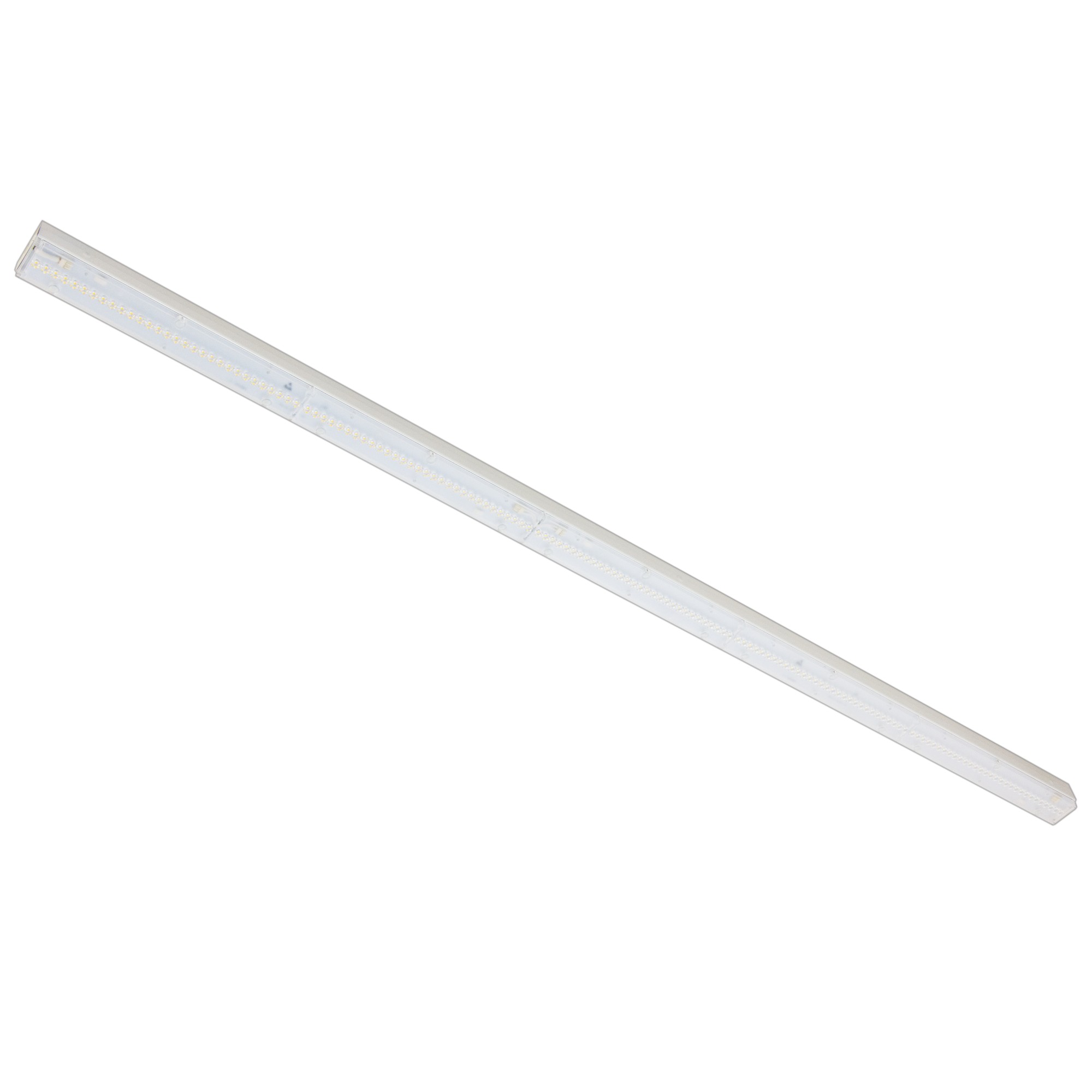

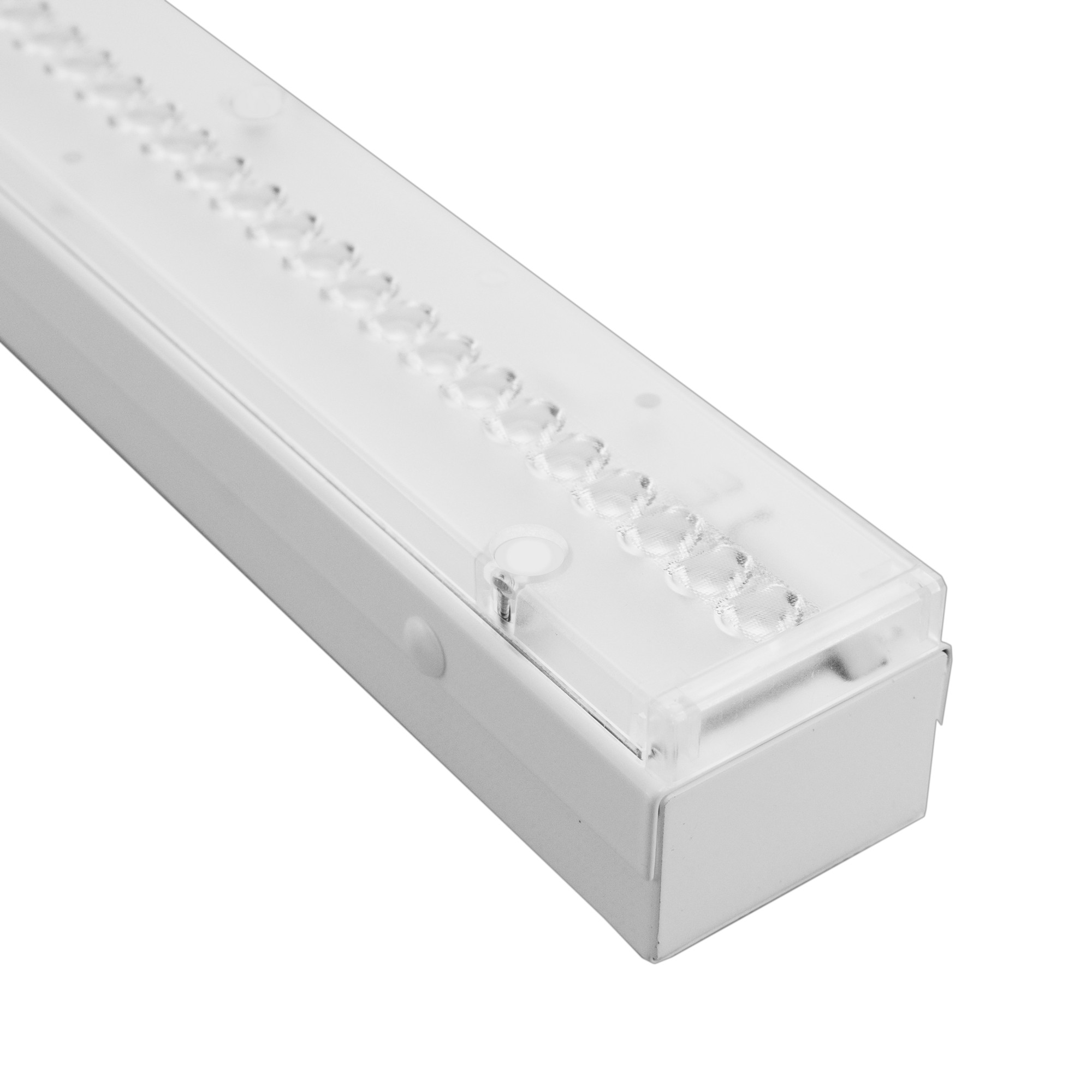

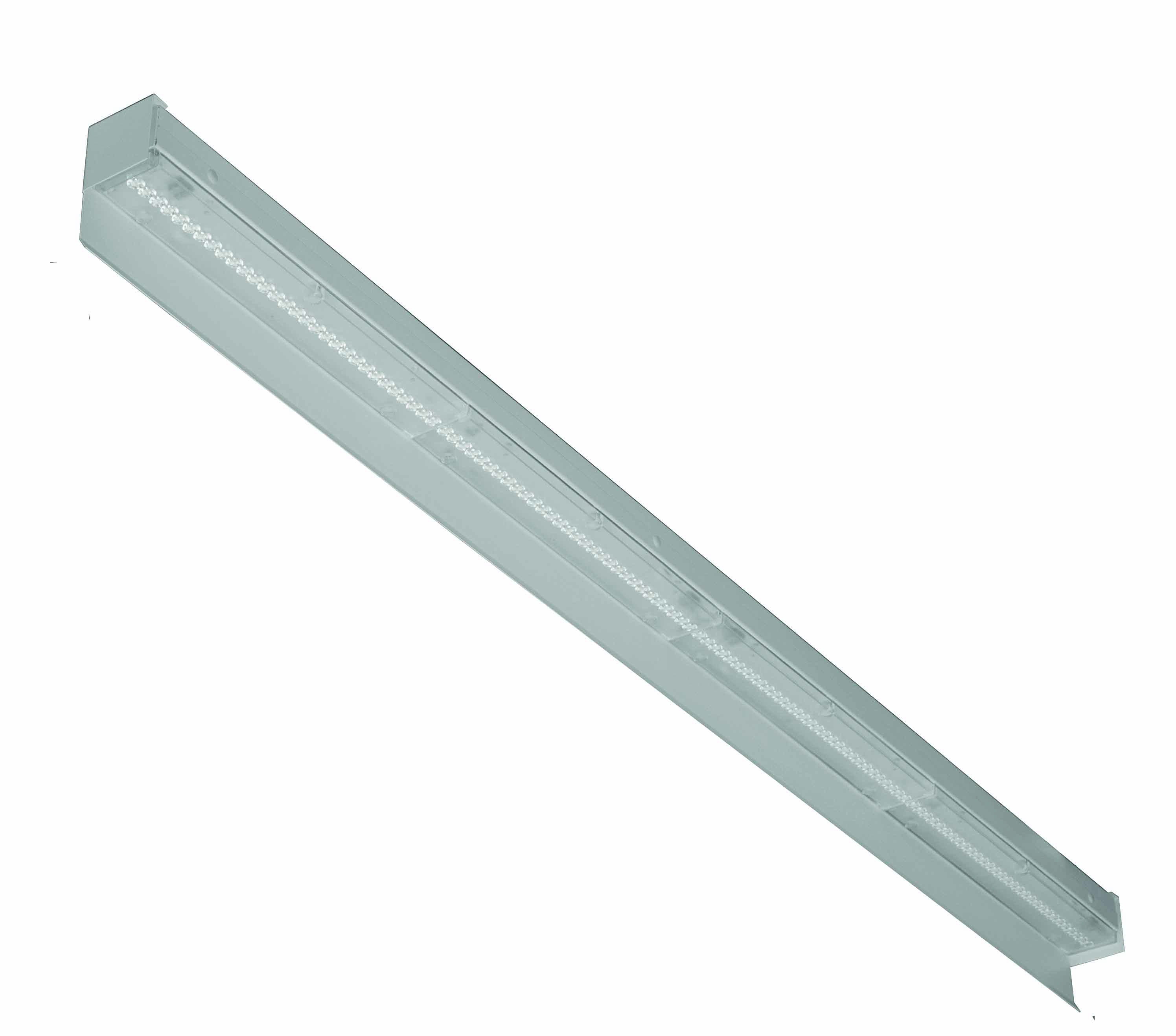

LED linear fitting with optics

MODUS TOP
přisazené asymetrické.PNG
závěesné asymetrické.PNG
třída ochrany I.PNG
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request

Linear LED luminaire with individual plastic plastic optic, which offer different lighting characterics (high rack, wide, extra wide, asymetric optics).

Standart version is for single installation. Continous assembly can be done with verstion TEL.../R. This version is made with 5 pole connector are both sides. This throughtwirrin version is ready for 3 phase installation or 1 phase installation and DALI. If luminaire is used at start or end of line, there is small plastic cover, which can be used for hole covering.

In case of pendant continous assembly is needed to use metal holder "TELSPOJ" which hold luminaires together. In case of surface continous installation "TELSPOJ" is not needed.



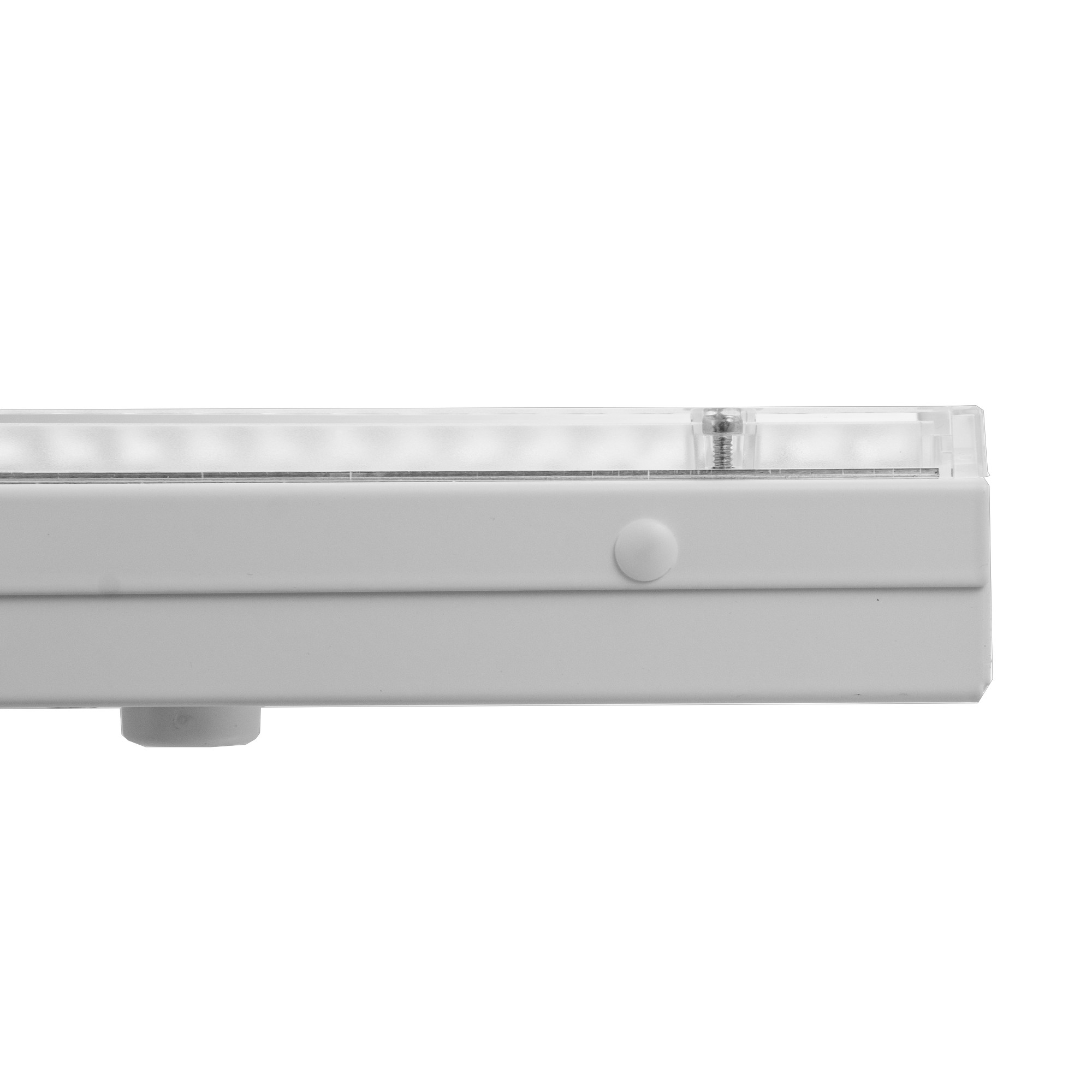

Body:
White painted (RAL9003) metal sheet

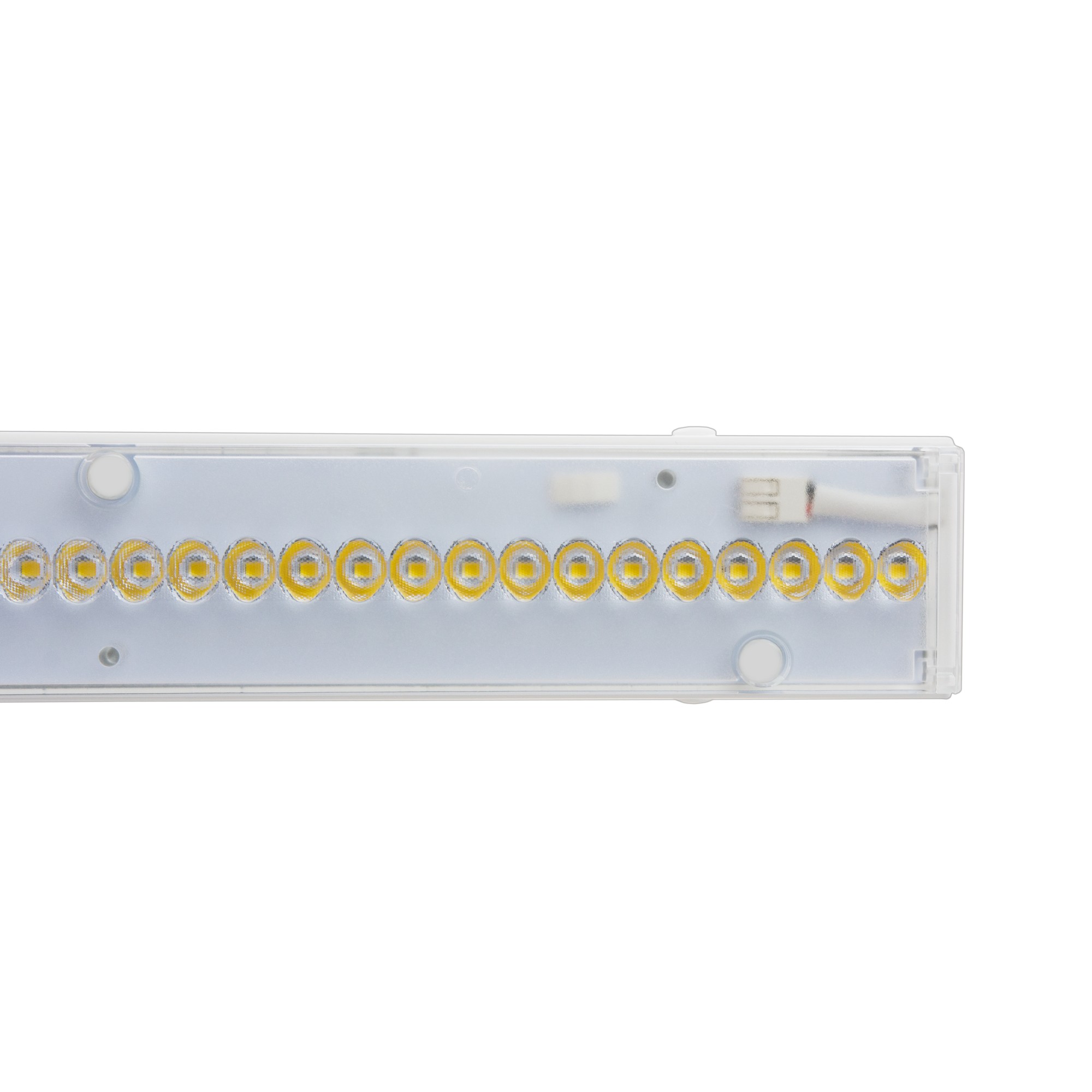

Optics:

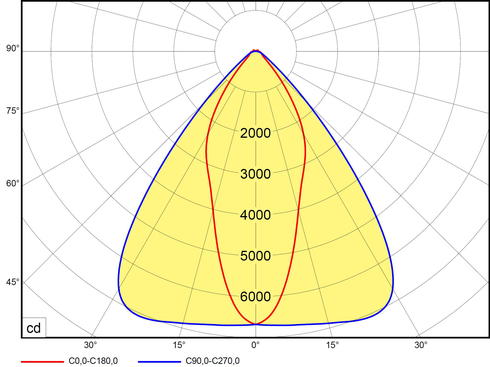

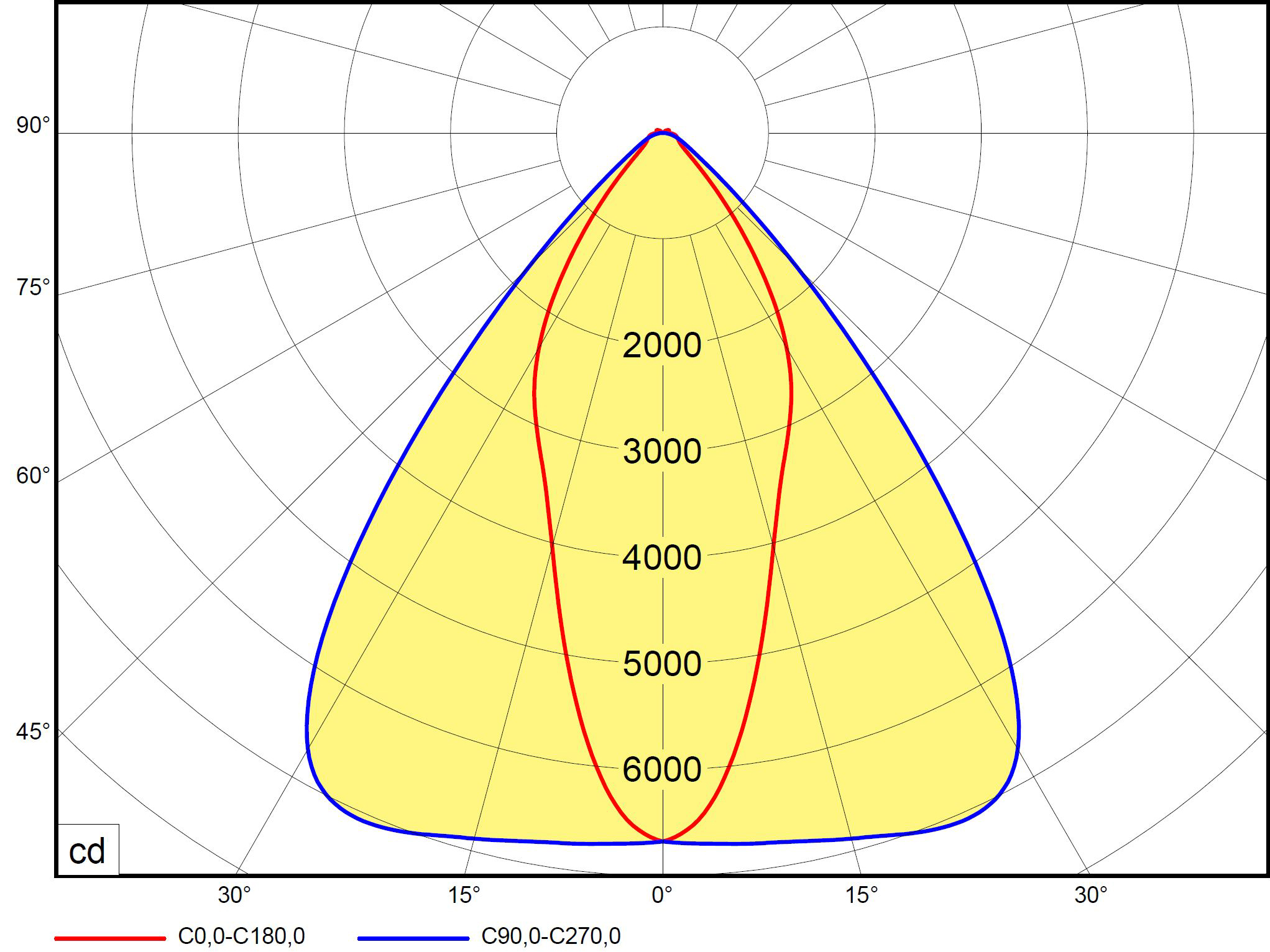

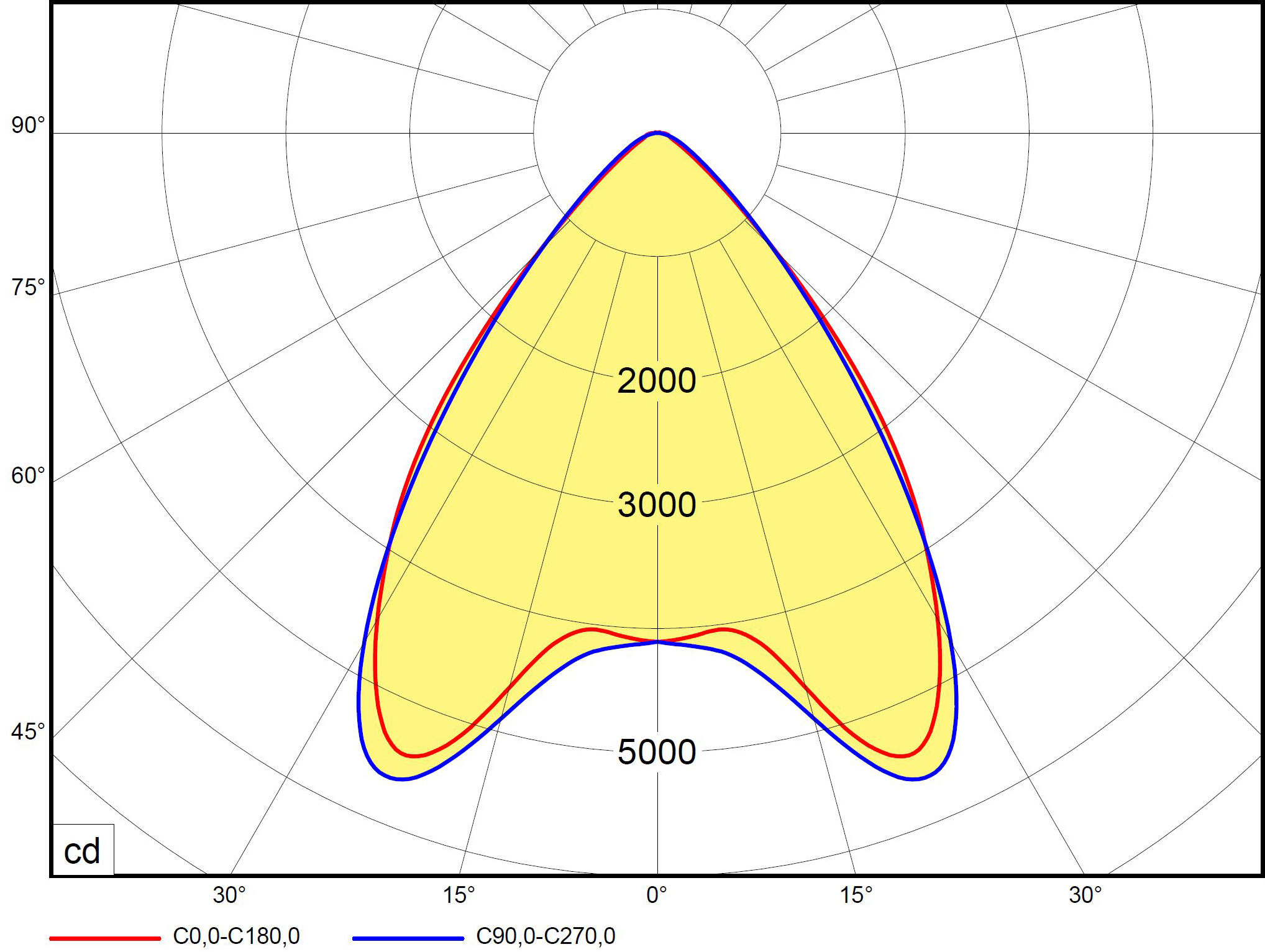

CHR - high rack

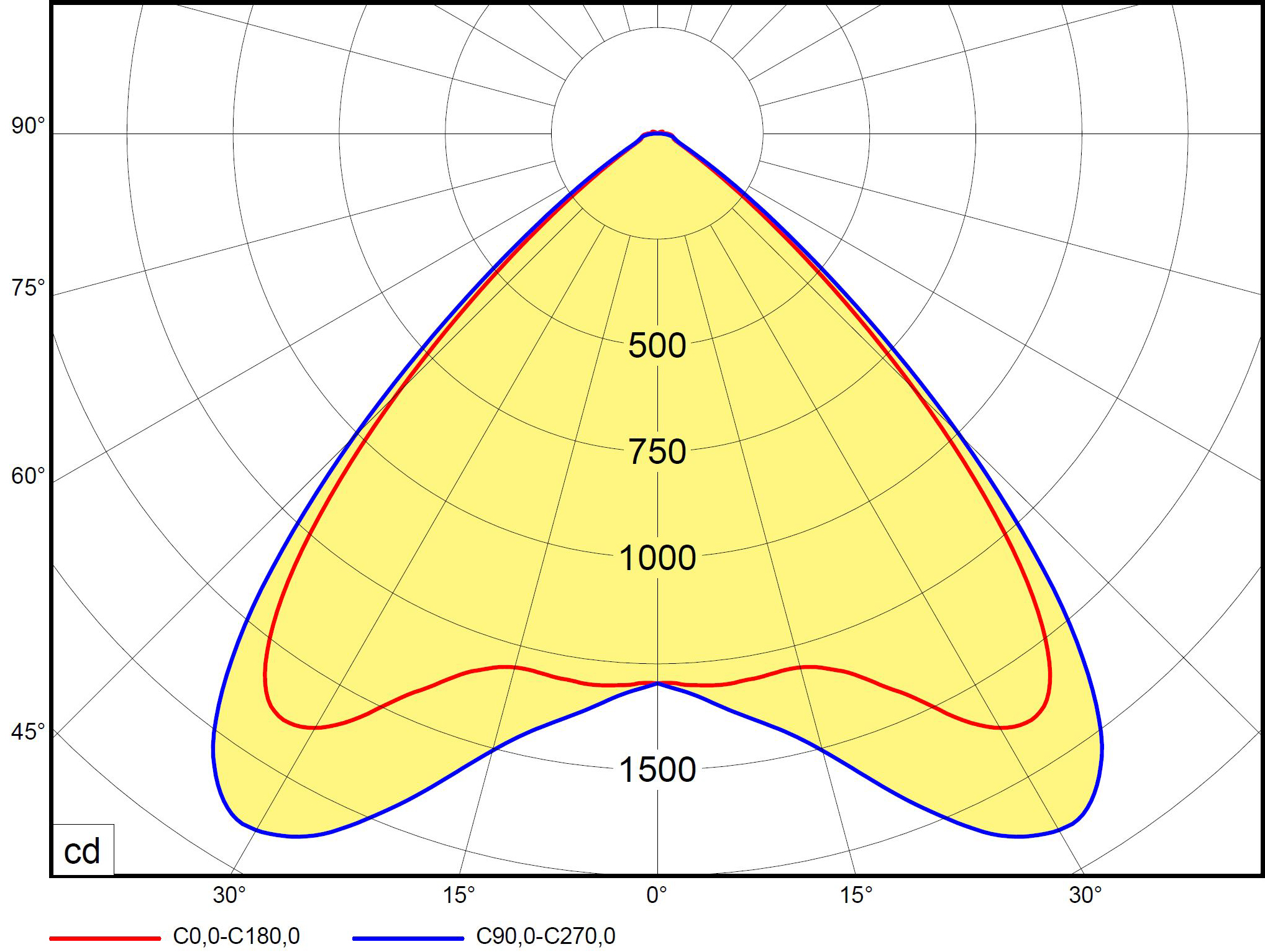

CW - wide
CEW - extra white

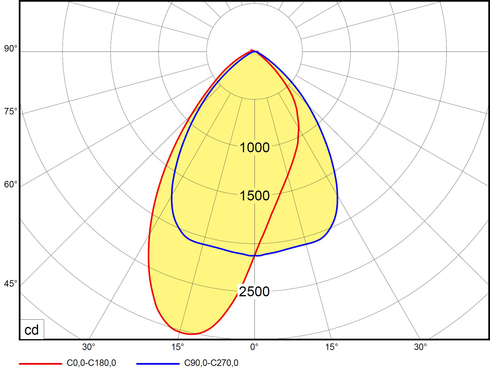

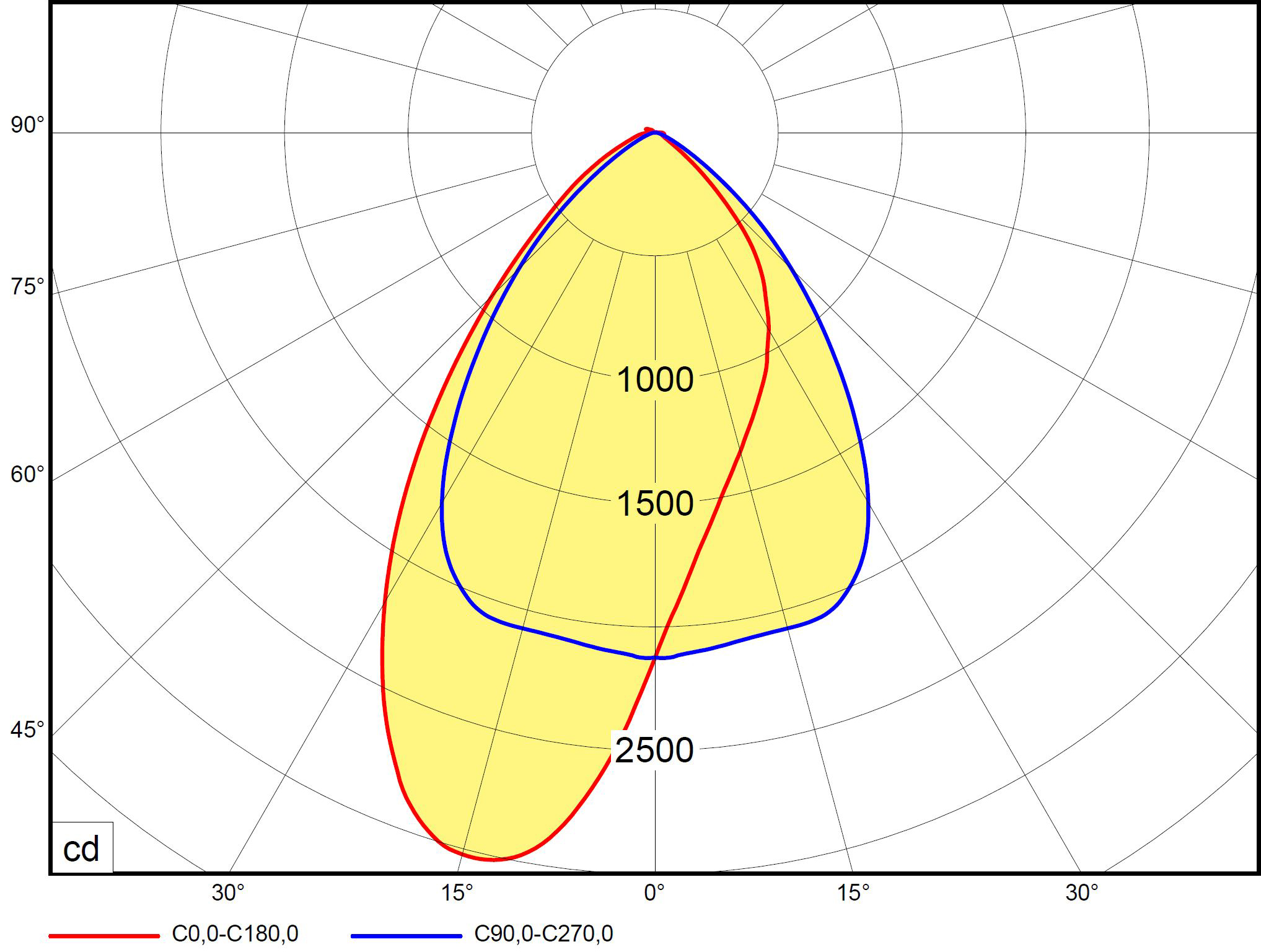

CRA - asymetric

LED:
Mid Power LED
CRI80 (CRI90 od request)
3...warm white 3000K
4...cold white 4000K
5...daylight 5700K

Wirring:
ND - nondimmable driver
DALI - dimmable by DALI

Luminaire can be supplied with wireless Bluetooth control - more information here.

Application:
Surface or pendant installation
Can be installed in line - TOP/R

Accessories:
ZH/UNI4 - suspension set
TELSPOJ - connection part between luminaires
TELHAK - suspension part for chain

Size version:L
1500 mm
M
1200 mm
S
600 mm
XM
800 mm
Body material:White painted steel
Mounting method:Surface mounting, Suspended, Surface mounting asymmetric, Pendant asymmetricProtection class:I
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89, 90-100
Light source type:LEDSuitable for light line configuration:Yes
Light outlet:DirectLight sharing:Symmetric, Asymmetric
Nominal voltage (V):220...240
Degree of protection (IP):IP20
Color temperature (K):4000, 6500, 3000, 2700, 5700Rated lifetime L80/B50 (h):80000
Dimming 1-10 V:YesDimming DALI:Yes
Optical system:CEW
Extra wide 90°
CRA
Retail asymetric optics
CHR
High rack
CW
Wide
Made in Czech republic:Yes
Replaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

1150
8000

System power (W)

12
54
Product name
TOP1000S4CW/ND
Effective luminous flux (lm): 1150
System power (W): 9
Color temperature (K): 4000
Optical system: CW
Length (mm): 572
TOP1500M3CW/ND
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Optical system: CW
Length (mm): 1134
TOP1500M4CW/R/ND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Optical system: CW
Length (mm): 1134
TOP2000L4CW/ND
Effective luminous flux (lm): 1900
System power (W): 12
Color temperature (K): 4000
Optical system: CW
Length (mm): 1415
TOP2000L4CW/R/ND
Effective luminous flux (lm): 1900
System power (W): 12
Color temperature (K): 4000
Optical system: CW
Length (mm): 1415
TOP2000S4CEW/ND
Effective luminous flux (lm): 2300
System power (W): 15
Color temperature (K): 4000
Optical system: CEW
Length (mm): 572
TOP2000S4CRA/ND
Effective luminous flux (lm): 2300
System power (W): 15
Color temperature (K): 4000
Optical system: CRA
Length (mm): 572
TOP2000S4CW/ND
Effective luminous flux (lm): 2300
System power (W): 15
Color temperature (K): 4000
Optical system: CW
Length (mm): 572
TOP2000S4CW/REND/ND
Effective luminous flux (lm): 2300
System power (W): 15
Color temperature (K): 4000
Optical system: CW
Length (mm): 572
TOP3000S4CEW/DALI
Effective luminous flux (lm): 3100
