Product series New

MODUS USAL

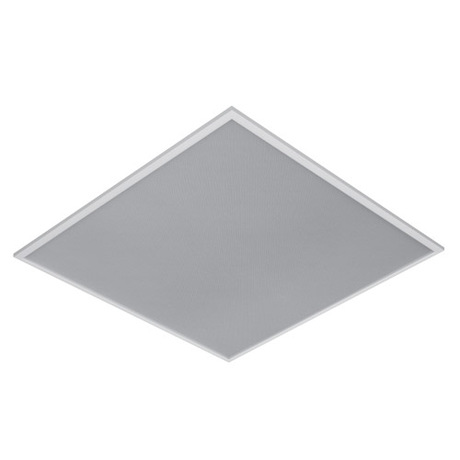

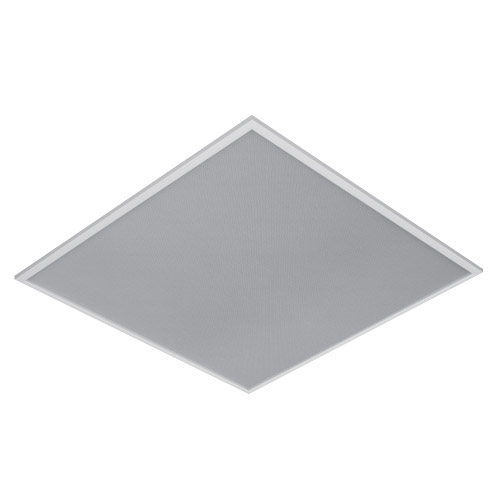

LED panel with micro-prismatic cover

MODUS USAL
US AL A 02 cb.jpg
US AL A 03 cb.jpg
US AL A 01 cb.jpg
220-240 v.png
11 L80_80000_h.jpg
en 62 471.png

Standard price from:

On request
Distribution network
Contacts
Size version:A
600x600 mm or 625x625 mm
Body material:White painted aluminium frame
Mounting method:Built-in, Surface mountingProtection class:II
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89
Light source type:LEDAnti-glare limiting UGR:19
Nominal voltage (V):220...240Degree of protection (IP):IP20, IP40
Fit for monitor workplace:YesColor temperature (K):4000, 3000
Rated lifetime L80/B50 (h):80000Dimming DALI:Yes
Optical system:KN
nanoprizmatic cover
Made in Czech republic:Yes
Replaceability:Removeable light source, replaceable ballast
Removeable light source, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

3200
6250

System power (W)

19
57
Product name
USAL2000B4KN600/ND
System power (W): 19
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
USAL3000A3KN600/DALI
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
USAL3000A3KN600/ND
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
USAL3000A3KN625/DALI
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 3000
Length (mm): 622
Raster (mm): 625
USAL3000A3KN625/ND
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 3000
Length (mm): 622
Raster (mm): 625
USAL3000A4KN600/DALI
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
USAL3000A4KN600/ND
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
USAL3000A4KN600/NDMULTI
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
USAL3000A4KN625/ND
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
USAL3000A5KN600/NDMULTI
Effective luminous flux (lm): 3200
System power (W): 27
Color temperature (K): 5700
Length (mm): 596
Raster (mm): 600
USAL3000A6KN600/ND
Effective luminous flux (lm): 3300
System power (W): 27
Color temperature (K): 6500
Length (mm): 596
Raster (mm): 600
USAL4000A3KN600/DALI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
USAL4000A3KN600/NDMULTI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
USAL4000A3KN600/NDMULTI/90
Effective luminous flux (lm): 4000
System power (W): 39
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
USAL4000A3KN600/NDMULTI/PIR
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 3000
Length (mm): 596
Raster (mm): 600
USAL4000A3KN625/NDMULTI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 3000
Length (mm): 622
Raster (mm): 625
USAL4000A4KN600/CORPIR
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
USAL4000A4KN600/DALI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
USAL4000A4KN600/NDMULTI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
USAL4000A4KN600/NDMULTI/90
Effective luminous flux (lm): 4000
System power (W): 39
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
USAL4000A4KN625/DALI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
USAL4000A4KN625/NDMULTI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
USAL4000A5KN600/NDMULTI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 5700
Length (mm): 596
Raster (mm): 600
USAL4000A5KN625/NDMULTI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 5700
Length (mm): 622
Raster (mm): 625
USAL4000A6KN600/DALI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 6500
Length (mm): 596
Raster (mm): 600
USAL4000A6KN625/NDMULTI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 6500
Length (mm): 622
Raster (mm): 625
USAL4000C3KN600/NDMULTI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 3000
Length (mm): 1196
Raster (mm): 600
USAL4000C3KN600/NDMULTI/PIR
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 3000
Length (mm): 1196
Raster (mm): 600
USAL4000C3KN625/DALI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 3000
Length (mm): 1245
Raster (mm): 625
USAL4000C3KN625/NDMULTI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 3000
Length (mm): 1245
Raster (mm): 625
USAL4000C4KN600/DALI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 4000
Length (mm): 1196
Raster (mm): 600
USAL4000C4KN600/ND
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 4000
Length (mm): 1196
Raster (mm): 600
USAL4000C4KN600/ND/90
Effective luminous flux (lm): 4000
System power (W): 39
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
USAL4000C4KN600/NDMULTI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 4000
Length (mm): 1196
Raster (mm): 600
USAL4000C4KN625/DALI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 4000
Length (mm): 1245
Raster (mm): 625
USAL4000C4KN625/NDMULTI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 4000
Length (mm): 1245
Raster (mm): 625
USAL4000C6KN600/NDMULTI
Effective luminous flux (lm): 4700
System power (W): 39
Color temperature (K): 6500
Length (mm): 1196
Raster (mm): 600
USAL6000C4KN600/DALI
Effective luminous flux (lm): 6250
System power (W): 57
Color temperature (K): 4000
Length (mm): 1196
Raster (mm): 600
USAL6000C4KN600/ND
Effective luminous flux (lm): 6250
System power (W): 57
Color temperature (K): 4000
Length (mm): 1196
Raster (mm): 600
USAL6000C4KN600/ND/90
Effective luminous flux (lm): 5400
System power (W): 57
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
USAL6000D3KN600/ND
Effective luminous flux (lm): 5600
System power (W): 52
Color temperature (K): 3000
Length (mm): 1196
Raster (mm): 600
USAL6000D4KN600/ND
Effective luminous flux (lm): 5600
System power (W): 52
Color temperature (K): 4000
Length (mm): 1196
Raster (mm): 600
Show all versions
