Product series

MODUS VL1X

Industrial non-corrosive luminaires

MODUS VL1X
třída ochrany I.PNG
220-240 v.png
11 L70_30000_h.jpg
en 62 471.png

Standard price from:

On request

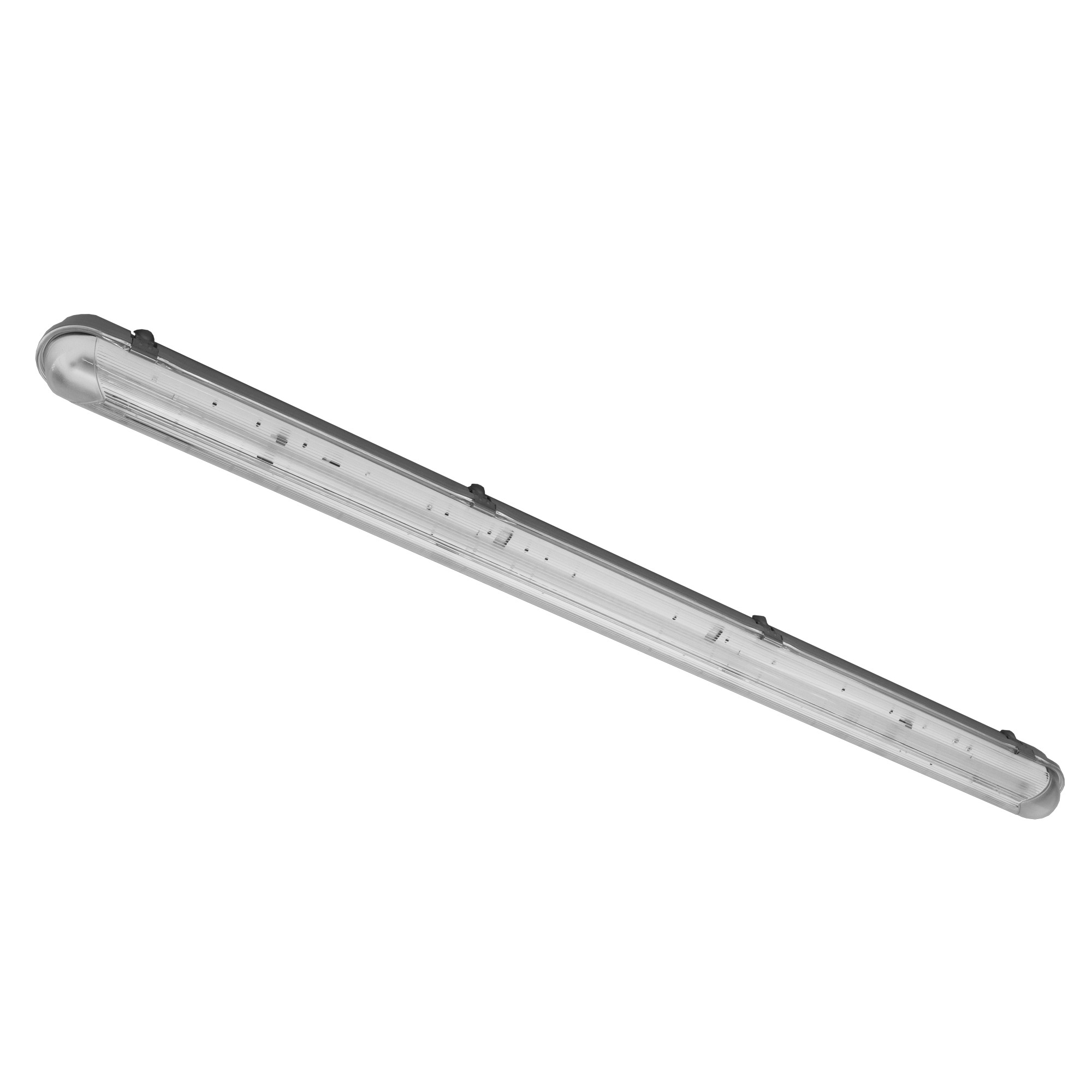

Luminaires based on exelent ratio price/lumen. Luminaires are designed in single body corpus, which allows to reach price-effective solution.

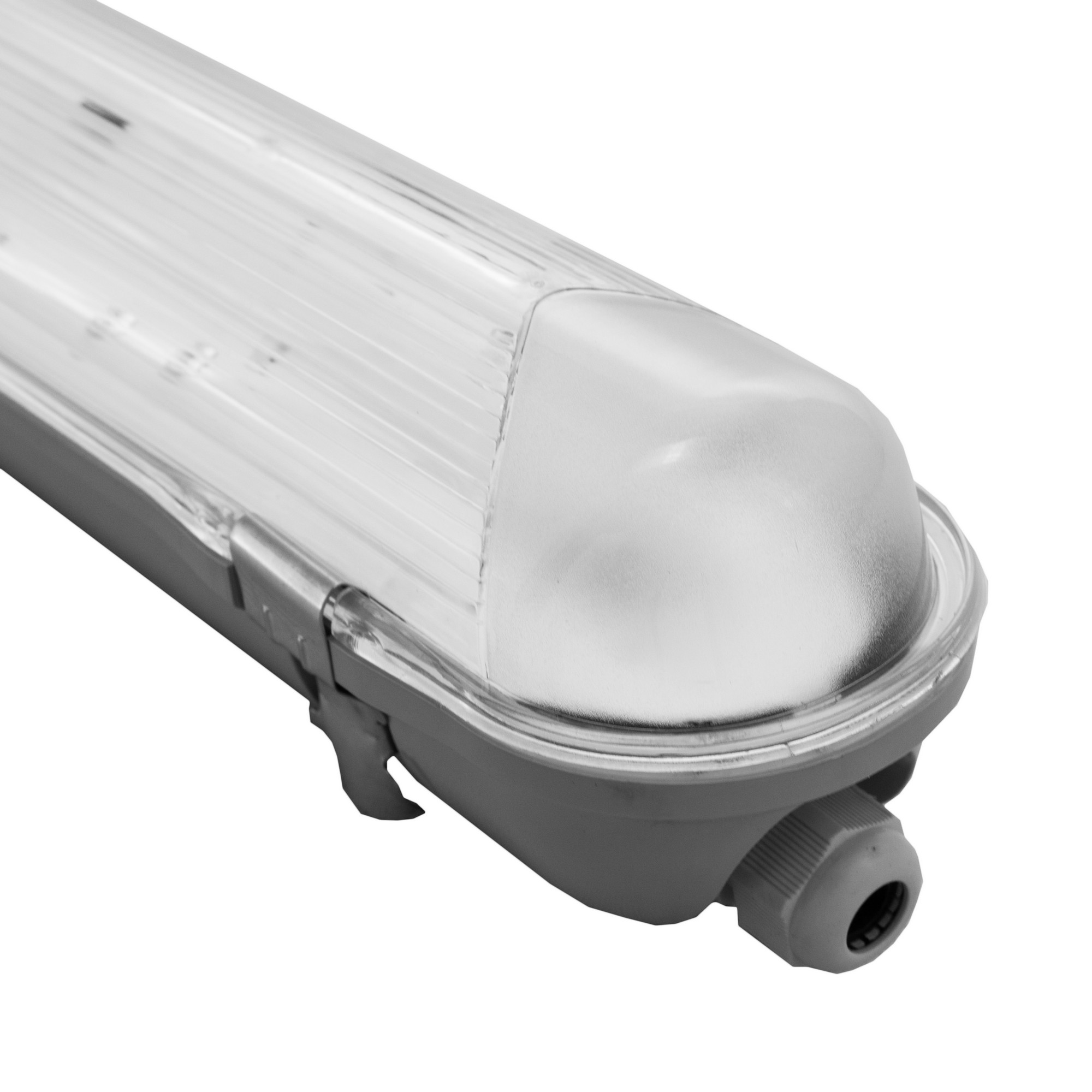

Optical part is based on two parts: smaller opal cover is placed on LED modul and then complet luminaire optics system is made from clear polycarbonate optic.

Surface nstallation is made via bracket - no drilling into luminaire for keep the IP protection. These brackets are also suitable for pendant installation. Also possible install luminaire on wall.

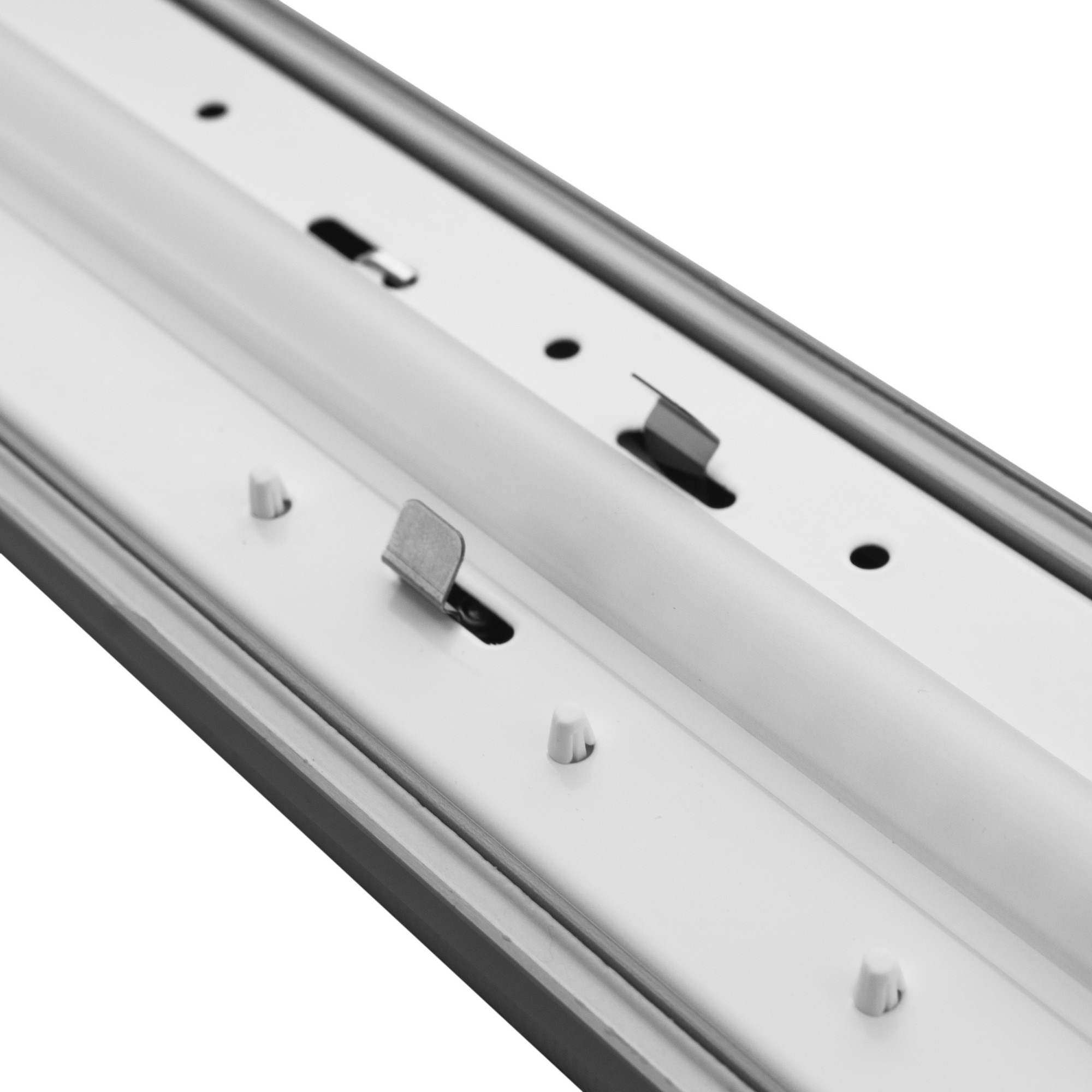

Clips are made from INOX material, with easy open system (no tool needed) and clips are hold PC cover on luminaire from one side.

Luminaire are certificate for use in places with Ta 25 Celsius degrees.

Size version:L
1500 mm
M
1200 mm
Body material:PC body
Mounting method:Pendant, Surface mountingProtection class:I
Type of control gear:LED operating device current-controlledColor rendering index CRI:80-89
Light source type:LEDImpact strength:IK07
Nominal voltage (V):220...240Degree of protection (IP):IP65
Color temperature (K):4000, 6500, 3000, 5700Rated lifetime L70/B50 (h):30000
Rated ambient temperature (°C):0...+25Dimming DALI:Yes
Optical system:PC
polycarbonate cover
Made in Czech republic:Yes
Replaceability:Replaceable light source by professional, replaceable ballast
Replaceable light source by professional, replaceable ballast
Photobiological safety EN 62 471:RG 0
MacAdam binning:SDCM 3
Show more...
LoadingLoading

Filters

Effective luminous flux (lm)

4800
8500

System power (W)

38
58
Product name
VL1X3LND
Effective luminous flux (lm): 8500
System power (W): 58
Color temperature (K): 3000
Length (mm): 1570
VL1X3LNDMULTI
Effective luminous flux (lm): 8500
System power (W): 58
Color temperature (K): 3000
Length (mm): 1570
VL1X3MND
Effective luminous flux (lm): 5500
System power (W): 38
Color temperature (K): 3000
Length (mm): 1270
VL1X3MNDMULTI
Effective luminous flux (lm): 5500
System power (W): 38
Color temperature (K): 3000
Length (mm): 1270
VL1X4LND
Effective luminous flux (lm): 8500
System power (W): 58
Color temperature (K): 4000
Length (mm): 1570
VL1X4LND/S31
Effective luminous flux (lm): 8500
System power (W): 58
Color temperature (K): 4000
Length (mm): 1570
VL1X4LNDMULTI
Effective luminous flux (lm): 8500
System power (W): 58
Color temperature (K): 4000
Length (mm): 1570
VL1X4LNDMULTI/P/2,5
Effective luminous flux (lm): 8500
System power (W): 58
Color temperature (K): 4000
Length (mm): 1570
VL1X4MDALI
Effective luminous flux (lm): 4800
System power (W): 38
Color temperature (K): 4000
Length (mm): 1270
VL1X4MND
Effective luminous flux (lm): 5500
System power (W): 38
Color temperature (K): 4000
Length (mm): 1270
VL1X4MND/P
Effective luminous flux (lm): 5500
System power (W): 38
Color temperature (K): 3000
Length (mm): 1270
VL1X4MND/S31
Effective luminous flux (lm): 5500
System power (W): 38
Color temperature (K): 4000
Length (mm): 1270
VL1X4MNDMULTI
Effective luminous flux (lm): 5500
System power (W): 38
Color temperature (K): 4000
Length (mm): 1270
VL1X5LNDMULTI
Effective luminous flux (lm): 8500
System power (W): 58
Color temperature (K): 5700
Length (mm): 1570
VL1X5MND
Effective luminous flux (lm): 5500
System power (W): 38
Color temperature (K): 5700
Length (mm): 1270
