Product series MODUS ALIN

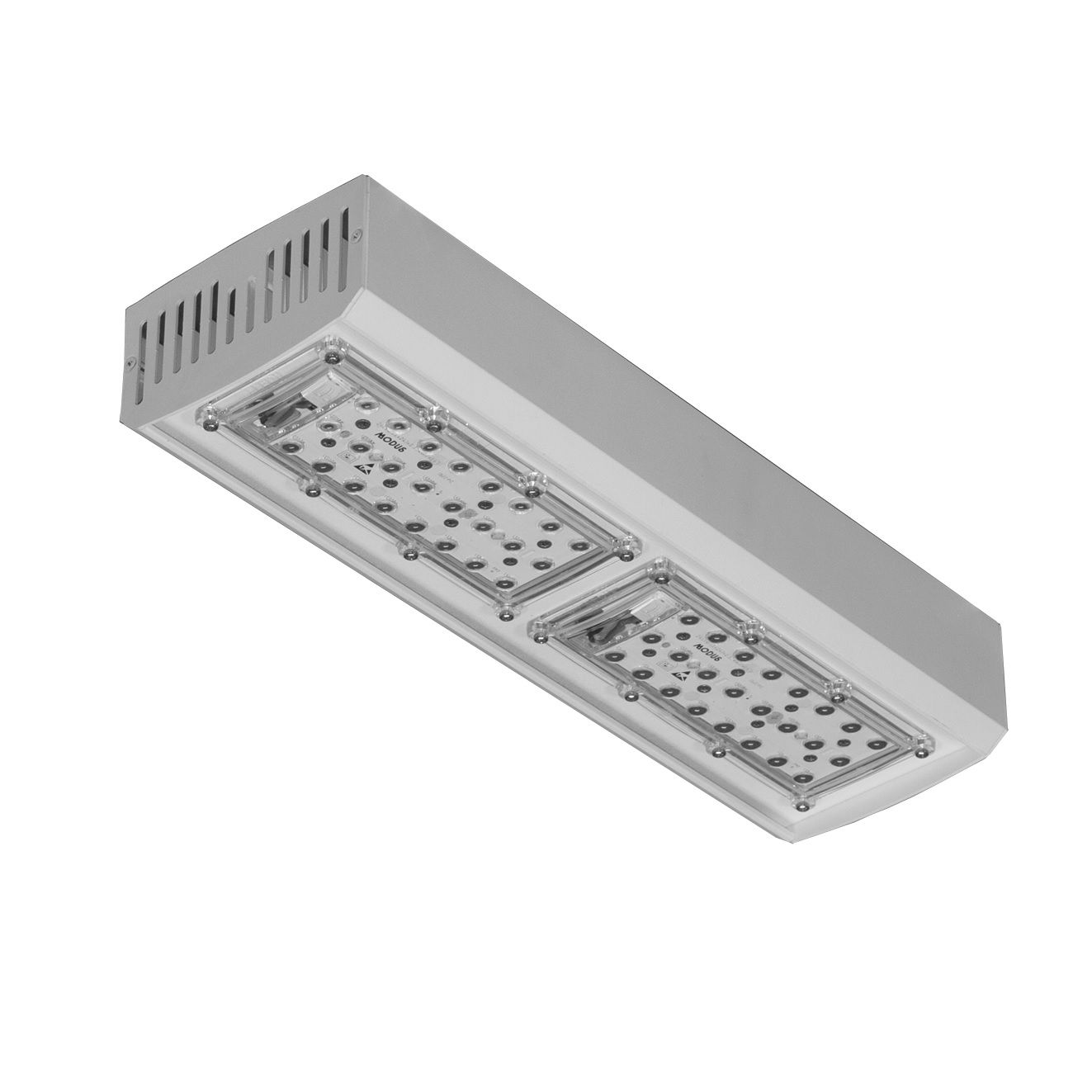

MODUS ALIN200, body 469mm, white, 2x optic narrow beam 30°, LED 840
Industrial aluminium lumininaire IP65
Code: ALIN200M4N2B/ND
EAN: 8596099127848
Luminaire properties
| Product category: | High bay luminaire | Effective luminous flux (lm): | 20800 | System power (W): | 145 | Luminaire efficacy (lm/W): | 143 |
| Rated lifetime L80/B50 (h): | 80000 | Degree of protection (IP): | IP65 | Mounting method: | Pendant | Color housing: | White | Material housing: | Aluminium |
| Light source included: | Yes | Made in Czech republic: | Yes |
Light source
| Light source type: | LED | Color temperature (K): | 4000 | Color rendering index CRI: | 80-89 | Replaceability: | Replaceable light source by professional, replaceable ballast |
Optical system
| Optical system: | W | Light sharing: | Symmetric |
Dimensions
| Length (mm): | 469 | Width (mm): | 120 | Height/depth (mm): | 108 | Weight (kg): | 3,6 |
Electrical values
| Protection class: | I | Voltage type: | AC | Type of control gear: | LED operating device current-controlled | Nominal voltage (V): | 220...240 |
| Control gear included: | Yes | No dim function: | Yes |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
Length (mm)
ALIN100S4N1B/ND
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 4000
Optical system: W
Length (mm): 263
ALIN100S4W1B/DALI/HT60
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 4000
Optical system: W
Length (mm): 263
ALIN100S4W1B/ND
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 4000
Optical system: W
Length (mm): 263
ALIN100S4W1B/ND/HT60
Effective luminous flux (lm): 10100
System power (W): 75
Color temperature (K): 4000
Optical system: W
Length (mm): 263
ALIN150M4W2B/ND
Effective luminous flux (lm): 15800
System power (W): 109
Color temperature (K): 4000
Optical system: W
Length (mm): 469
ALIN200M4N2B/ND
Effective luminous flux (lm): 20800
System power (W): 145
Color temperature (K): 4000
Optical system: W
Length (mm): 469
ALIN200M4W2B/DALI
Effective luminous flux (lm): 20200
System power (W): 145
Color temperature (K): 4000
Optical system: W
Length (mm): 469
ALIN200M4W2B/DALI/HT60
Effective luminous flux (lm): 20200
System power (W): 145
Color temperature (K): 4000
Optical system: W
Length (mm): 653
ALIN200M4W2B/ND
Effective luminous flux (lm): 21500
System power (W): 155
Color temperature (K): 4000
Optical system: W
Length (mm): 469
ALIN200M4W2B/ND/HT60
Effective luminous flux (lm): 21500
System power (W): 155
Color temperature (K): 4000
Optical system: W
Length (mm): 653
ALIN300L4N3B/ND
Effective luminous flux (lm): 30600
System power (W): 224
ALIN300L4W3B/DALI
Effective luminous flux (lm): 31800
System power (W): 224
Color temperature (K): 4000
Optical system: W
Length (mm): 638
ALIN300L4W3B/DALI/HT55
Effective luminous flux (lm): 31800
System power (W): 224
Color temperature (K): 4000
Optical system: W
Length (mm): 853
ALIN300L4W3B/ND
Effective luminous flux (lm): 31800
System power (W): 224
Color temperature (K): 4000
Optical system: W
Length (mm): 638
ALIN300L4W3B/ND/HT55
Effective luminous flux (lm): 31800
System power (W): 224
Color temperature (K): 4000
Optical system: W
Length (mm): 852
ALIN400L4N4B/ND
Effective luminous flux (lm): 41300
System power (W): 310
Color temperature (K): 4000
Optical system: W
Length (mm): 925
ALIN400L4W4B/DALI/HT55
Effective luminous flux (lm): 43000
System power (W): 310
Color temperature (K): 4000
Optical system: W
Length (mm): 1153
ALIN400L4W4B/ND
Effective luminous flux (lm): 43000
System power (W): 310
Color temperature (K): 4000
Optical system: W
Length (mm): 925
ALIN400L4W4B/ND/HT55
Effective luminous flux (lm): 43000
System power (W): 310
Color temperature (K): 4000
Optical system: W
Length (mm): 1153
