Product series MODUS BALOV
MODUS BAL OV, opal glass column 100mm, rope susp.,LED 830, no dimmable

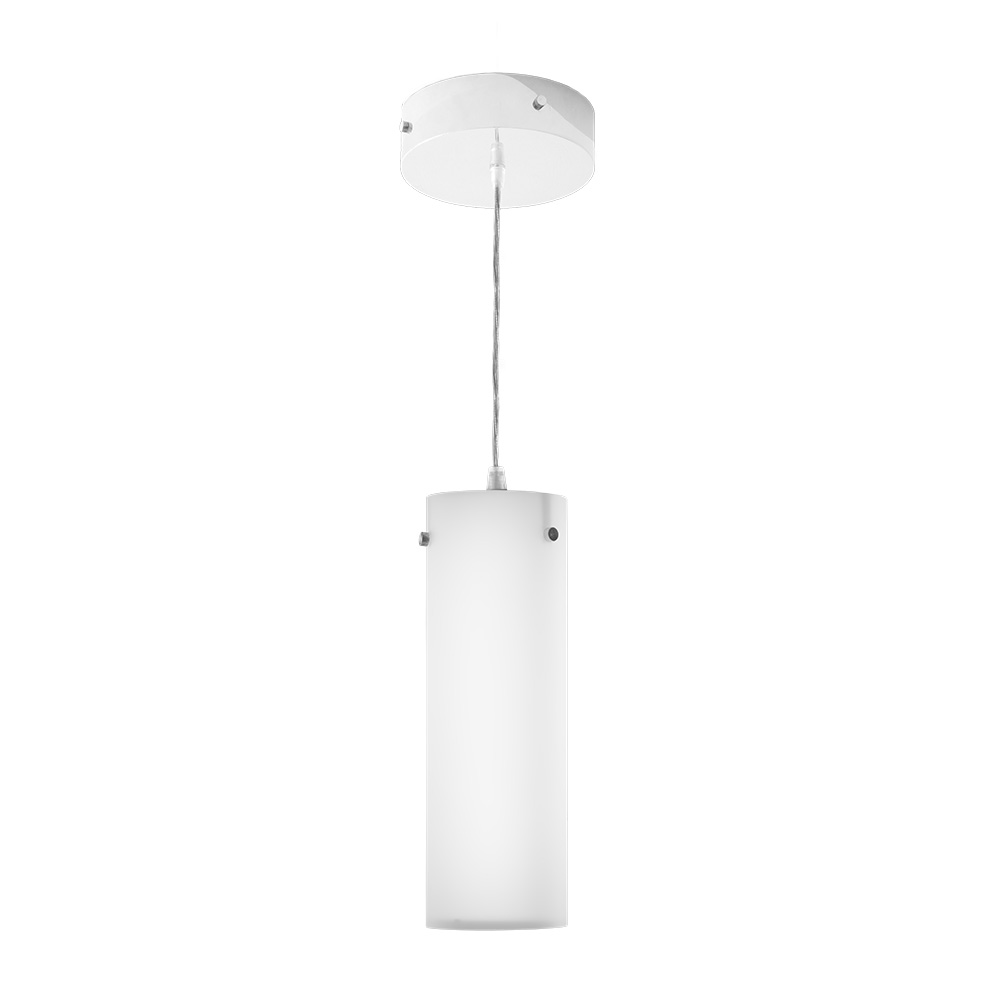

Pendant LED glass luminaire
Code: BALOV100L3V1/600ND
EAN: 8595073717686
This product contains a light source with energy efficiency class D
Luminaire properties
| Product category: | Pendant luminaire | Effective luminous flux (lm): | 1700 | System power (W): | 20 | Luminaire efficacy (lm/W): | 85 |
| Rated lifetime L80/B50 (h): | 80000 | Degree of protection (IP): | IP20 | Color housing: | Chrome | Material housing: | Glass | Light source included: | Yes |
| Suspension supplied with the product: | Yes | Made in Czech republic: | Yes |
Light source
| Light source type: | LED | Color temperature (K): | 3000 | Color rendering index CRI: | 80-89 | Replaceability: | Replaceable light source by professional, replaceable ballast |
| Light source type: | 1990300183005 | Energy efficiency class: | D |
Optical system
| Optical system: | TRIPLEX | Light outlet: | Direct/indirect | Light sharing: | Symmetric | Material cover: | Glass matt/satinized |
Dimensions
| Diameter (mm): | 100 | Height/depth (mm): | 300 | Pendant length (mm): | 150...2000 | Weight (kg): | 1,3 |
Electrical values
| Protection class: | I | Connection type: | Pinching contact | Voltage type: | AC | Type of control gear: | LED operating device current-controlled |
| Nominal voltage (V): | 220...240 | Control gear included: | Yes | Type of wiring: | Ending | No dim function: | Yes |
LoadingFilters
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Diameter (mm)
Height/depth (mm)
BALOV100L3V1/600DALI
Effective luminous flux (lm): 1700
System power (W): 20
Color temperature (K): 3000
Diameter (mm): 100
Height/depth (mm): 300
BALOV100L3V1/600ND
Effective luminous flux (lm): 1700
System power (W): 20
Color temperature (K): 3000
Diameter (mm): 100
Height/depth (mm): 300
BALOV100L4V1/600DALI
Effective luminous flux (lm): 1700
System power (W): 20
Color temperature (K): 4000
Diameter (mm): 100
Height/depth (mm): 300
BALOV100L4V1/600ND
Effective luminous flux (lm): 1700
System power (W): 20
Color temperature (K): 4000
Diameter (mm): 100
Height/depth (mm): 300
