Product series MODUS CR

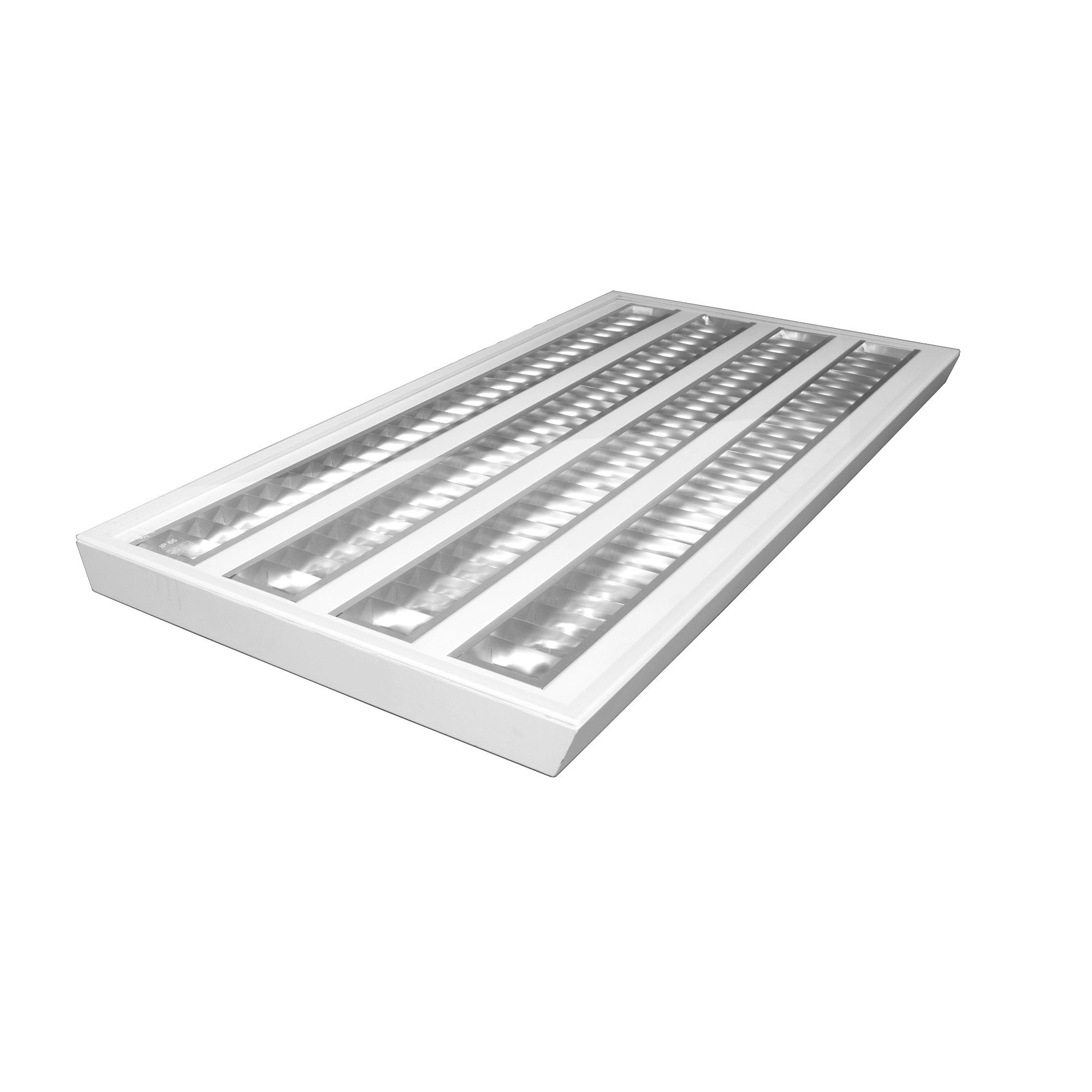

MODUS CR10000, IP65, recessed into raster 600, rectangle D, clear cover + 4x mat Al louvre, antibacterial surface, LED 840
Recessed luminiare for clear rooms
Code: CR10000D4KVM4C600ND
EAN: 8596099078119
Luminaire properties
| Product category: | Ceiling / wall luminaires | Effective luminous flux (lm): | 11000 | System power (W): | 100 | Luminaire efficacy (lm/W): | 110 |
| Rated lifetime L80/B50 (h): | 80000 | Degree of protection (IP): | IP65 | Color housing: | White | Material housing: | Steel | Light source included: | Yes |
| Suitable for built-in mounting: | Yes | Made in Czech republic: | Yes |
Light source
| Light source type: | LED | Color temperature (K): | 4000 | Color rendering index CRI: | 80-89 | Replaceability: | Removeable light source, removeable ballast |
Optical system
| Optical system: | KVM | Light outlet: | Direct | Type of grid: | Matt | Anti-glare limiting UGR: | 19 |
| Light sharing: | Symmetric | Material cover: | Glass transparent |
Dimensions
| Length (mm): | 1245 | Width (mm): | 622 | Height/depth (mm): | 57 | Built-in height/depth (mm): | 57 |
| Raster (mm): | 600 | Weight (kg): | 12 |
Electrical values
| Protection class: | I | Voltage type: | AC | Type of control gear: | LED operating device current-controlled | Nominal voltage (V): | 220...240 |
| No dim function: | Yes |
| Indoor use only: | Yes |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Length (mm)
Raster (mm)
CR10000D4KVM4C600ND
Effective luminous flux (lm): 11000
System power (W): 100
Color temperature (K): 4000
Length (mm): 1245
Raster (mm): 600
CR5000A4KVM4C600DALI
Effective luminous flux (lm): 5000
System power (W): 43
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
CR5000A4KVM4C600DALI/90
Effective luminous flux (lm): 4300
System power (W): 43
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
CR5000A4KVM4C600ND
Effective luminous flux (lm): 5000
System power (W): 43
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
CR5000A4KVM4C600ND/90
Effective luminous flux (lm): 4300
System power (W): 43
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
CR5000A4KVM4C625DALI
Effective luminous flux (lm): 4300
System power (W): 43
CR5000A4KVM4C625DALI/90
Effective luminous flux (lm): 4300
System power (W): 43
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 625
CR5000A4KVM4C625ND
Effective luminous flux (lm): 5000
System power (W): 43
Color temperature (K): 4000
Length (mm): 622
Raster (mm): 600
CR5000A4KVM4D600ND
Effective luminous flux (lm): 5000
System power (W): 43
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
CR5000A5KVM4C600ND
Effective luminous flux (lm): 5000
System power (W): 43
Color temperature (K): 4000
Length (mm): 596
Raster (mm): 600
CR5000C4KVM4C600ND
Effective luminous flux (lm): 5000
System power (W): 48
Color temperature (K): 4000
Length (mm): 1245
Raster (mm): 600
