MODUS EPD

Product series MODUS EPD

12 CCT_4000.jpg
11 L80_80000_h.jpg
220-240 v.png

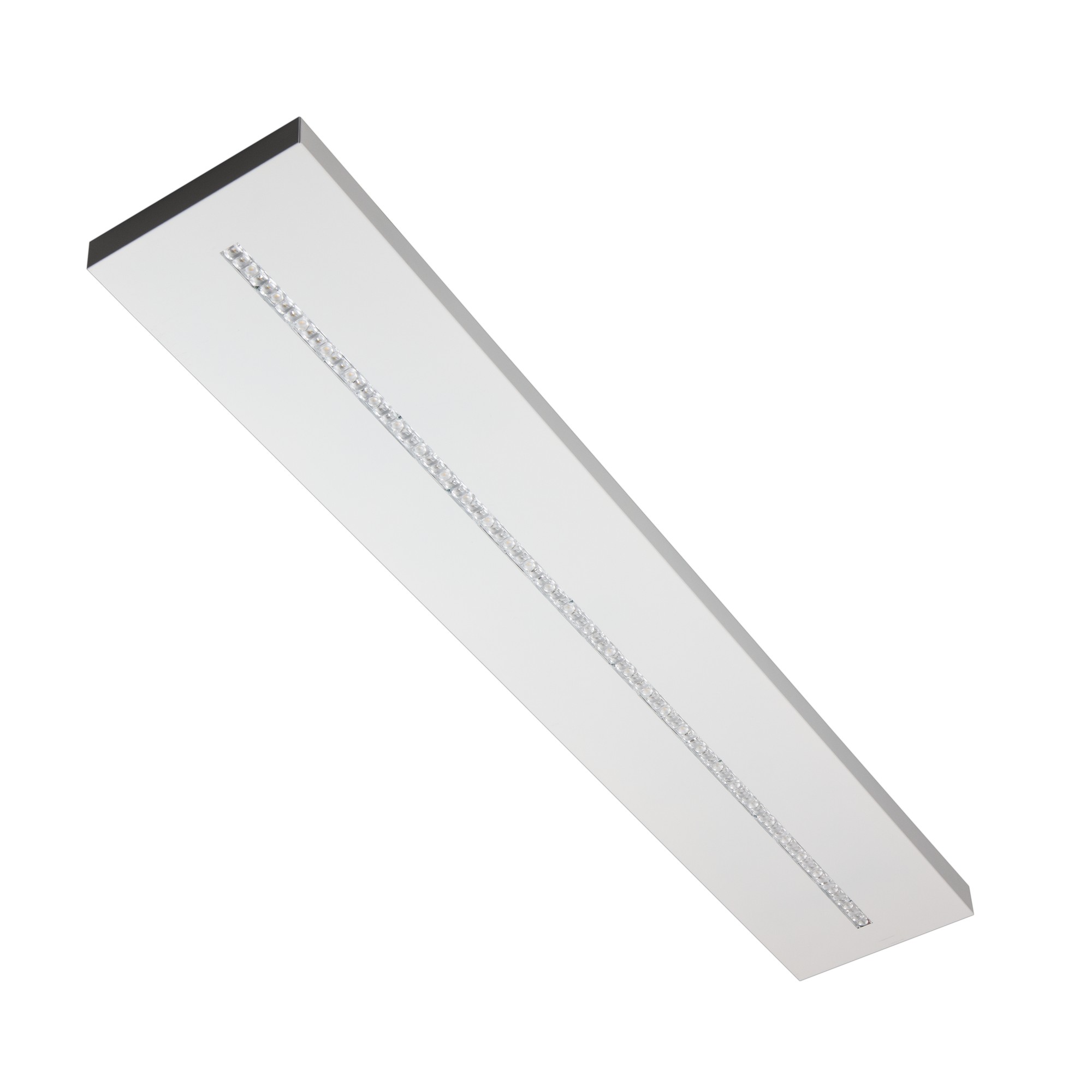

MODUS EPD4000, rectangle M, 1x optic 25° asymetric, LED 840, SELV 700mA

Surfaced luminaires with individual optic

Code: EPD4000RM4Z25AS/1/ND
EAN: 8596099107482

This product contains a light source with energy efficiency class C

Distribution network
Contacts

Luminaire properties

Product category:Ceiling / wall luminairesEffective luminous flux (lm):3800
System power (W):27Luminaire efficacy (lm/W):141
Rated lifetime L80/B50 (h):80000Degree of protection (IP):IP20
Color housing:WhiteSuitable for suspended mounting:Yes
Material housing:Steel
Light source included:Yes
Suitable for surface mounting:YesSuitable for ceiling mounting:Yes
Made in Czech republic:Yes

Light source

Light source type:LEDColor temperature (K):4000
Color rendering index CRI:80-89Replaceability:Replaceable light source by professional, replaceable ballast
Light source type:1990480184003Energy efficiency class:C

Optical system

Optical system:Z25Light outlet:Direct
Anti-glare limiting UGR:19Light sharing:Asymmetric
Fit for monitor workplace:Yes

Dimensions

Length (mm):1230Width (mm):225
Height/depth (mm):40Weight (kg):2

Electrical values

Protection class:IIConnection type:Pinching contact
Type of control gear:LED operating device current-controlledNominal voltage (V):220...240
Control gear included:YesNo dim function:Yes
LoadingLoading

Filters

Effective luminous flux (lm)

1000
7700

System power (W)

14
54
Product name
EPD1000RS4Z60/05/ND
Effective luminous flux (lm): 1000
System power (W): 8
Color temperature (K): 4000
Optical system: Z60
Length (mm): 655
EPD1000RXS4Z60/05/ND
Effective luminous flux (lm): 1000
System power (W): 8
Color temperature (K): 4000
Optical system: Z60
Length (mm): 375
EPD1500RXS4Z60/05/ND
Effective luminous flux (lm): 1300
Color temperature (K): 4000
Optical system: Z60
Length (mm): 375
EPD1500RXS4Z90/05/ND
Effective luminous flux (lm): 1300
Color temperature (K): 4000
Optical system: Z90
Length (mm): 375
EPD2000RS3Z60/1/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 3000
Optical system: Z60
Length (mm): 655
EPD2000RS4Z60/1/DALI
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Optical system: Z60
Length (mm): 655
EPD2000RS4Z60/1/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Optical system: Z60
Length (mm): 655
EPD2000RS4Z90/1/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Optical system: Z90
Length (mm): 655
EPD2000SS4Z60/1/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Optical system: Z60
Length (mm): 595
EPD2000SS4Z90/1/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 4000
Optical system: Z90
Length (mm): 595
EPD3000RM4Z60/1/DALI
Effective luminous flux (lm): 2950
System power (W): 20
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD3000RM4Z90/1/ND
Effective luminous flux (lm): 2950
System power (W): 20
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1230
EPD3000RM4Z90/1/NDNZ3
Effective luminous flux (lm): 2950
System power (W): 20
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1230
EPD4000RM3Z60/1/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: Z60
Length (mm): 1230
EPD4000RM3Z90/1/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: Z90
Length (mm): 1230
EPD4000RM4Z25AS/1/DALI
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z25
Length (mm): 1230
EPD4000RM4Z25AS/1/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z25
Length (mm): 1230
EPD4000RM4Z60/1/DALI
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD4000RM4Z60/1/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD4000RM4Z60/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD4000RM4Z90/1/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1230
EPD4000RM4Z90/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1230
EPD4000RS3Z60/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: Z60
Length (mm): 655
EPD4000RS4Z60/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z60
Length (mm): 655
EPD4000RS4Z90/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z90
Length (mm): 655
EPD4000SS2Z60/2/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 2700
Optical system: Z60
Length (mm): 595
EPD4000SS3Z60/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: Z60
Length (mm): 595
EPD4000SS3Z60/3/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 3000
Optical system: Z60
Length (mm): 595
EPD4000SS3Z90/3/DALI
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 3000
Optical system: Z90
Length (mm): 595
EPD4000SS3Z90/3/DALI/9005
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 3000
Optical system: Z90
Length (mm): 595
EPD4000SS3Z90/3/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 3000
Optical system: Z90
Length (mm): 595
EPD4000SS4Z60/2/DALI
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z60
Length (mm): 595
EPD4000SS4Z60/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z60
Length (mm): 595
EPD4000SS4Z60/3/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 4000
Optical system: Z60
Length (mm): 595
EPD4000SS4Z60/3/ND/NZ3
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 4000
Optical system: Z60
Length (mm): 595
EPD4000SS4Z60/4X/DALI
Effective luminous flux (lm): 4000
System power (W): 28
Color temperature (K): 4000
Optical system: Z60
Length (mm): 595
EPD4000SS4Z90/2/DALI
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z90
Length (mm): 595
EPD4000SS4Z90/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: Z90
Length (mm): 595
EPD4000SS4Z90/3/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 4000
Optical system: Z90
Length (mm): 595
EPD4000SS5Z60/2/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 5700
Optical system: Z60
Length (mm): 595
EPD4000SS5Z60/3/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 5700
Optical system: Z60
Length (mm): 595
EPD4000SS5Z90/3/ND
Effective luminous flux (lm): 4000
System power (W): 25
Color temperature (K): 5700
Optical system: Z90
Length (mm): 595
EPD5000RM4Z60/2/ND
Effective luminous flux (lm): 5000
System power (W): 34
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD5000RM4Z90/2/ND
Effective luminous flux (lm): 5000
System power (W): 34
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1230
EPD5000SS4Z90/3/ND
Effective luminous flux (lm): 5100
System power (W): 35
Color temperature (K): 4000
Optical system: Z90
Length (mm): 595
EPD6000RM3Z60/2/ND
Effective luminous flux (lm): 5900
System power (W): 41
Color temperature (K): 3000
Optical system: Z60
Length (mm): 1230
EPD6000RM3Z90/2/ND
Effective luminous flux (lm): 5900
System power (W): 41
Color temperature (K): 3000
Optical system: Z90
Length (mm): 1230
EPD6000RM4Z60/2/DALI
Effective luminous flux (lm): 5900
System power (W): 41
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD6000RM4Z60/2/ND
Effective luminous flux (lm): 5900
System power (W): 41
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD6000RM4Z90/2/ND
Effective luminous flux (lm): 5900
System power (W): 41
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1230
EPD6000SS3Z60/3/ND
Effective luminous flux (lm): 5800
System power (W): 41
Color temperature (K): 3000
Optical system: Z60
Length (mm): 595
EPD6000SS3Z60/3/NDNZ
Effective luminous flux (lm): 5800
System power (W): 41
Color temperature (K): 3000
Optical system: Z60
Length (mm): 595
EPD6000SS4Z60/3/ND
Effective luminous flux (lm): 5800
System power (W): 41
Color temperature (K): 4000
Optical system: Z60
Length (mm): 595
EPD6000SS4Z90/2/ND
Effective luminous flux (lm): 5400
System power (W): 41
Color temperature (K): 4000
Optical system: Z90
Length (mm): 595
EPD6000SS4Z90/3/ND
Effective luminous flux (lm): 5800
System power (W): 41
Color temperature (K): 4000
Optical system: Z90
Length (mm): 595
EPD8000RM3Z25AS/2/ND
Effective luminous flux (lm): 7700
System power (W): 54
Color temperature (K): 3000
Optical system: Z25
Length (mm): 1230
EPD8000RM3Z60/2/ND
Effective luminous flux (lm): 7700
System power (W): 54
Color temperature (K): 3000
Optical system: Z60
Length (mm): 1230
EPD8000RM4Z60/2/DALI
Effective luminous flux (lm): 7700
System power (W): 54
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD8000RM4Z60/2/ND
Effective luminous flux (lm): 7700
System power (W): 54
Color temperature (K): 4000
Optical system: Z60
Length (mm): 1230
EPD8000RM4Z90/2/ND
Effective luminous flux (lm): 7700
System power (W): 54
Color temperature (K): 4000
Optical system: Z90
Length (mm): 1230
EPD8000RM6Z90/2/ND
Effective luminous flux (lm): 7700
System power (W): 54
Color temperature (K): 6500
Optical system: Z90
Length (mm): 1230
Show all versions
 Back to serie MODUS EPD

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
