MODUS SBL M

Product series MODUS SBL

MODUS SBL M
12 CCT_4000.jpg
11 L80_80000_h.jpg
třída ochrany I.PNG
220-240 v.png
1 M10_nasten_celkove_osv.jpg

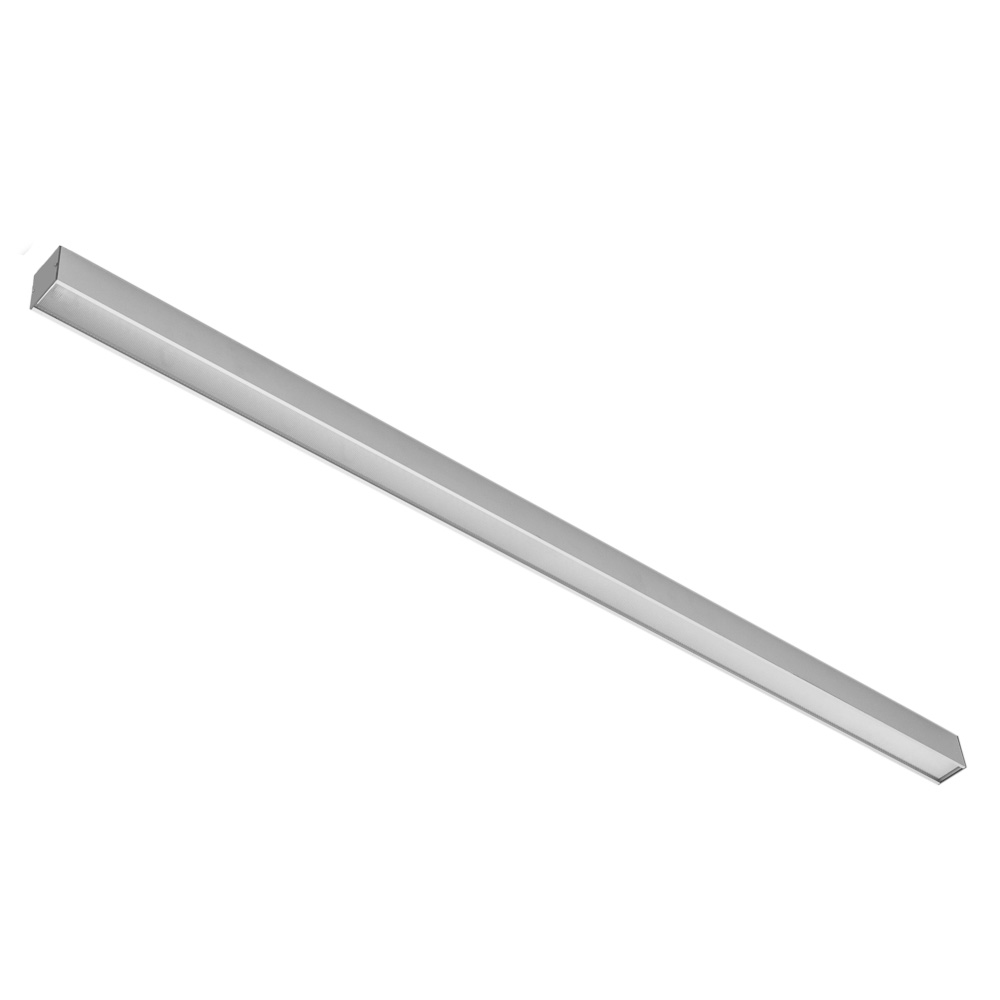

MODUS SBL3000, 1185mm, white, prizmatic cover, LED 840, 500mA

Tiny surfaced/pendant cover fitting

Code: SBL3000MKN4/XB/ND
EAN: 8596099059194

This product contains a light source with energy efficiency class C

Distribution network
Contacts

Luminaire properties

Product category:Ceiling / wall luminairesEffective luminous flux (lm):3000
System power (W):29Luminaire efficacy (lm/W):103
Rated lifetime L80/B50 (h):80000Degree of protection (IP):IP20
Color housing:WhiteSuitable for suspended mounting:Yes
Material housing:Aluminium
Light source included:Yes
Suitable for wall mounting:YesSuitable for surface mounting:Yes
Suitable for ceiling mounting:YesMade in Czech republic:Yes

Light source

Light source type:LEDColor temperature (K):4000
Color rendering index CRI:80-89Replaceability:Removeable light source, replaceable ballast
Light source type:1991080184002Energy efficiency class:C

Optical system

Optical system:KNLight outlet:Direct
Light sharing:SymmetricMaterial cover:Plastic, structured

Dimensions

Length (mm):1185Width (mm):42
Height/depth (mm):45Weight (kg):1,5

Electrical values

Protection class:IVoltage type:AC
Type of control gear:LED operating device current-controlledNominal voltage (V):220...240
Control gear included:YesNo dim function:Yes
LoadingLoading

Filters

Effective luminous flux (lm)

1300
4200

System power (W)

15
40
Product name
SBL1500SKN3/B/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
SBL1500SKN3/B/ND/RCONT
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 3000
Length (mm): 605
SBL1500SKN3/B/ND/REND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
Suitable for light line configuration: Yes
SBL1500SKN3/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 3000
Length (mm): 605
SBL1500SKN3/ND/90
Effective luminous flux (lm): 1300
System power (W): 15
Color temperature (K): 3000
Length (mm): 605
SBL1500SKN3/ND/RCONT
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
Suitable for light line configuration: Yes
SBL1500SKN3/X/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 3000
Length (mm): 605
SBL1500SKN3/X/ND/90
Effective luminous flux (lm): 1300
System power (W): 15
Color temperature (K): 3000
Length (mm): 605
SBL1500SKN3/XB/DALI
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
SBL1500SKN3/XB/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 3000
Length (mm): 605
SBL1500SKN3/XC/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 3000
Length (mm): 605
SBL1500SKN4/B/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
SBL1500SKN4/B/ND/RCONT
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
Suitable for light line configuration: Yes
SBL1500SKN4/B/ND/REND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
Suitable for light line configuration: Yes
SBL1500SKN4/C/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
SBL1500SKN4/C/ND/RCONT
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
Suitable for light line configuration: Yes
SBL1500SKN4/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
SBL1500SKN4/ND/RCONT
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
Suitable for light line configuration: Yes
SBL1500SKN4/ND/REND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
Suitable for light line configuration: Yes
SBL1500SKN4/ND/RSTART
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
Suitable for light line configuration: Yes
SBL1500SKN4/X/DALI
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
SBL1500SKN4/X/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
SBL1500SKN4/XB/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
SBL1500SKN4/XC/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
SBL1500SKO3/ND
Effective luminous flux (lm): 1300
System power (W): 15
Color temperature (K): 3000
Length (mm): 605
SBL1500SKO3/XB/DALI
Effective luminous flux (lm): 1300
System power (W): 15
Color temperature (K): 3000
Length (mm): 605
SBL1500SKO3/XB/ND
Effective luminous flux (lm): 1300
System power (W): 15
Color temperature (K): 3000
Length (mm): 605
Suitable for light line configuration: Yes
SBL1500SKO4/B/ND
Effective luminous flux (lm): 1300
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
SBL1500SKO4/C/ND/RCONT
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
SBL1500SKO4/C/ND/REND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
SBL1500SKO4/ND/REND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
Suitable for light line configuration: Yes
SBL1500SKO4/XC/ND
Effective luminous flux (lm): 1500
System power (W): 15
Color temperature (K): 4000
Length (mm): 605
SBL2000LKN3/ND/90
Effective luminous flux (lm): 1700
System power (W): 18
Color temperature (K): 3000
Length (mm): 1485
SBL2000LKN4/ND/RCONT
Effective luminous flux (lm): 2000
System power (W): 18
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL2000LKN4/ND/REND
Effective luminous flux (lm): 2000
System power (W): 18
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL2000LKN4/ND/RSTART
Effective luminous flux (lm): 2000
System power (W): 18
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL2000LKN4/X/ND
Effective luminous flux (lm): 2000
System power (W): 18
Color temperature (K): 4000
Length (mm): 1485
SBL2000MKN3/X/ND
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 3000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL2000MKN4/ND/RCONT
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL2000MKN4/ND/RSTART
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL2000MKN4/X/ND
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 4000
Length (mm): 1185
SBL2000MKN4/XC/ND
Effective luminous flux (lm): 2200
System power (W): 20
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000LKN4/ND/RCONT
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL3000LKN4/ND/REND
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL3000LKN4/ND/RSTART
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL3000LKN4/X/ND
Effective luminous flux (lm): 2900
System power (W): 27
Color temperature (K): 4000
Length (mm): 1485
SBL3000MKN3/B/DALI/REND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN3/B/DALI/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN3/B/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
SBL3000MKN3/B/ND/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN3/B/ND/REND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN3/B/ND/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN3/DALI/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN3/DALI/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN3/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
SBL3000MKN3/ND/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN3/ND/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN3/X/DALI
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
SBL3000MKN3/X/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
SBL3000MKN3/XB/DALI
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
SBL3000MKN3/XB/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
SBL3000MKN3/XC/DALI
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
SBL3000MKN3/XC/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
SBL3000MKN4/B/DALI/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN4/B/DALI/REND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN4/B/DALI/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN4/B/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
SBL3000MKN4/B/ND/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN4/B/ND/REND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN4/B/ND/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN4/C/DALI/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN4/C/DALI/REND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN4/C/DALI/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN4/C/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
SBL3000MKN4/C/ND/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN4/C/ND/REND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN4/C/ND/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN4/DALI/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN4/DALI/REND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN4/DALI/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN4/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
SBL3000MKN4/ND/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN4/ND/REND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
SBL3000MKN4/ND/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKN4/X/DALI
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
SBL3000MKN4/X/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
SBL3000MKN4/XB/DALI
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
SBL3000MKN4/XB/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
SBL3000MKN4/XC/ND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
SBL3000MKO3/B/ND/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKO3/B/ND/REND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKO3/B/ND/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKO3/X/ND
Effective luminous flux (lm): 2800
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
SBL3000MKO3/XB/ND
Effective luminous flux (lm): 2800
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
SBL3000MKO3/XC/ND
Effective luminous flux (lm): 2800
System power (W): 29
Color temperature (K): 3000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKO4/C/ND/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKO4/C/ND/REND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKO4/C/ND/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKO4/ND/RCONT
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKO4/ND/REND
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKO4/ND/RSTART
Effective luminous flux (lm): 3000
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL3000MKO4/XC/DALI
Effective luminous flux (lm): 2800
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
SBL3000MKO4/XC/ND
Effective luminous flux (lm): 2800
System power (W): 29
Color temperature (K): 4000
Length (mm): 1185
SBL4000LKN3/B/DALI/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN3/B/DALI/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN3/B/DALI/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN3/B/ND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
SBL4000LKN3/B/ND/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN3/B/ND/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN3/B/ND/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN3/C/DALI/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN3/C/DALI/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN3/C/DALI/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN3/C/ND/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN3/C/ND/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN3/C/ND/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN3/ND/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN3/X/DALI
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
SBL4000LKN3/X/DALIT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
SBL4000LKN3/X/ND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
SBL4000LKN3/XB/DALI
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
SBL4000LKN3/XB/ND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
SBL4000LKN3/XC/DALI
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
SBL4000LKN3/XC/ND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
SBL4000LKN4/B/DALI/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/B/DALI/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/B/DALI/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/B/ND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
SBL4000LKN4/B/ND/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/B/ND/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/B/ND/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/C/DALI/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/C/DALI/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/C/DALI/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/C/ND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
SBL4000LKN4/C/ND/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/C/ND/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/C/ND/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/DALI/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/DALI/RCONT/90
Effective luminous flux (lm): 3150
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/DALI/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/DALI/REND/90
Effective luminous flux (lm): 3150
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/DALI/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/DALI/RSTART/90
Effective luminous flux (lm): 3150
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/ND/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/ND/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/ND/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN4/X/DALI
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
SBL4000LKN4/X/ND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
SBL4000LKN4/XB/DALI
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
SBL4000LKN4/XB/ND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
SBL4000LKN4/XC/DALI
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
SBL4000LKN4/XC/ND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
SBL4000LKN5/B/ND/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 5700
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN5/B/ND/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 5700
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKN5/B/ND/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 5700
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKO3/B/ND/RSTART
Effective luminous flux (lm): 3300
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKO3/DALI/RCONT
Effective luminous flux (lm): 3300
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKO3/X/DALIT
Effective luminous flux (lm): 3300
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKO3/X/ND
Effective luminous flux (lm): 3300
System power (W): 35
Color temperature (K): 3000
Length (mm): 1485
SBL4000LKO4/B/ND/REND
Effective luminous flux (lm): 3300
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKO4/B/ND/RSTART
Effective luminous flux (lm): 3300
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKO4/C/DALI/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKO4/C/DALI/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKO4/C/ND/RCONT
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKO4/C/ND/REND
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKO4/C/ND/RSTART
Effective luminous flux (lm): 3700
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKO4/ND/RCONT
Effective luminous flux (lm): 3300
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKO4/ND/REND
Effective luminous flux (lm): 3300
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKO4/ND/RSTART
Effective luminous flux (lm): 3300
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
Suitable for light line configuration: Yes
SBL4000LKO4/XB/DALI
Effective luminous flux (lm): 3300
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
SBL4000LKO4/XC/ND
Effective luminous flux (lm): 3300
System power (W): 35
Color temperature (K): 4000
Length (mm): 1485
SBL4000MKN3/B/ND/RCONT
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 3000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL4000MKN3/B/ND/REND
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 3000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL4000MKN3/B/ND/RSTART
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 3000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL4000MKN3/XC/ND
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 3000
Length (mm): 1185
SBL4000MKN4/B/ND/RCONT
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL4000MKN4/B/ND/REND
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL4000MKN4/B/ND/RSTART
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL4000MKN4/C/ND/RCONT
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 4000
Length (mm): 1185
Suitable for light line configuration: Yes
SBL4000MKN4/XB/DALI
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 4000
Length (mm): 1185
SBL4000MKN4/XB/ND
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 4000
Length (mm): 1185
SBL4000MKN4/XC/ND
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 4000
Length (mm): 1185
SBL4000MKO4/XC/DALI
Effective luminous flux (lm): 4200
System power (W): 40
Color temperature (K): 4000
Length (mm): 1185
Show all versions
 Back to serie MODUS SBL

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
