MODUS TELW - widebeam

Product series MODUS TELX

MODUS TELW - widebeam
12 CCT_4000.jpg
11 L80_80000_h.jpg
třída ochrany I.PNG
220-240 v.png

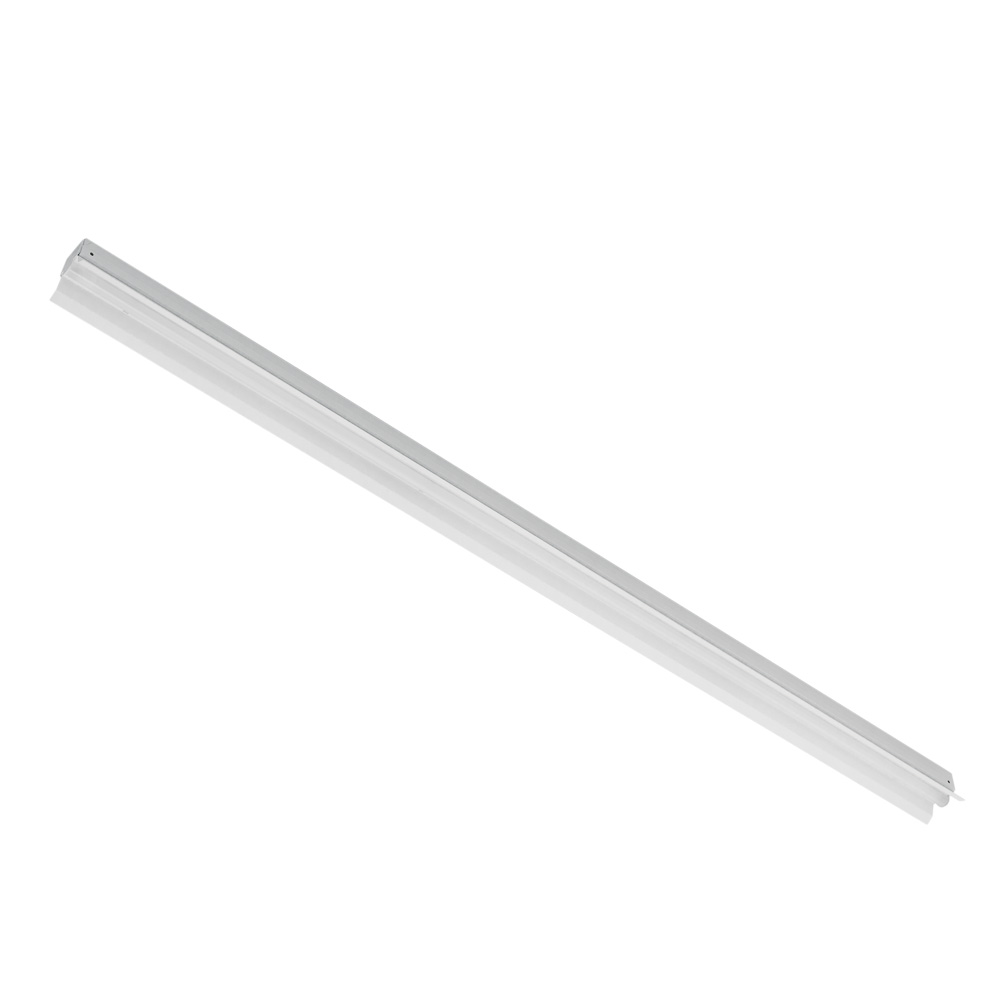

MODUS TELX4000, Standard, 1186mm, LED 840, wide beam,

Industrial IP20 batten luminaire

Code: TELXW4000M4/ND
EAN: 8596099071837

This product contains a light source with energy efficiency class C

Distribution network
Contacts

Luminaire properties

Product category:Batten luminaireEffective luminous flux (lm):3900
System power (W):27Rated lifetime L80/B50 (h):80000
Degree of protection (IP):IP20Color housing:White
Material:SteelLight source included:Yes
Made in Czech republic:Yes

Light source

Light source type:LEDColor temperature (K):4000
Color rendering index CRI:80-89Replaceability:Replaceable light source by professional, replaceable ballast
Light source type:1991080184002Energy efficiency class:C

Optical system

Optical system:TELXWLight distributor:Reflector

Dimensions

Length (mm):1186Width (mm):59
Height/depth (mm):57Weight (kg):1,4

Electrical values

Protection class:IVoltage type:AC
Type of control gear:LED operating device current-controlledNominal voltage (V):220...240
Control gear included:YesNo dim function:Yes
LoadingLoading

Filters

Effective luminous flux (lm)

1500
10300

System power (W)

12
75
Product name
TELX10000L3/ND
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX10000L4/DALI
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX10000L4/ND
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX10000L4/ND/EU
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX10000L4/ND/R
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX10000L5/ND
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX10000L5/ND/R
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX10000L6/ND
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX10000L6/ND/90
Effective luminous flux (lm): 8400
System power (W): 69
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX10000L6/ND/R
Effective luminous flux (lm): 9900
System power (W): 69
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX1500M3/DALI
Effective luminous flux (lm): 1650
System power (W): 12
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX1500M3/ND
Effective luminous flux (lm): 1650
System power (W): 12
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX1500S3/ND
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Optical system: TELX
Length (mm): 605
TELX1500S3/ND/P1
Effective luminous flux (lm): 1500
Color temperature (K): 3000
Optical system: TELX
Length (mm): 605
TELX1500S4/DALI/REND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Optical system: TELX
Length (mm): 605
TELX1500S4/ND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Optical system: TELX
Length (mm): 605
TELX1500S4/ND/REND
Effective luminous flux (lm): 1500
Color temperature (K): 4000
Optical system: TELX
Length (mm): 605
TELX2000S2/ND/90
Effective luminous flux (lm): 1700
System power (W): 14
Color temperature (K): 2700
Optical system: TELX
Length (mm): 605
TELX2000S3/DALI
Effective luminous flux (lm): 2100
System power (W): 14
TELX2000S3/ND
Effective luminous flux (lm): 2100
System power (W): 14
Color temperature (K): 3000
Optical system: TELX
Length (mm): 605
TELX2000S3/ND/P1
Effective luminous flux (lm): 2100
System power (W): 14
Color temperature (K): 3000
Optical system: TELX
Length (mm): 605
TELX2000S4/DALI
Effective luminous flux (lm): 2100
System power (W): 14
Color temperature (K): 4000
Optical system: TELX
Length (mm): 605
TELX2000S4/ND
Effective luminous flux (lm): 2100
System power (W): 14
Color temperature (K): 4000
Optical system: TELX
Length (mm): 605
TELX2000S4/ND/REND
Effective luminous flux (lm): 2100
System power (W): 14
Color temperature (K): 4000
Optical system: TELX
Length (mm): 605
TELX2000S6/ND
Effective luminous flux (lm): 2100
System power (W): 14
Color temperature (K): 6500
Optical system: TELX
Length (mm): 605
TELX2000S6/ND/P1
Effective luminous flux (lm): 2100
System power (W): 14
Color temperature (K): 6500
Optical system: TELX
Length (mm): 605
TELX2500XM2/DALI/R
Effective luminous flux (lm): 2550
System power (W): 18
Color temperature (K): 2700
Optical system: TELX
Length (mm): 750
TELX2500XM3/DALI
Effective luminous flux (lm): 2550
System power (W): 18
Color temperature (K): 3000
Optical system: TELX
Length (mm): 750
TELX2500XM3/ND
Effective luminous flux (lm): 2550
System power (W): 18
Color temperature (K): 3000
Optical system: TELX
Length (mm): 750
TELX2500XM4/DALI
Effective luminous flux (lm): 2550
System power (W): 18
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX2500XM4/DALI/R
Effective luminous flux (lm): 2550
System power (W): 18
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX2500XM4/ND
Effective luminous flux (lm): 2550
System power (W): 18
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX2500XM4/ND/R
Effective luminous flux (lm): 2550
System power (W): 18
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX3000L3/ND
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX3000L4/ND/R
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX3000M3/DALI
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX3000M3/DALI/P1
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX3000M3/DALI/R
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX3000M3/ND
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX3000M3/ND/P1
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX3000M3/ND/R
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX3000M3/ND/S56
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX3000M4/DALI/R
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX3000M4/ND
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX3000M4/ND/P1
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX3000M4/ND/R
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX3000M4/ND/S56
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX3000M6/ND
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1186
TELX3000S3/ND
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 3000
Optical system: TELX
Length (mm): 604
TELX3000S4/DALI
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 4000
Optical system: TELX
Length (mm): 605
TELX3000S4/ND
Effective luminous flux (lm): 3000
System power (W): 21
TELX3000S4/ND/S56
Effective luminous flux (lm): 3000
System power (W): 21
Color temperature (K): 4000
Optical system: TELX
Length (mm): 605
TELX3500XM3/DALI
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: TELX
Length (mm): 750
TELX3500XM3/DALI/R
Effective luminous flux (lm): 3600
System power (W): 27
Color temperature (K): 3000
Optical system: TELX
Length (mm): 750
TELX3500XM3/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: TELX
Length (mm): 750
TELX3500XM4/DALI
Effective luminous flux (lm): 3600
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX3500XM4/DALI/R
Effective luminous flux (lm): 3600
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX3500XM4/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX3500XM4/ND/R
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX4000M2/DALI/R
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 2700
Optical system: TELX
Length (mm): 1186
TELX4000M2/ND
Effective luminous flux (lm): 4100
System power (W): 27
TELX4000M2/ND/90/P
Effective luminous flux (lm): 3400
System power (W): 27
Color temperature (K): 2700
Optical system: TELX
Length (mm): 1186
TELX4000M3/DALI
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX4000M3/DALI/P1
Effective luminous flux (lm): 4100
System power (W): 27
TELX4000M3/DALI/R
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX4000M3/ND
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX4000M3/ND/P1
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX4000M3/ND/R
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX4000M4/DALI
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/DALI/P1
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/DALI/R
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/DALIT
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/ND
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/ND/90
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/ND/EU
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/ND/P1
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/ND/R
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M4/ND/S56
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX4000M5/DALI
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1186
TELX4000M5/ND
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1186
TELX4000M5/ND/P1
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1186
TELX4000M6/ND
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1186
TELX4000M6/ND/P1
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1186
TELX5000L2/DALI/P1
Effective luminous flux (lm): 4400
System power (W): 34
Color temperature (K): 2700
Optical system: TELX
Length (mm): 1484
TELX5000L2/DALI/R
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 2700
Optical system: TELX
Length (mm): 1484
TELX5000L2/ND
Effective luminous flux (lm): 5200
System power (W): 34
TELX5000L2/ND/90/P
Effective luminous flux (lm): 4400
System power (W): 34
Color temperature (K): 2700
Optical system: TELX
Length (mm): 1484
TELX5000L2/ND/R
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 2700
Optical system: TELX
Length (mm): 1484
TELX5000L3/DALI
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L3/DALI/90
Effective luminous flux (lm): 4400
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L3/DALI/R
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L3/ND
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L3/ND/P1
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L3/ND/R
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L3/ND/R/90
Effective luminous flux (lm): 4400
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L3/ND/S56
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L3/NDNZ
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX5000L4/DALI
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX5000L4/DALI/R
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX5000L4/ND
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX5000L4/ND/90
Effective luminous flux (lm): 4450
System power (W): 34
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX5000L4/ND/P1
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX5000L4/ND/R
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX5000L4/NDNZ
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX5000L5/ND
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX5000L5/ND/P1
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX5000L5/ND/R
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX5000L6/ND
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX5000L6/ND/90
Effective luminous flux (lm): 4200
System power (W): 34
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX5000L6/ND/P1
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX5000L6/ND/R
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX5000L6/ND/R/90
Effective luminous flux (lm): 4200
System power (W): 34
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX5000LMIXW/R
Effective luminous flux (lm): 4800
System power (W): 37
Color temperature (K): 2700...6500
Optical system: TELX
Length (mm): 1484
TELX5000XM4/DALI
Effective luminous flux (lm): 5100
System power (W): 35
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX5000XM4/ND
Effective luminous flux (lm): 5100
System power (W): 35
Color temperature (K): 4000
Optical system: TELX
Length (mm): 750
TELX5000XM5/ND
Effective luminous flux (lm): 5100
System power (W): 35
Color temperature (K): 5700
Optical system: TELX
Length (mm): 750
TELX5500M3/DALI
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX5500M3/DALI/R
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX5500M3/ND
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX5500M3/ND/R
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1186
TELX5500M4/DALI
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX5500M4/DALI/R
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX5500M4/ND
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX5500M4/ND/R
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELX5500M5/ND
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1186
TELX5500M5/ND/90
Effective luminous flux (lm): 4900
System power (W): 42
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1186
TELX5500M5/ND/R
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1186
TELX5500M6/ND
Effective luminous flux (lm): 5800
System power (W): 42
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1186
TELX7000L3/DALI/R
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX7000L3/ND
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX7000L3/ND/R
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 3000
Optical system: TELX
Length (mm): 1484
TELX7000L4/DALI
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX7000L4/DALI/R
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX7000L4/ND
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX7000L4/ND/R
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1484
TELX7000L5/DALI
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX7000L5/ND
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX7000L5/ND/90
Effective luminous flux (lm): 6200
System power (W): 50
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX7000L5/ND/R
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELX7000L6/ND
Effective luminous flux (lm): 7250
System power (W): 50
Color temperature (K): 6500
Optical system: TELX
Length (mm): 1484
TELX7000M4/ND
Effective luminous flux (lm): 7500
System power (W): 62
Color temperature (K): 4000
Optical system: TELX
Length (mm): 1186
TELXAS3000M4/ND
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1186
TELXDPM10000L3/ND
Effective luminous flux (lm): 7300
System power (W): 69
Color temperature (K): 3000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM10000L4/ND
Effective luminous flux (lm): 7300
System power (W): 69
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM10000L4/ND/R
Effective luminous flux (lm): 7300
System power (W): 69
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM10000L5/ND
Effective luminous flux (lm): 7300
System power (W): 69
Color temperature (K): 5700
Optical system: TELXDPM
Length (mm): 1484
TELXDPM10000L5/ND/R
Effective luminous flux (lm): 7300
System power (W): 69
Color temperature (K): 5700
Optical system: TELXDPM
Length (mm): 1484
TELXDPM2500XM4/ND
Effective luminous flux (lm): 1850
System power (W): 18
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 750
TELXDPM2500XM4/ND/R
Effective luminous flux (lm): 1850
System power (W): 18
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 750
TELXDPM4000M3/ND
Effective luminous flux (lm): 3000
System power (W): 27
Color temperature (K): 3000
Optical system: TELXDPM
Length (mm): 1186
TELXDPM4000M4/ND/R
Effective luminous flux (lm): 3000
System power (W): 27
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1186
TELXDPM5000L3/ND
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 3000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM5000L3/ND/R
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 3000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM5000L4/ND
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM5000L4/ND/P1
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM5000L4/ND/R
Effective luminous flux (lm): 3800
System power (W): 34
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM5000XM4/ND
Effective luminous flux (lm): 3800
System power (W): 35
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 750
TELXDPM5500M3/ND
Effective luminous flux (lm): 4200
System power (W): 42
Color temperature (K): 3000
Optical system: TELXDPM
Length (mm): 1186
TELXDPM5500M4/ND
Effective luminous flux (lm): 4200
System power (W): 42
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1186
TELXDPM5500M4/ND/R
Effective luminous flux (lm): 4200
System power (W): 42
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1186
TELXDPM5500M5/ND
Effective luminous flux (lm): 4200
System power (W): 42
Color temperature (K): 5700
Optical system: TELXDPM
Length (mm): 1186
TELXDPM7000L4/DALI/R
Effective luminous flux (lm): 5250
System power (W): 50
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM7000L4/ND
Effective luminous flux (lm): 5250
System power (W): 50
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM7000L4/ND/R
Effective luminous flux (lm): 5250
System power (W): 50
Color temperature (K): 4000
Optical system: TELXDPM
Length (mm): 1484
TELXDPM7000L5/ND
Effective luminous flux (lm): 5250
System power (W): 50
Color temperature (K): 5700
Optical system: TELXDPM
Length (mm): 1484
TELXDPM7000L5/ND/R
Effective luminous flux (lm): 5250
System power (W): 50
Color temperature (K): 5700
Optical system: TELXDPM
Length (mm): 1484
TELXN10000L3/ND
Effective luminous flux (lm): 9150
System power (W): 69
Color temperature (K): 3000
Optical system: TELXN
Length (mm): 1484
TELXN10000L4/DALI/P1
Effective luminous flux (lm): 9150
System power (W): 69
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN10000L4/DALIT
Effective luminous flux (lm): 9150
System power (W): 69
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN10000L4/ND
Effective luminous flux (lm): 9150
System power (W): 69
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN10000L4/ND/P
Effective luminous flux (lm): 9150
System power (W): 69
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN10000L4/ND/P1
Effective luminous flux (lm): 9150
System power (W): 69
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN10000L4/ND/R
Effective luminous flux (lm): 9150
System power (W): 69
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN2000S4/ND/REND
Effective luminous flux (lm): 2100
System power (W): 14
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 605
TELXN3000M3/DALI
Effective luminous flux (lm): 2900
System power (W): 21
Color temperature (K): 3000
Optical system: TELXN
Length (mm): 1186
TELXN3000M3/ND
Effective luminous flux (lm): 2900
System power (W): 21
Color temperature (K): 3000
Optical system: TELXN
Length (mm): 1186
TELXN3000M4/ND
Effective luminous flux (lm): 2900
System power (W): 21
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1186
TELXN3500XM4/ND
Effective luminous flux (lm): 3500
System power (W): 27
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 750
TELXN4000M3/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 3000
Optical system: TELXN
Length (mm): 1186
TELXN4000M4/ND
Effective luminous flux (lm): 3800
System power (W): 27
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1186
TELXN5000L3/ND
Effective luminous flux (lm): 4800
System power (W): 34
Color temperature (K): 3000
Optical system: TELXN
Length (mm): 1484
TELXN5000L3/ND/R
Effective luminous flux (lm): 4800
System power (W): 34
Color temperature (K): 3000
Optical system: TELXN
Length (mm): 1484
TELXN5000L4/ND
Effective luminous flux (lm): 4800
System power (W): 34
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN5000L4/ND/R
Effective luminous flux (lm): 4800
System power (W): 34
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN5000L5/ND
Effective luminous flux (lm): 4800
System power (W): 34
Color temperature (K): 5700
Optical system: TELXN
Length (mm): 1484
TELXN5000XM4/ND
Effective luminous flux (lm): 5200
System power (W): 34
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 750
TELXN5500M4/DALI
Effective luminous flux (lm): 5350
System power (W): 42
Color temperature (K): 4000
Optical system: TELN
Length (mm): 1186
TELXN7000L3/ND
Effective luminous flux (lm): 6700
System power (W): 50
Color temperature (K): 3000
Optical system: TELXN
Length (mm): 1484
TELXN7000L4/DALI/P1
Effective luminous flux (lm): 6700
System power (W): 50
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN7000L4/ND
Effective luminous flux (lm): 6700
System power (W): 50
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN7000L4/ND/R
Effective luminous flux (lm): 6700
System power (W): 50
Color temperature (K): 4000
Optical system: TELXN
Length (mm): 1484
TELXN7000L5/ND
Effective luminous flux (lm): 6700
System power (W): 50
Color temperature (K): 5700
Optical system: TELXN
Length (mm): 1484
TELXW10000L4/DALI
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW10000L4/DALI/R
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW10000L4/ND
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW10000L4/ND/EU
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW10000L4/ND/P1
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW10000L4/ND/R
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW10000L5/DALI
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1484
TELXW10000L5/ND
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1484
TELXW10000L5/ND/P1
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1484
TELXW10000L6/ND/R
Effective luminous flux (lm): 9300
System power (W): 69
Color temperature (K): 6500
Optical system: TELXW
Length (mm): 1484
TELXW11000L4/ND
Effective luminous flux (lm): 10300
System power (W): 75
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW2000S3/ND
Effective luminous flux (lm): 2000
System power (W): 14
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 605
TELXW2500XM4/ND
Effective luminous flux (lm): 2400
System power (W): 18
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 750
TELXW3000M3/ND
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1186
TELXW3000M4/DALI
Effective luminous flux (lm): 3200
System power (W): 21
TELXW3000M4/ND
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW3000M4/ND/R
Effective luminous flux (lm): 3200
System power (W): 21
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW3500XM4/ND
Effective luminous flux (lm): 3600
System power (W): 27
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 750
TELXW4000M3/DALI
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1186
TELXW4000M3/ND
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1186
TELXW4000M3/ND/9005
Effective luminous flux (lm): 4100
System power (W): 27
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1186
TELXW4000M3/ND/R
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1186
TELXW4000M4/DALI
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW4000M4/ND
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW4000M4/ND/EU
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW4000M4/ND/P1
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW4000M4/ND/R
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW4000M5/ND
Effective luminous flux (lm): 3900
System power (W): 27
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1186
TELXW5000L3/DALI
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1484
TELXW5000L3/ND
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1484
TELXW5000L4/DALI
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW5000L4/DALI/R
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW5000L4/ND
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW5000L4/ND/P1
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW5000L4/ND/R
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW5000L5/DALI
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELXW5000L5/DALI/R
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 5700
Optical system: TELX
Length (mm): 1484
TELXW5000L5/ND
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1484
TELXW5000L5/ND/P1
Effective luminous flux (lm): 4900
System power (W): 34
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1484
TELXW5500M3/ND
Effective luminous flux (lm): 5450
System power (W): 42
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1186
TELXW5500M4/ND
Effective luminous flux (lm): 5450
System power (W): 42
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW5500M4/ND/90
Effective luminous flux (lm): 4600
System power (W): 42
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW5500M4/ND/R
Effective luminous flux (lm): 5450
System power (W): 42
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
TELXW5500M5/ND
Effective luminous flux (lm): 5450
System power (W): 42
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1186
TELXW7000L3/DALI
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1484
TELXW7000L3/ND
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1484
TELXW7000L3/ND/90/P
Effective luminous flux (lm): 5800
System power (W): 50
Color temperature (K): 3000
Optical system: TELXW
Length (mm): 1484
TELXW7000L4/DALI
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW7000L4/DALI/P1
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW7000L4/ND
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW7000L4/ND/EU
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW7000L4/ND/P1
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW7000L4/ND/R
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1484
TELXW7000L5/ND
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1484
TELXW7000L5/ND/P
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1484
TELXW7000L5/ND/P1
Effective luminous flux (lm): 6800
System power (W): 50
Color temperature (K): 5700
Optical system: TELXW
Length (mm): 1484
TELXW7000M4/ND
Effective luminous flux (lm): 7200
System power (W): 62
Color temperature (K): 4000
Optical system: TELXW
Length (mm): 1186
Show all versions
 Back to serie MODUS TELX

We are here to help

We'll advise you all, we have outstanding support.
Lighting calculations

Lighting calculations

Do you need to calculate the lighting?

LDT files

LDT files

Do you need LDT data for your project?

Product support

Product support

Do not know what kind of lighting is best for you?

Connection diagrams

Connection diagrams

Do not you know how to conect luminaires properly?

Contact
