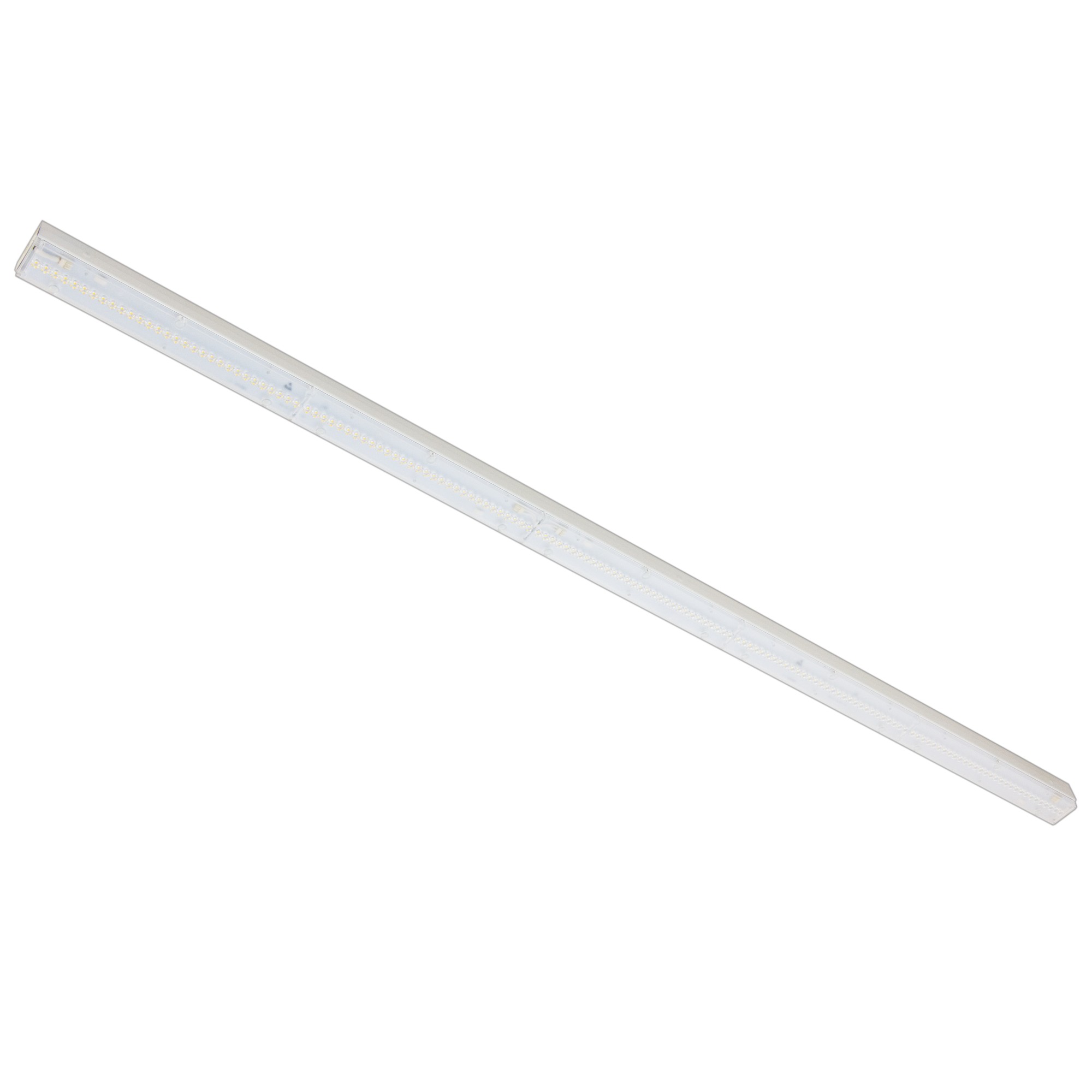

MODUS TOP4000, lenght 1415mm, LED 830, optic wide beam 60, cont assembly 3ph, endcaps entry
LED linear fitting with optics
Code: TOP4000L3CW/ND/P
EAN: 8596099135102
This product contains a light source with energy efficiency class D, C
Luminaire properties
| Product category: | Batten luminaire | Effective luminous flux (lm): | 3700 |
| System power (W): | 23 | Rated lifetime L80/B50 (h): | 80000 |
| Degree of protection (IP): | IP20 | Color housing: | White |
| Material: | Steel | Light source included: | Yes |
| Made in Czech republic: | Yes |
Light source
| Light source type: | LED | Color temperature (K): | 3000 |
| Color rendering index CRI: | 80-89 | Replaceability: | Replaceable light source by professional, replaceable ballast |
| Light source type: | 1990600183009 | Energy efficiency class: | D |
| Light source type: | 1990900183005 | Energy efficiency class: | C |
Optical system
| Optical system: | CW | Light distributor: | Refractor lens |
Dimensions
| Length (mm): | 1415 | Width (mm): | 46 |
| Height/depth (mm): | 46 | Weight (kg): | 2 |
Electrical values
| Protection class: | I | Voltage type: | AC |
| Type of control gear: | LED operating device current-controlled | Nominal voltage (V): | 220...240 |
| Control gear included: | Yes | Type of wiring: | Through wiring included |
| No dim function: | Yes |
LDT files >
