Product series MODUS UL

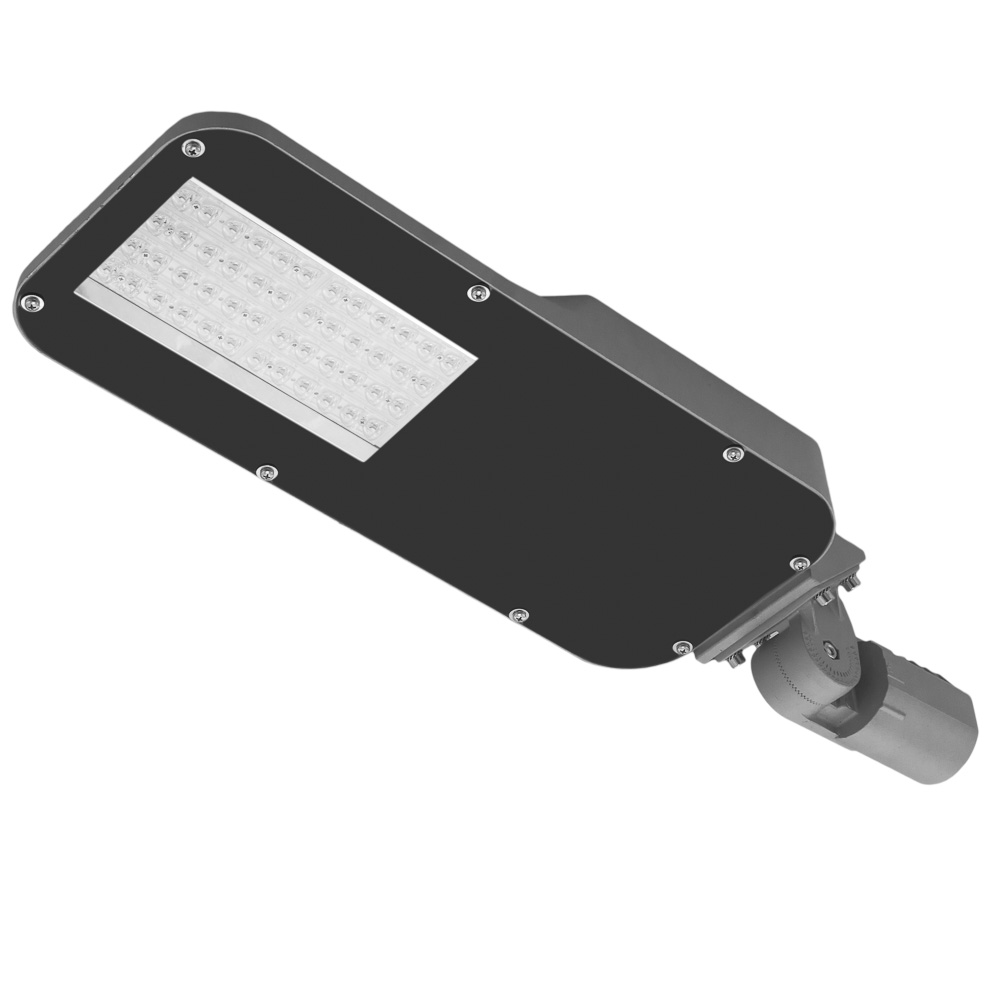

MODUS UL9000, AL body, LED 750, 3DIM
LED street light fitting
Code: UL9000V15/3DIM
EAN: 8595073711592
This product contains a light source with energy efficiency class C
Luminaire properties
| Product category: | Luminaire for streets and places | Effective luminous flux (lm): | 11200 | System power (W): | 87 | Luminaire efficacy (lm/W): | 129 |
| Rated lifetime L70/B50 (h): | 100000 | Degree of protection (IP): | IP65 | Mounting method: | Post-top/side-entry | Color housing: | Grey | Surface protection: | Powder coating |
| Material housing: | Aluminium | With connection cable: | Yes | Light source included: | Yes | Made in Czech republic: | Yes |
Light source
| Light source type: | LED | Color temperature (K): | 5000 | Color rendering index CRI: | 70-79 | Replaceability: | Removeable light source, replaceable ballast |
| Light source type: | 1990480175003 | Energy efficiency class: | C |
Optical system
| Optical system: | LENS | Material cover: | Glass transparent | Adjustable optics: | No |
Dimensions
| Length (mm): | 650 | Width (mm): | 240 | Height/depth (mm): | 71 | Cable length (m): | 0,2 |
| Suitable for top end size (mm): | 60 | Weight (kg): | 7 |
Electrical values
| Protection class: | I | Voltage type: | AC | Type of control gear: | LED operating device current-controlled | Nominal voltage (V): | 220...240 |
| Control gear included: | Yes | Type of wiring: | Ending | Dimming DALI: | Yes | Dimming LineSwitch: | Yes | MODUS SMART: | Astro Dim |
LoadingFilters
Effective luminous flux (lm)
System power (W)
Product name
Effective luminous flux (lm)
System power (W)
Color temperature (K)
Optical system
UL11500V13/3DIM
Effective luminous flux (lm): 12800
System power (W): 103
Color temperature (K): 3000
Optical system: LENS
UL11500V13/ND
Effective luminous flux (lm): 13100
System power (W): 103
Color temperature (K): 3000
Optical system: LENS
UL11500V14/ND
Effective luminous flux (lm): 13100
System power (W): 103
Color temperature (K): 4000
Optical system: LENS
UL11500V15/3DIM
Effective luminous flux (lm): 13200
System power (W): 103
Color temperature (K): 5000
Optical system: LENS
UL11500V15/3DIM/7016
Effective luminous flux (lm): 13200
System power (W): 103
Color temperature (K): 5000
Optical system: LENS
UL11500V15/ND
Effective luminous flux (lm): 13200
System power (W): 103
Color temperature (K): 5000
Optical system: LENS
UL14000V13/ND
Effective luminous flux (lm): 16200
System power (W): 144
Color temperature (K): 3000
Optical system: LENS
UL14000V14/3DIM
Effective luminous flux (lm): 16700
System power (W): 144
Color temperature (K): 4000
Optical system: LENS
UL14000V14/ND
Effective luminous flux (lm): 16550
System power (W): 144
Color temperature (K): 4000
Optical system: LENS
UL14000V15/3DIM
Effective luminous flux (lm): 16700
System power (W): 144
Color temperature (K): 5000
Optical system: LENS
UL14000V15/ND
Effective luminous flux (lm): 16700
System power (W): 144
Color temperature (K): 5000
Optical system: LENS
UL5000V14/ND
UL7500V13/ND
Effective luminous flux (lm): 7400
System power (W): 56
Color temperature (K): 3000
Optical system: LENS
UL7500V14/ND
Effective luminous flux (lm): 7400
System power (W): 56
Color temperature (K): 4000
Optical system: LENS
UL7500V15/3DIM
Effective luminous flux (lm): 7700
System power (W): 56
Color temperature (K): 5000
Optical system: LENS
UL7500V15/3DIM/7016
Effective luminous flux (lm): 7700
System power (W): 56
Color temperature (K): 5000
Optical system: LENS
UL7500V15/ND
Effective luminous flux (lm): 7700
System power (W): 56
Color temperature (K): 5000
Optical system: LENS
UL9000V12/3DIM
Effective luminous flux (lm): 10750
System power (W): 87
Color temperature (K): 2700
Optical system: LENS
UL9000V13/3DIM
Effective luminous flux (lm): 10860
System power (W): 87
Color temperature (K): 3000
Optical system: LENS
UL9000V13/ND
Effective luminous flux (lm): 11200
System power (W): 87
Color temperature (K): 3000
Optical system: LENS
UL9000V14/3DIM
Effective luminous flux (lm): 11080
System power (W): 87
Color temperature (K): 4000
Optical system: LENS
UL9000V14/ND
Effective luminous flux (lm): 11080
System power (W): 87
Color temperature (K): 4000
Optical system: LENS
UL9000V15/3DIM
Effective luminous flux (lm): 11200
System power (W): 87
Color temperature (K): 5000
Optical system: LENS
UL9000V15/ND
Effective luminous flux (lm): 11200
System power (W): 87
Color temperature (K): 5000
Optical system: LENS
